All-in-One Portable Emergency Light Tower Battery Powered Telescopic Lighting Tower for Construction Fire Rescue

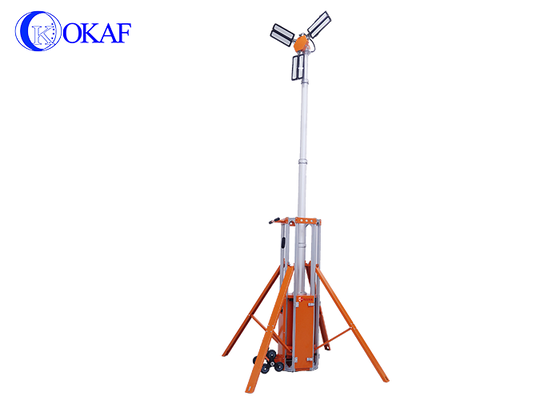

Large Image : All-in-One Portable Emergency Light Tower Battery Powered Telescopic Lighting Tower for Construction Fire Rescue

Product Details:

Place of Origin:	China
Brand Name:	Okaf
Certification:	CE
Model Number:	OK-BX04SJ-300W

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wood box
Delivery Time:	20~25 working days
Payment Terms:	T/T
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Product Name:	All-in-One Portable Emergency Light Tower Battery Powered Telescopic Lighting Tower For Construction Fire Rescue	Mast Type:	Pneumatic Telescopic Mast
Extended Height Of Light Tower:	4m	Retracted Height:	1.56m
Lighting Power:	300W	Battery Capacity:	3xDC12V 75Ah LFP Batteries Total 2700Wh
Battery Running Time:	9 To 45 Hours	Light Tower Weight:	100kg

PRODUCT OVERVIEW

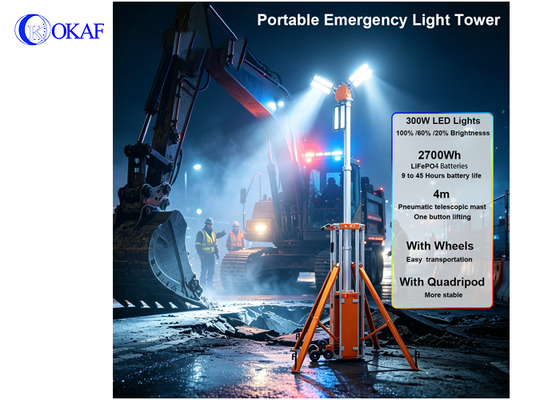

All-in-One Portable Emergency Light Tower

OK-SD04SJ-300W is a portable emergency lighting product with a built-in power supply system. It features three 100W adjustable lights on top, expandable with a surveillance camera, and three 75AH batteries at the bottom (total power 2700W), meeting the specific requirements for temporary emergency lighting and rapid deployment. It can be easily and quickly deployed to the required location during operation and disassembled at any time when the work is finished . It is suitable for use in flood control emergencies, disaster relief, power repair, fire fighting, construction sites , roads, outdoor camping, fishing, training, and other locations requiring temporary lighting.

ADVANTAGES

Advantages of OKAF Portable Emergency Mobile Light Tower

High integration : integrates mobile energy storage and mobile lighting into a single design;

High-power lighting: 3*100W LED lights, each with adjustable angle and 3 brightness levels; the entire light can be adjusted 90° and supports manual and remote control.

Ultra-long battery life : Built-in high-performance battery pack (12V 225 Ah, 3* 75 Ah), can last for 9 hours with a maximum lighting capacity of 300 watts, and more than 45 hours with a minimum brightness of 60 watts.

Lightweight and high-strength materials : Made of high-strength aluminum alloy and stainless steel, with a total weight of 100 kg , making it easier to move and suitable for temporary emergency outdoor operations.

Equipped with triangular wheels : makes going up and down stairs easier.

Push-pull design : can be transported by a single person.

All-weather, three-proof design : waterproof, dustproof, and drop-proof, adaptable to complex outdoor environments, ensuring stable operation of the equipment under extreme conditions.

Modular battery design : Three replaceable batteries, quick to install and remove, and a single battery can also work to meet flexible power supply needs . Each battery is equipped with a power display .

Double-fixation protection : The equipment is secured with a tripod and ground stakes to ensure stable operation in adverse weather conditions (such as strong winds).

Lighting methods: manual and remote control lighting:

Power : 300 watts, 3*100 watts. Brightness : 3 adjustable brightness levels (100%, 60%, 20%). Lighting Angle: Each lamp can rotate 180°, and the entire lamp can be adjusted 90°. Lighting control : manual and remote control; Luminous flux: 30,000 lumens. Lifespan: 100,000 hours;

Structure and Materials

Material : High-strength aluminum alloy + stainless steel. Light tower weight : 100kg for the whole machine. Folded dimensions : Closed height 1.56 meters. Unfolding height : Standard 4 meters (other heights can be customized). Top-mounted equipment: Can be equipped with flashing warning lights.

Battery and power supply

Battery capacity : DC12V 225 Ah (3 * 75 Ah). Battery type: Lithium iron phosphate battery. Battery running time : 300W brightness: 9 hours, 60% brightness : over 15 hours, 20% brightness : over 45 hours; Battery design : Three replaceable batteries that support quick installation and removal; the battery can also work independently . Output interface : Supports DC 12V output (24V output optional) ; Battery display : Supports real-time display of battery level and voltage ;

Fixation and Stability

Fixing method : Tripod + ground stake double fixation. Number of ground stakes : 3, to reinforce and prevent them from being knocked over by impacts or strong winds.

Portability

Equipped with triangular wheels, making it easier to go up and down stairs; push-pull design , allowing for single-person transport.

Environmental adaptability :

Tri-proof rating : waterproof, dustproof, and shockproof, suitable for all-weather field operations.

APPLICATIONS

Application scenarios of OKAF Mobile Emergency Light Tower

Outdoor lighting : Offers extended battery life, suitable for nighttime operations. Emergency response industry : Providing reliable power support during natural disasters or emergencies. Power emergency repair : Provide on-site lighting; Outdoor activities : Suitable for camping, adventure, and other scenarios, providing lighting and support for recording life . Power supply for surveillance cameras : Provides a stable power supply for surveillance cameras to ensure long-term monitoring.

TECHNICAL DATA

Model	OK-BX04SJ-300W
Lighting power	300 watts (3 * 100 watts)
Brightness	The brightness can be adjusted in 3 levels (100%, 60%, 20%)
Turn on lights	Manual and remote control
Luminous	30000lm
Luminaire lifespan	100,000 hours
Extended height	4m
Retracted height	1.56m
Lift way	Pneumatic
Extended width	1m
Top payload	20KG
Net weight	100KG
Battery	225AH(2700W )
Type of battery	LFP battery
Number of batteries	3*75AH
Battery replacement	Support
Output power	40A
Charger	12.6V40A(11hours)
Output	DC12V/DC24V
Material	Aluminum alloy + Stainless steel
Working temperature	-20-+65℃
