Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Height: | 3-18M |
|---|---|---|---|
| Mounted: | On The Ground Or Vehicle | Lifting Method: | Manual |
| Color: | Bronze | Warranty: | 1 Year |
| High Light: | alloy aluminium telescopic mast pole,manual telescopic mast pole |
||
Specification

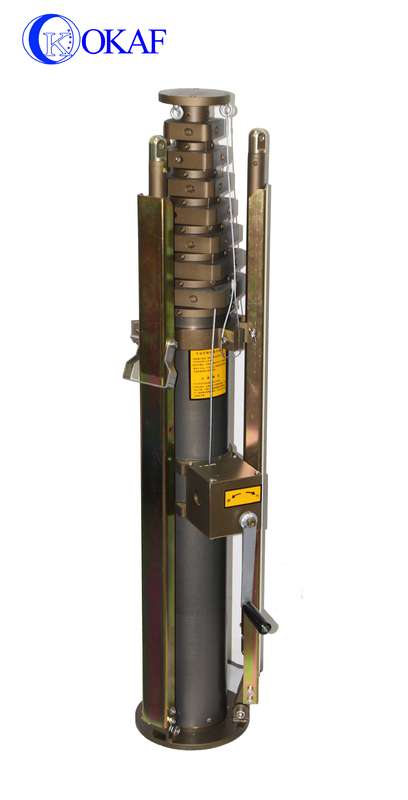

Manual telescopic mast is also a rack height equipment carrier, suitable for car, ship and land. It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely. After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely.
OKAF manual telescopic mast is made of high-strength aluminum alloy, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on. It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting, etc.
The portable and reliable telescoping masts can be mounted on trailer or vehicle. Electric motor driven telescopic masts with locking collars could keep the equipment at a fixed height for a long time even without air pressure.
Application of Electric Telescopic Mast
1. Radio installation Surveying
2. Temporary communications.
3. Emergency services (Light tower for fire fighting rescue)
4. Mobile surveillance ( PTZ camera for law forensics)
5. Semi-permanent Installations for outdoor Events(Military or patrol surveillance)
6. Construction site surveillance(construction sites monitoring)
7.Wi-Fi antennas.
Technical data
| Model | OK-SD20SJ |
| Material | High strength aluminum alloy |
| Extended height | 20 m |
| Retracted height | 3.1 m |
| Maximum diameter | 160 mm |
| Minimum diameter | 40 mm |
| Top payload | 5 kg |
| Wind power | Level 8/ or 19m /SEC |
| Number of sections | 8 |
| Torsion precision | ≤±2º |
| Installation | Ground mounted with tripod |
| Low temperature storage | -55° |
| Low temperature work | -40° |
| High temperature storage | 70° |
| High temperature work | 55° |
| Humidity | Relative humidity 90%(temperature 25°) |
| Rain | 6mm/min continuous 1h |
| Rated load | Lifting ≤120N |
| Lifting speed | Average speed 4m/min |
| Safety | Self-locking at any height |
| Accessories | Guy wires, ground anchors |
