Custom Height DC Powered Motorized Telescopic Mast Vehicle Trailer Robot Mounted Square Electric Telescopic Mast

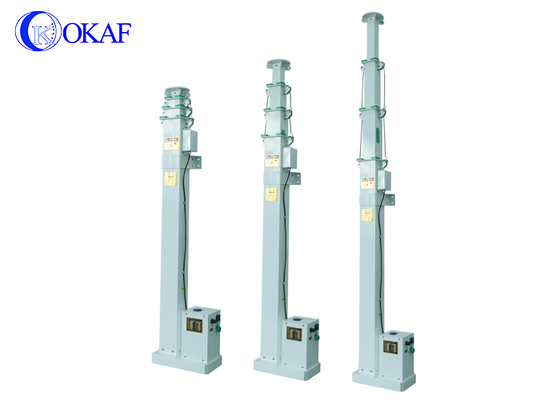

Large Image : Custom Height DC Powered Motorized Telescopic Mast Vehicle Trailer Robot Mounted Square Electric Telescopic Mast

Product Details:

Place of Origin:	China
Brand Name:	Okaf
Certification:	CE
Model Number:	OK-DD06SJ-SQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negociate
Packaging Details:	Wood box
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

PRODUCT OVERVIEW

Square Electric Telescopic Mast

Telescopic mast is a rack height equipment carrier, suitable for car, ship and land. It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely. After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely. OKAF square telescopic mast is made of steel, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on. It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting, etc. The portable and reliable telescoping masts can be mounted on trailer or vehicle. Electric motor driven telescopic masts with locking collars could keep the equipment at a fixed height for a long time even without air pressure.

APPLICATIONS

Applications of telescopic mast

1.Radio installation Surveying

2. Temporary communications.

3. Emergency services (Light tower for fire fighting rescue)

4. Mobile surveillance ( PTZ camera for law forensics)

5. Semi-permanent Installations for outdoor Events(patrol surveillance)

6. Construction site surveillance(construction sites monitoring)

7.Anti drone antennas.

TECHNICAL DATA

Model	OK-DD06SJ-SQ
Material	Steel
Extended height	6 m
Retracted height	1.8 m
Base tube size	120 x 120 mm
Fourth tube size	100 x 100 mm
Third tube size	80x80mm
Second tube size	60x60mm
Top tube size	50mm round tube
Maximum top payload	50kg
Wind power	Level 8/ or 19m /SEC
Number of sections	5
Power supply	DC12V
Installation	Vehicle/ Trailer / mounted
Low temperature storage	-55℃
Low temperature work	-20℃
High temperature storage	70℃
High temperature work	55℃
Humidity	Relative humidity 90%(temperature 25°)
Rain	6mm/min continuous 1h
Rated load	Lifting ≤120N
Lifting speed	Average speed 4m/min
Safety	Self-locking at any height
Accessories	Guy wires, ground anchors
