Product Details:
Payment & Shipping Terms:
|

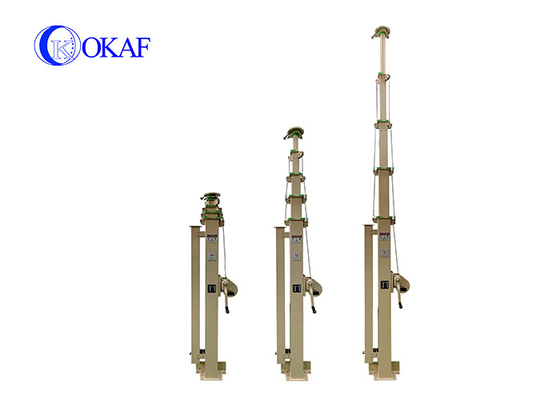

| Product Name: | 5m 6m 7m 8m 50KG Payload Weight Steel Telescopic Mast Manual Winch Hand Crank Mast | Material: | Steel |
|---|---|---|---|
| Extended Height: | 6m | Retracted Height: | 1.74m |
| Base Tube Size: | 120x120mm | Fourth Tube Size: | 100x100mm |
| Third Tube Size: | 80 X 80mm | Second Tube Size: | 60x60mm |
| Top Tube Size: | Top Tube Size 50mm Round Tube | Payload Weight: | 50KG |
Specification
Manual telescopic mast is also a rack height equipment carrier, suitable for car, ship and land. It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely. After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely.
OKAF square telescopic mast is made of steel, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on. It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting, etc.
The portable and reliable telescoping masts can be mounted on trailer or vehicle. Electric motor driven telescopic masts with locking collars could keep the equipment at a fixed height for a long time even without air pressure.
Application of Electric Telescopic Mast
1. Radio installation Surveying
2. Temporary communications.
3. Emergency services (Light tower for fire fighting rescue)
4. Mobile surveillance ( PTZ camera for law forensics)
5. Semi-permanent Installations for outdoor Events(Military or patrol surveillance)
6. Construction site surveillance(construction sites monitoring)
7.Wi-Fi antennas.
Technical data
| Model | OK-SD06SJ-SQ |
| Material | Steel |
| Extended height | 6 m |
| Retracted height | 1.74 m |
| Base tube size | 120x120mm |
| Fourth tube size | 100x100mm |
| Third tube size | 80 x 80mm |
| Second tube size | 60x60mm |
| Top tube size | 50mm round tube |
| Maximum top payload | 50kg |
| Wind power | Level 8/ or 19m /SEC |
| Number of sections | 5 |
| Installation | fixed on ground pile via screws . Trailer /vehicle mounted. |
| Low temperature storage | -55℃ |
| Low temperature work | -40℃ |
| High temperature storage | 70℃ |
| High temperature work | 55℃ |
| Humidity | Relative humidity 90%(temperature 25°) |
| Rain | 6mm/min continuous 1h |
| Rated load | Lifting ≤120N |
| Lifting speed | Average speed 4m/min |
| Safety | Self-locking at any height |
| Accessories | Guy wires |
