Real-Time Online Environmental Monitoring 5G AI Security Patrol Robot

Real-Time Online Environmental Monitoring 5G AI Security Patrol Robot
Real-Time Online Environmental Monitoring 5G AI Security Patrol Robot Real-Time Online Environmental Monitoring 5G AI Security Patrol Robot

Large Image :  Real-Time Online Environmental Monitoring 5G AI Security Patrol Robot

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE /ROHS /FCC
Model Number: OK-RB02-HJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Wood box
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, L/C, MoneyGram, Paypal
Supply Ability: 100 units / month
Detailed Product Description
Product Name: Real-Time Online Environmental Monitoring 5G AI Security Patrol Robot Function: Real-Time Online Environmental Monitoring / Real Time Remote Viewing
Max Climbing Ability: 30 Degree Temperature And Humidity Monitoring: Support
Air Quality Monitoring: CO2, PM2.5, PM10, Fog Optional Hazardous Gases Monitoring: H2S, H2, CO, NH3 Customize
Sensor Optional: Industrial Online Wind Speed Sensor / Wind Direction Sensor Power Supply: Battery

Real-Time Online Environmental Monitoring 5G AI Security Patrol Robot

Product Description


OKA intelligent security robot has common functions such as High definition surveillance, video analysis, face recognition, license plate recognition, environmental monitoring, encrypted communication, etc. The robot will assist front line security personnel to work in daily patrol.The central mission control system and backstage control system can also assist the police in completing the linkage of personnel. it can meet the inspection, security, and the same work in various complex environments such as machine rooms, electric power, logistics centers, factories, airports, and so on.


Features and advantages of OKAF 5G + AI Intelligent Security Robot (Wheeled):

Ø Expandable environmental detection: Equipped with various sensors to monitor air quality (such as CO2, PM2.5, PM10, etc.) Gas detection instruments.

Ø The maximum climbing ability is not less than 30 ° ;

Ø U-turn function in place;

Ø Support handheld remote control to control the robot to walk, the distance is 200-300 meters , support CAN/ serial port ;

Ø Support for direct name calling when unsafe behaviour is detected + unregulated behaviour;

Ø Adapt to a variety of road surfaces: adapt to a variety of ground environments, with climbing ability, IP 65 protection level, and can run for a long time in high cold and high temperature environments ;

Ø Support intelligent detection functions such as regional intrusion detection, cross-border detection, and motion detection

Ø Powerful battery life, once charged, the system can stand by for 6-8 hours (according to the actual battery size)

Ø Backup charging mode to achieve continuous and uninterrupted work ;

Ø Support 4G multi-card fusion transmission, real-time smooth images

Ø Support dual-platform access;

Ø Dual TF card storage, single card can support up to 512G;

Ø A variety of anti-theft measures, built-in GPS positioning system ;

Ø 360-degree omnidirectional pan/tilt, supports 3D centered zoom function;

Ø There are metal handles on both sides of the robot, which is easy to take and carry

Ø According to different configurations , the automatic patrol and remote control patrol modes can be customized , and the inspection tasks can be completed automatically, and manual irregular patrol can be realized by remote control.



okaf Online Environmental Monitoring 5G AI Security Robot are wideply applied to Electric power, smart construction sites, industrial parks, shopping malls, public security, fire protection, urban management, communities, etc. need mobile monitoring applications.

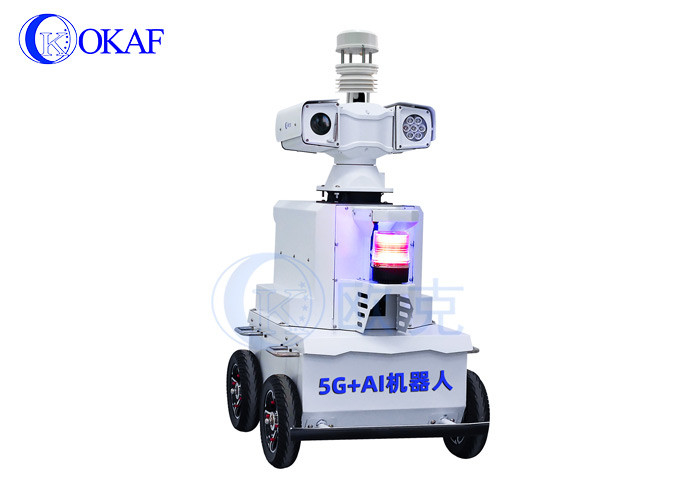

Real-Time Online Environmental Monitoring 5G AI Security Patrol Robot 0

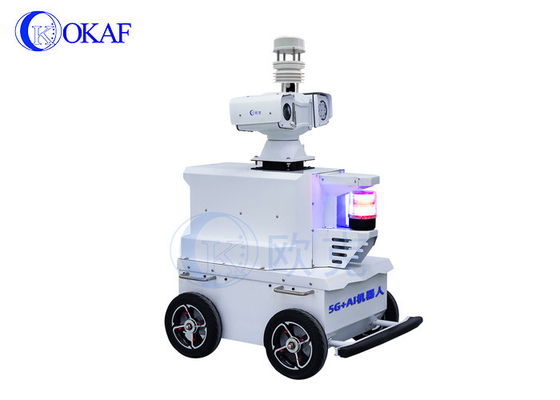

Real-Time Online Environmental Monitoring 5G AI Security Patrol Robot 1

Technical data

Day camera clarity Industrial online noise sensor
frame rate 25/30 fps
audio and video compression H.264/H.265
multiple 20X /30X (optional)
spinning speed horizontal preset speed
Horizontal up and down angle Pan: 360°; Tilt:+90°~-90°
omnidirectional camera 1920×1080P
Environmental monitoring Temperature and humidity Support
Air quality (optional) CO2 , PM2.5,PM10 , smog etc
Hazardous gas (optional) H2S, H2, CO, NH3 etc are customized
Sensor (optional) Industrial online wind speed sensor
Industrial online wind direction sensor
Industrial online noise sensor
Industrial online air temperature and humidity sensor
Host parameters Network Interface RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
AI intelligent function Support face detection, face recognition, license plate recognition and detection of helmets , reflective clothing, smoking and area intrusion
audio mode External active microphone or line input, line output
dual stream support
video output BNC and RJ45 dual output
video input 4-way network 1080P, aviation interface,
video output 1 HDMI output
preview function Single-channel, 4-screen splicing preview, support manual/event trigger full-screen display function
Video resolution Support 1080P, 720P, D1, HD1, CIF optional, maximum support 4 channels 1080P.
audio input 4-way, aviation head interface
Audio output 1 way
Compression format G.711 compression format, rate 8KB/s
Alarm Output 2-way switch output, linkage sound and light alarm, oil cut off and power off, etc.
Platform access Support access to dual-platform viewing
GB28181, police dynamic evidence collection system platform, mobile monitoring AI management platform
Wireless transmission 4G/5G high-speed transmission, ultra-high speed, ultra-low latency, and ultra-large connection
position Support built-in GPS / BD module, can report to the ministry standard platform
storage Support large capacity 512G
Input voltage DC: +8V ~ +38V
Robot Chassis parameters total measurement 800 mm (length) * 570 mm (width) * 98 mm (height)
height above ground 80mm
drive mode full-time four-wheel drive
Steering Omni-directional rotation , U-turn in place
wheel diameter 240mm
Total Weight 75 kg (including battery)
Battery ternary battery 48V 30Ah
operation hours Not less than 8 H (at ambient temperature 25°C)
sports performance Maximum horizontal running speed: not less than 1m/s
Positioning accuracy: not greater than 10mm
Braking performance: Braking distance not greater than 0.5m at a speed of 1m/s
Maximum wading height: 10cm
Movement Remote control support / CAN/ serial port control
control distance 200-300 meters
climbing angle The maximum climbing ability is not less than 30 °
Obstacle Clearance The maximum obstacle-surpassing ability is not less than 50mm
Turning radius The minimum turning radius is not greater than its own length
working environment Working environment relative humidity: 10%~90% (no condensation)
Working environment temperature: −20℃~+55℃
storage environment Relative humidity of storage environment: 5% to 95% (no condensation)
Storage ambient temperature: −20°C to +60°C
Protection grade IP 65
Alarm RGB three-color light alarm, intelligent voice alarm
