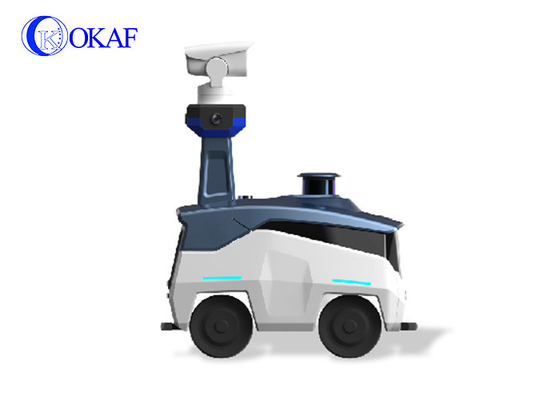

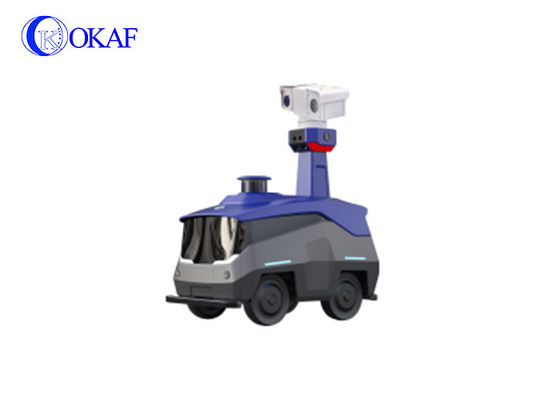

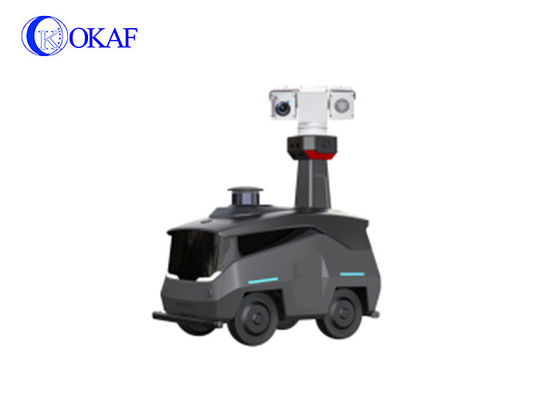

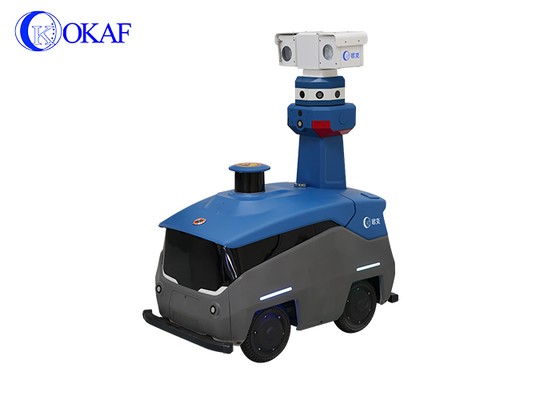

Security Patrol Automatic Recharging Intelligent Robot for Large Area Factory School Gate Guard

Security Patrol Automatic Recharging Intelligent Robot for Large Area Factory School Gate Guard
Security Patrol Automatic Recharging Intelligent Robot for Large Area Factory School Gate Guard

Large Image :  Security Patrol Automatic Recharging Intelligent Robot for Large Area Factory School Gate Guard

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE/ROHS
Model Number: OK-RB03
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Wood box
Delivery Time: 10~20 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100 / month
Detailed Product Description
Product Name: Security Patrol Automatic Recharging Intelligent Robot Operating Control: Remote Control + Manual Remote Control
Intelligent Interaction: Two-way Audio,voice Broadcast,Smart Prompt Power Management: Automatic Charging +Manual Charging + Quick Power Change
Drive Mode: Dual Wheel Independent Drive Navigation Positioning Mode: Laser SLAM

Large Area Factory School Gate Guard Security Patrol Automatic Recharging Intelligent Robot

Product Description

OKAF autonomous patrol security intelligent robot mainly used in residential areas, office buildings, villas, science and technology parks and other indoor and outdoor scenes. The robot can cooperate with the property security and management personnel to carry out indoor and outdoor 24-hour patrol duty, which can effectively improve the security quality of the park and the image of science and technology, and help the park to upgrade the intelligence and digitalisation. Through the intelligent property management platform, the robot can be interconnected with the existing technical defence equipment to achieve intelligent linkage, autonomous elevator, remote disposal and other functions, reducing operating costs and enhancing management efficiency.


Function list:

Operating control :

1. Remote control through the management of the background remote control interface, including robot movement, stop, tilt up and down, horizontal rotation, lifting mechanism lifting, alarm light switch, siren switch.

2. Through the hand-held remote control robot walking, including forward, backward, turning in place and other walking functions


intelligent interaction

1. Two-way audio : Open the voice call switch through the background management platform, you can call the robot local through the microphone, to achieve two-way voice calls, for patrol inspection special circumstances, can achieve remote shout alarm, drive away

2. voice broadcast : Publicity broadcast: okaf  unmanned driving robot system supports the robot to conduct voice broadcast propaganda and notification notices in a specific period (configurable) or a specific area (configurable), such as playing "water and power cut notice", "fire drill notice" and so on. Audio playback: The robot system supports the playback of audio files at a specific time or in a specific area.

3. Smart prompt: okaf auto patrol security robot system has intelligent voice functions according to its own running state, such as: "I'm going to charge", "I'm performing a task, please make way".


Autonomous patrol

1.  Patrol planning :  The management background supports robot inspection task configuration, inspection route formulation, inspection site presetting, inspection plan formulation, and voice broadcast content configuration.

2. Autonomous patrol: The auto patrol robot system supports the mode of fixed time and fixed period to realize fully autonomous patrol/inspection when the robot is unattended, and generates inspection reports after completing a single patrol task.

3. One-click return: Managers can select one-click return to the charging pile in the background management interface, the robot ends the current task, and immediately returns to the charging pile for charging.

4. One-click reach:  The security smart robot management system can reach any point in the map with one click and perform the patrol of the point.

5. Walking obstacle avoidance: okaf auto patrol robot can stop or circumnavigate obstacles in autonomous operation, and different obstacle avoidance modes can be configured on different inspection routes.

6.Image capture: Our security robot system supports the automatic or manual state of the robot to click the capture picture, the capture picture automatically save, support manual capture and automatic capture two functions.


Power management

1. Automatic charging:  OKAF autonomous patrol robot system supports low power automatic recharge.

2. Manual charging:  The Unmanned driving robot supports manual charging.

3. Quick power change : Our intelligent security patrol robot supports fast battery replacement, combined with fast charging function, to meet the user more spirit.



 operation step.png



 Robot RMS system.png





Robots can be arranged in any location for control duty, instead of security guards to complete temporary duty tasks, such as construction site order maintenance, danger alert, gate guard, temporary equipment stacking guards and so on. Solve the problems of manual guarding occupying manpower, unable to guard for a long time, unable to record back, unable to identify personnel identity information.






Technical data

Parameter class

Parameter item

parameter configuration

tractor parameter

Overall size


Overall quality


Ptz lift height


chassis clearance


installed power


Typical power consumption

≤150W(Robot autonomous walking on flat road)

Hub size


drive mode

Dual wheel independent drive

Steering model

Four wheel independent steering


Four-wheel independent suspension

heat-dissipating method

Air cooling heat dissipation

level of protection

Machine IP55

performance parameter

Maximum obstacle height

Vertical 40mm

Maximum Angle of climb


Maximum ditch width


Maximum short-term fording depth


Remote control maximum speed


minimum turning radius


Turning around own center)

brake stopping distance

Less than 0.5m (0.8m/s travel speed)

navigation parameter

Navigation positioning mode

Laser SLAM

Obstacle avoidance mode

Laser, ultrasonic, infrared, physical collision

Maximum speed of autonomous navigation


Minimum pass width size


Minimum right-angle channel size


Built-up area

1000square meter

positional accuracy


Interaction parameter

interactive mode

Omnidirectional pickup


Remote intercom

Acousto-optic system

Status light, outline light

Blue and red flashing lights

environmental monitoring


temperature monitoring


Range: -20℃ to 80℃

Accuracy: ±0.2℃

humidity monitoring


Range: 0-100%RH

Accuracy: 2%RH

video surveillance

Ptz type

T-head (standard)

surveillance camera

Resolution: not less than 1920 × 1080

Night fill (white light)

Power supply parameter

battery capacity


cruising power


charging time

≤2h (20%~90%)

charge mode

Automatic recharge/manual charge

battery replacement

Quick power change

communication mode

communication mode


Operating environment requirements

Operating surface type

Interior/exterior, hardened flat ground

operating ambient temperature



Working environment humidity


applicable scene


Exhibition hall, theater, airport, station, office building, etc


Property, airport, station, public security, parks, scenic spots, etc
