High-Performance All-Terrain Robot Heavy-Duty Industrial Robotics Smart Mobility Solution Tracked Robot

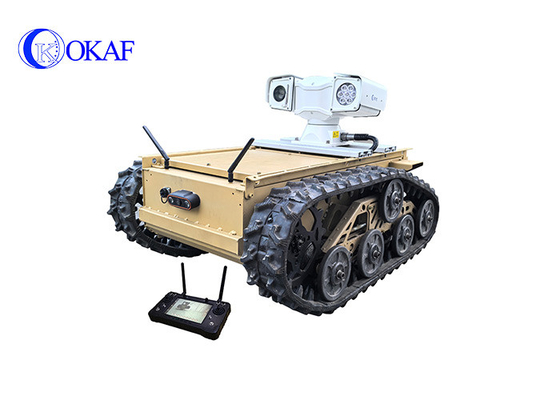

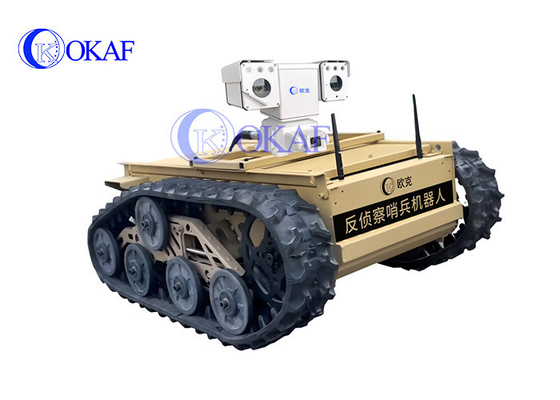

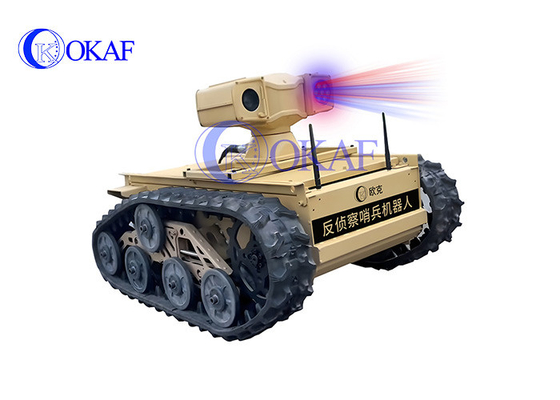

Large Image : High-Performance All-Terrain Robot Heavy-Duty Industrial Robotics Smart Mobility Solution Tracked Robot

Product Details:

Place of Origin:	China
Brand Name:	OKAF
Certification:	CE/ROHS
Model Number:	OK-RM01LD

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiated
Packaging Details:	Wood box
Delivery Time:	15~25 working days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Robot Chassis:	Robot Tank Chassis / Tracked Chassis Robot	Robot Chassis Dimension:	1050800450mm
Maximum Load Of Robot Chassis:	50KG	Robot Drive Motor:	48V 800W Dual Motor Power
Robot Climbing Angle:	≤30°	Robot Tire:	Rubber Track (with Steel Core) Belt Width 100mm
Robot Walk:	Wireless Remote Control, Control Distance Up To 300m	Robot Camera:	4G Intelligent AI Smart PTZ Camera

4G AI Tracked robot

OKAF 4G+ AI mobile sentinel security robot has common functions such as high-definition monitoring, tracked chassis, remote control terminal, encrypted communication, and all-terrain passability, which assists front-line security and sentinel personnel in daily patrol work. The robot's unique central task control system and background control system can also assist sentinels in completing personnel linkage. Equipped with all-round high-definition cameras and high-definition photography, it can realize remote and local terminal image monitoring, rapid capture, night vision photography and other functions; in special scenarios, it can be used as a personnel identification system to detect blacklist personnel and alarm, or whitelist personnel and early warning, and the background statistics can be compiled into reports. At the same time, the intelligent robot has practical functions such as industrial IP65 waterproof and abnormal alarm. With 4G networking communication, high speed and low latency, dedicated network and high security, it can meet the inspection, security, alarm and other tasks in various complex environments such as counter-reconnaissance, smart construction sites, field training, electricity, scientific research and teaching, airports, etc.

Features and advantages of OKAF Tracked robot

● Adapt to various road surfaces: Adapt to various ground environments, have climbing ability, IP65 protection level, and can operate for a long time in high-cold and high-temperature environments.

● Maximum climbing ability is not less than 30°.

● U-turn function.

● Support handheld remote control to control the robot to walk, distance 200-300 meters.

● Also supports CAN/serial port control.

● Support face detection, face recognition, and regional intrusion detection alarm detection functions.

● Supports calling out names directly when unsafe behaviors are detected + unregulated behaviors.

● Supports local sound and light alarms when fireworks and unsafe behaviors are detected.

● Supports intelligent detection functions such as regional intrusion detection, cross-border detection, and motion detection (non-standard configuration).

● Strong battery life: once charged, the system can be on standby for 6-8 hours (depending on the actual battery size).

● Standby charging mode for continuous and uninterrupted operation.

● Support 4G multi- sim card fusion transmission, real-time and smooth images.

● Support dual platform access, support OKAF mobile AI forensics platform and GB28181 transmission.

● Dual TF card storage, dual TF card storage, single card can support up to 512G.

● Multiple anti-theft measures, built-in GPS positioning system.

● 1 pcs 2MP fixed-focus camera, 1 pcs 2MP 23x optical zoom starlight-level HD camera.

● 360-degree omnidirectional pan/tilt, supports 3D center zoom function.

● Supports private platform deployment with higher confidentiality level.

● Support 3-way IO alarm output.

● Expandable thermal imaging, speaker, laser distance measurement, strong light drive away (non-standard, need customized).

● Expandable environmental detection function: equipped with various sensors to monitor air quality (such as CO2, PM2.5, PM10, etc.) and dangerous and harmful gases (such as H2S, H2, CO, NH3, etc.) in real time, and various gas detection instruments can be loaded according to customer needs. (non-standard,need customized).

Applications of security tracked robot

Firefighting, public security, electric power, smart construction sites, industrial parks, shopping malls, urban management, communities and other places that require mobile monitoring.

TECHNICAL DATA

PTZ Daylight camera	Resolution	1920×1080P
	Frame rate	25/30 fps
	Audio and video compression	H.264/H.265
	Optical zoom	23x optical zoom
	Rotation speed	Pan speed: 120°/s, Tilt speed: 60°/S
	Rotation range	Pan range: 360°, Tilt range: ＋90°～－90°
	Night vision	IR night vision 100m
AI Box	Network Interface	RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
	AI function	Supports face detection, face recognition, helmet detection, reflective clothing detection, smoking detection, area intrusion detection, etc.
	Audio Mode	External active microphone or linear input, linear output
	Network Protocol	IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP
	Dual stream	Support
	Video input	4 way IP 1080P video,Aviation connector interface
	Video output	1 way HDMI output
	Preview Features	Single channel, 4-screen splicing preview, support manual/event-triggered full-screen display function
	Video resolution	Support 1080P,720P,D1,HD1, CIF optional, Supports up to 4 channels of 1080P.
	Audio Input	4 way,Aviation connector interface
	Audio output	1 way
	Compression format	G.711 compression format, rate 8KB/s
	Alarm output	2-way switch output, linked to sound and light alarm, oil and power failure, etc.
	Platform access	Support dual-platform viewing
	Platform access	GB28181, OKAF Police dynamic evidence collection system platform, mobile monitoring AI management platform
	Wireless transmission	4G/5G high-speed transmission, ultra-high speed, ultra-low latency, ultra-large connection
	Position	Supports built-in GPS / BD module, can be reported to the departmental standard platform
	Storage	Maximum support TF card 512G
Robot chassis	Dimension	1050800450mm
	Weight	80KG
	Maximum load	＜50kg
	Drive motor	48V 800W Dual motor power
	Battery	Lithium battery DC48V 40Ah, protect 100A
	Running time	2 hours
	Climbing angle	≤30°
	Tire	Rubber track (with steel core) belt width 100mm
	Control mode	Wireless remote control, control distance up to 300m
	Working temperature	−20℃～+60℃
	Protection grade	IP65
