Intelligence HD AI Camera Security Quadruped Robot Dog

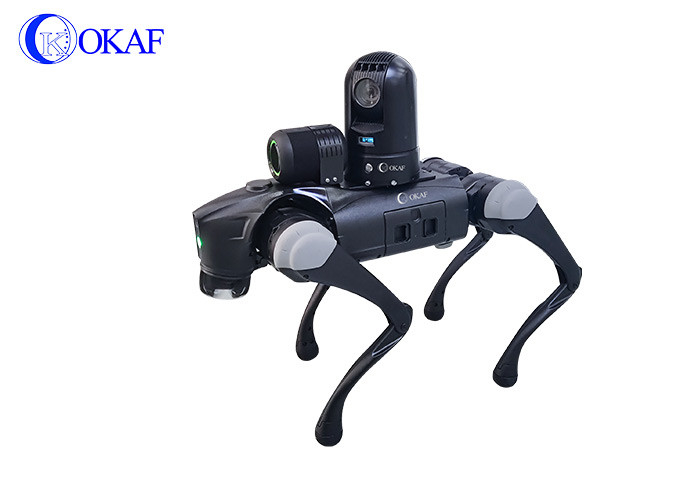

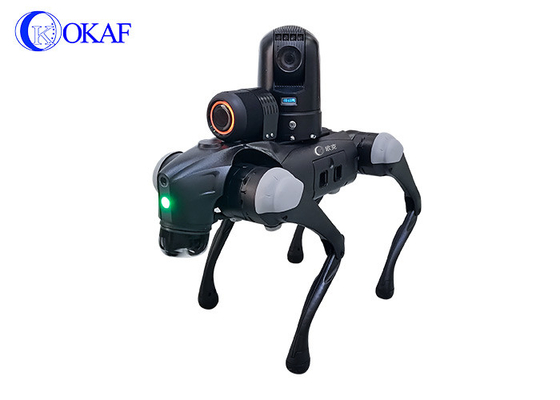

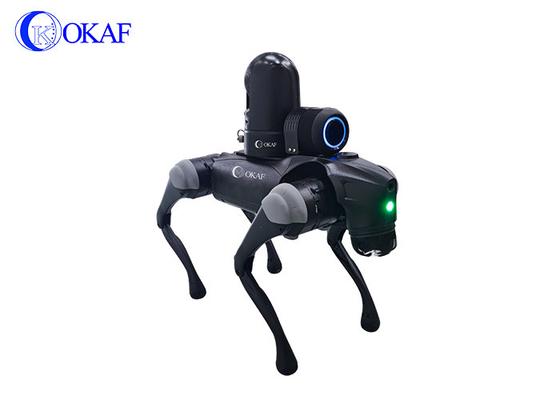

Large Image : Intelligence HD AI Camera Security Quadruped Robot Dog

Product Details:

Place of Origin:	China
Brand Name:	OKAF
Certification:	CE/ROHS
Model Number:	OK-Go2-4GAI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Wood box
Delivery Time:	10~15 working days
Payment Terms:	T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability:	100 units / month

Contact Now

Detailed Product Description

Security Robot Dog Obstacle Avoidance:	4D LiDAR L1 ,minimum Detection Range As Low As 0.05m	Robot Dog Function 1:	Features An Intelligent Companion System
Robot Dog Function 2:	Supports Voice Interaction And Command Functions	Robot Dog Function 3:	Supports Voice Interaction And Command Functions
AI HD Camera Function 1:	Face Detection/ Recognition /safety Helmet Detection/smoking Detection	AI HD Camera Function 2:	Perimeter Protection /Motion Detection, Rea Intrusion, Line Crossing
Robot Dog Walk Speed:	Fastest Running Industrial-grade Quadruped Robot At 5m/s.	Robot Dog Walk Control:	Supports Wireless Remote Control Up To 50 Meters.

PRODUCT OVERVIEW

AI surveillance camera security robot dog

OK-Go2-4G is a newly upgraded interactive bionic quadruped robot equipped with an intelligent AI smart surveillance camera, which can realize local control or follow walking to the required location. capturing and transmitting real-time on-site images to local mobile devices and remote command centers. This enables coordinated local and remote command and dispatch. The robot features 12 degrees of freedom, composed of 12 precision aluminum alloy joint motors. Utilizing force control technology, it achieves combined force and position control for each joint, ensuring exceptional motion performance for the entire system. The body is constructed with aluminum alloy and high-strength engineering plastic, significantly enhancing the reliability of the robotic dog. Its maximum running speed can reach 5 m/s (as measured in a laboratory environment). Equipped with a 4D LiDAR L1, it provides a 360°×90° hemispherical ultra-wide-angle perception capability, enabling the OK-Go2-4G to achieve full coverage without blind spots. The surveillance camera system supports 360-degree continuous rotation, a vertical range of 120 degrees, 2MP HD resolution, and 20x optical zoom. In terms of structure, motion performance, and environmental perception, the robot is at the forefront of both domestic and international standards.

ADVANTAGES

Advantages of OKAF Security robot dog

● The 4D LiDAR L1 offers a 360°×90° hemispherical ultra-wide-angle perception capability with a minimum detection range as low as 0.05m.

● Supports voice interaction and command functions with a built-in voice recognition module.

● Joint torque peak value is 45N·m.

● Supports wireless remote control up to 50 meters.

● Features an intelligent companion system (AIR not supported).

● Battery capacity is 8000mAh, with an optional 15000mAh upgrade, providing up to 2 hours of operation.

● Fastest running industrial-grade quadruped robot at 5m/s.

● All-rounded to cope with a variety of environments. Excellent terrain adaptability to ensure stable travel on slippery or uneven surfaces. ● Climbing stairs as if they were flat.Excellent sustained stair climbing, effortlessly tackling steps. Remains extremely stable and balanced when climbing.

● With 2MP 20x optical zoom HD AI PTZ camera,IR night vision up to 60m.

● The 360-degree PTZ supports remote 3D mouse-centered zoom functionality.

● Support 4G multi-card fusion transmission, real-time and smooth images.

● Dual TF Card Storage: Supports dual TF cards with a maximum capacity of 512GB per card.

● Integrated OLED Display: Displays real-time status, including location, 4G signal, WiFi, and battery levels.

● Dual Platform Access: Compatible with OKAF Mobile AI Forensic Platform and GB28181-2022 standard.

● Multiple Intercom Modes: Supports built-in MIC and speaker, external handheld MIC, and Bluetooth connections.

● Beidou Positioning: Built-in antenna for precise location tracking.

● Advanced Detection Features: Includes face detection, face recognition, license plate recognition, reflective vest detection, mask detection, smoking detection, and helmet detection.

● Behavioral Alerts: Can directly call out names and non-compliant actions upon detecting unsafe behavior.

● Event-Only Transmission: Supports transmitting events without images, saving data and enabling faster event handling.

● AI Event Statistics: Exports data in Excel format for statistical analysis.

● Built-in WiFi: Allows video preview via mobile phones or tablets.

● AI Surveillance Camera built-in high-capacity lithium battery, providing over 6 hours of continuous operation.

APPLICATION

Applications of security robot dog

Security robot dogs are increasingly being used in various applications to enhance security and safety. OKAF security robotic systems, equipped with advanced AI camera or sensors, provide a unique and effective solution for many industries. Here are some key applications:

1. Patrol and Surveillance : robot dogs can be operated remotely to provide live video feeds to security personnel, increasing surveillance without the need for human presence in high-risk areas.

2. Search and Rescue : robot dogs can navigate hazardous terrain and search for survivors. They are especially useful in collapsed buildings, dense forests, or areas where human rescuers might face danger.

3. Perimeter Security : robot dogs are integrated with AI systems that help in recognizing specific threats, such as unauthorized personnel, providing early alerts to security teams when an intruder is detected.

4. Crowd Control : robot dogs can help security teams manage crowds by monitoring behavior and identifying any unusual activities. OKAF security robot dogs are built-in speakers, providing instructions, alerts, or warnings in real time.

5. Inspection and Monitoring of Infrastructure: In hazardous environments, robot dogs can help detect dangerous gases or other environmental hazards, preventing human workers from exposure.

6.Environment Data Collection and Reporting: Robot dogs equipped with various sensors can collect data on environmental factors such as temperature, humidity, and air quality, which is essential for security monitoring in areas like warehouses, factories, or research labs.

TECHNICAL DATA

AI surveillance camera optional

Model	OK-CQ40-4G-AI	OK-CQ40-4G
AI functions	Supports face detection, face recognition, helmet detection,Jacket detection, mask detection and area intrusion detection	No AI functions
Access Platform	OKAF AI platform, CMSV6, GB28181	CMSV6 and GB28181
Dual platform access	Support	Single platform
AI event statistics and platform alarms	Support	Not support
Camera	2MP 1920*1080, 20X optical zoom
IR night vision	60m IR night vision
PTZ rotation	Pan range 360°, Tilt range: -20°~90°
Video Compression	H.265/H.264
Bit Stream	Support dual stream
Video resolution	1080P/720P/VGA
Bitrate	64Kbps~10Mbps
Frame rate	1~30fps
Audio
Audio input	Built-in microphone, optional wired microphone, Bluetooth microphone
Audi output	External speaker, supports Bluetooth microphone	Built-in speaker
Network
4G/5G	4G (optional 5G)
SIM card quantity	Dual 4G fusion transmission	Single 4G
Ethernet	10/100M Adaptive full-duplex
WiFi	802.11a/b/g/n/ac,2.4G&5G
Video storage
Storage Media	Dual card storage, TF card slot, single card supports up to 512G	Single card storage, TF card slot, single card supports up to 512G
Position
Position	Support Beidou positioning
Battery running time	5~6 hours

Robot dog models option

Model	OK-Go2-4G-AIR	OK-Go2-4G-PRO	OK-Go2-4G-EDU
Basic exercise, dance	Yes	Yes	Yes
Status Indicator	Yes	Yes	Yes
Smart OAT Upgrade	Yes	Yes	Yes
Software	Yes	Yes	Yes
Wifi 6/ Bluetooth	Yes	Yes	Yes
Object detection and obstacle avoidance	Yes	Yes	Yes
4G Image Transmission	Yes	Yes	Yes
Intelligent Follow	No	Yes	Yes
Voice Interaction	No	Yes	Yes
Automatic retractable handle bag	No	Yes	No
Foot-End Force Sensors	No	No	Yes
Secondary Development	No	No	Yes
