OKAF AI Surveillance Autonomous Security Patrol Robot Industrial Guard Robot Dog Smart Security Quadruped Robot

Large Image : OKAF AI Surveillance Autonomous Security Patrol Robot Industrial Guard Robot Dog Smart Security Quadruped Robot

Product Details:

Place of Origin:	China
Brand Name:	OKAF
Certification:	CE/ROHS
Model Number:	OK-Go5CT80RI9A-4GAI

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiated
Packaging Details:	Wood box
Delivery Time:	10~15 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50 units / month

Contact Now

Detailed Product Description

Product Name:	Autonomous Industrial Guard Robot Dog Smart Security Quadruped Robot	Robotic Dog Payload:	Maximum Load Of 120 Kg. Load Forward 30 Kg
Robotic Dog Battery Life:	Full Battery Life 2.5h ~ 4h	Obstacle Avoidance:	Laser Radar
Security Robot Dog Walk Control:	Wireless Remote Control 50m + 4G Control No Limited	Autonomous Patrol:	Support Customized Autonomous Patrol, Auto Charging
Software / APP:	OKAF AI Platform Real Time Video, Robotic Dog Control	Camera Type:	Thermal Imaging PTZ Camera
Camera Function:	Fire & Smoke Detection, Face Recognition, Area Intrusion Alarm,

PRODUCT OVERVIEW

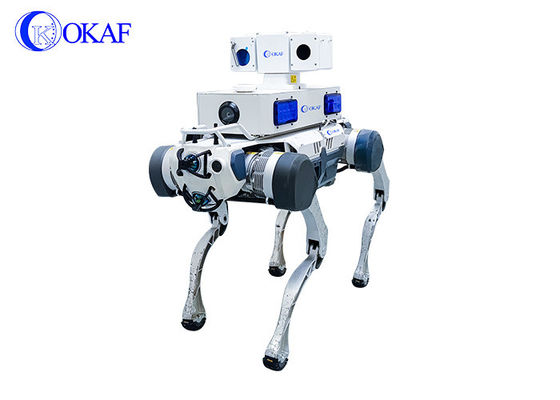

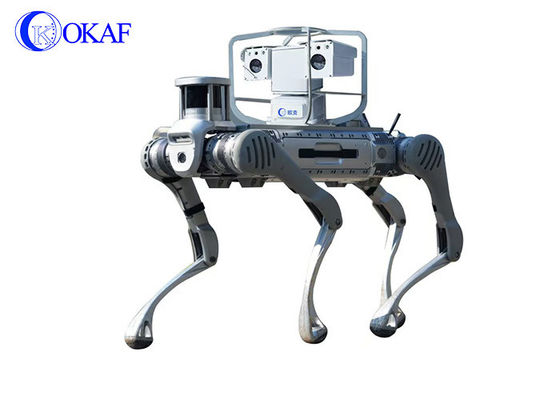

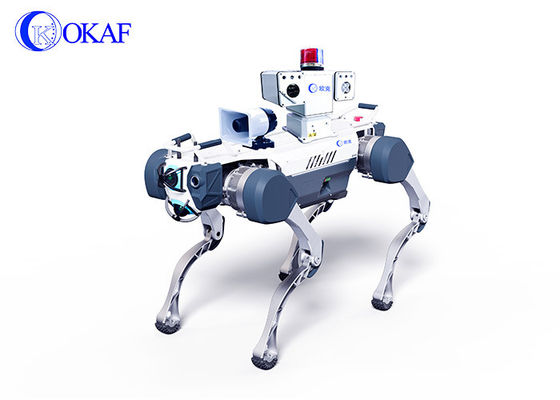

Industrial Guard AI Surveillance Security Robot Dog

OK-G05-CT80GR (AI) newly upgraded interactive bionic quadruped robot, equipped with intelligent AI intelligent monitoring 4G PTZ camera. The robot dog can be equipped with gas sensors and thermal imaging, to achieve local control or follow the walk to the required location, real-time field images, toxic and harmful, combustible gas concentration values and AI events stored and transmitted to the local mobile phone and remote command center. Realize local and remote linkage command and scheduling. Video supports 360 degree infinite bit rotation, up and down 120 degrees, 2 MP HD quality, 20x optical zoom.

Smart Security Quadruped Robot

The whole robotic dog has 12 degrees of freedom (12 aluminum alloy precision joint motor), the use of force control technology for each joint force and position compound control, in order to achieve the force control of the whole machine and obtain excellent motion performance. The

original fusion perception capability allows the four-legged robot to work in extreme environments with dim, strong light, flicker, and even no light source. The whole machine adopts aluminum alloy and high-strength engineering plastic, which greatly improves the reliability of the robot dog. Maximum running speed up to 5m/s. Equipped with four solid-state LiDAR, two hemispherical super wide-angle perception capabilities in front and back, it can help OK-G05-BK4G (AI) achieve no-blind coverage. It has reached the leading level at home and abroad in all aspects such as structure, motion performance and environmental perception.

structure, motion performance and environmental perception

Features

Features of OKAF Heavy-Duty Guard Dog Robot Go5

● 4D Lidar L1, 360°×90° hemispherical ultra-wide Angle sensing ability, the minimum detection range as low as 0.05m.

● Supports voice interaction and command functions, built-in voice recognition module.

● Robotic dog full battery life 2.5h ~ 4h.

● Robotic dog joint torque peak 45N.m.

● Industrial Guard Robot Dog maximum climbing Angle ≤45°.

● Industrial-Grade Robotic Guard Dog maximum load 120 kg , maximum load forward 30 kg.

● AI-Powered Security Robot support remote control 50 meters, video surveillance control can achieve local and remote control.

● Robot Dog walks support control on cellphone via 4G transmission.

● Robot dog extend autonomous patrol function.

● 4G AI 2MP 20x optical zoom PTZ Camera or Dual spectrum thermal imaging PTZ camera.

● 360 degree omnidirectional PTZ, support remote mouse 3D center zoom function.

● AI camera support 4G multi-card fusion transmission, real-time video smoothly.

● AI camera support dual platform access: OKAF mobile AI platform and support GB28181-2022.

● AI camera support multiple types of intercom, built-in MIC.

● Support Beidou / GPS positioning, built-in antenna.

● AI camera support face detection, face recognition, jacket detection, masks, detection, smoking detection, helmet detection function, area intrusion detection functions.

● Thermal imaging camera support fire point detection and temperature measurement.

● AI camera supports the detection of unsafe behavior directly call the name + unregulated behavior.

● AI camera supports no image transmission, only event transmission function, effectively saving traffic and fast processing event ability.

● OKAF AI platform support AI event EXCEL table statistics export function.

● AI camera built-in Wifi, you can use mobile phones, tablet for video preview.

● AI camera built-in large

capacity lithium battery, sustainable work for more than 6 hours.

OKAF AI Surveillance Autonomous Security Patrol Robot Industrial Guard Robot Dog Smart Security Quadruped Robot 6

APPLICATIONS

Application of Smart Security Quadruped Robot

Dangerous task replacement: In special circumstances, the AI power robot dog can replace the personnel to enter the dangerous area. Patrol control: Daily patrol can realize face and license plate recognition monitoring and comparison, support real-time and background intercom, command and dispatch. Propaganda and guidance: With the help of audio in daily patrol, anti-fraud and safety propaganda content can be played remotely or locally to persuade uncivilized behaviors in scenic spots and provide safety guidance. Fire, chemical applications: Fire reconnaissance: At the scene of the fire, the robot dog can enter the reconnaissance, real-time video transmission, to ensure the safety of personnel. Leakage detection: When toxic and harmful substances leak in chemical and other places, the robot dog can enter the detection, return the toxic gas value and leak point screen in real time, and assist in command and dispatch.

TECHNICAL DATA

Body scale of Security Robot dog
Floor size (L x W x H)	1130mmx470mmx265mm
Standing dimensions (L x W x H)	1000mmx470mmx695mm
Weight	59kg
electric parameter
battery capacity	22.4Ah(ideal data at 25℃)
Rated battery voltage	72V
Charger input	200V-240V
Charger output	84V/8A
Charging time	2.5h~3h
External power port	12V; 24V; 5V(USB)
External communication interface	Ethernet; WiFi; USB2.0; USB3.0
Autonomous charging function	Support
motion parameter
maximum speed	4.95m/s(Limit test data)
Maximum travel speed	1.7m/s
Maximum grade of climbable slope	士30°
Maximum climbable step height	20cm
Maximum Angle for climbing steps	士35°
No-load endurance	4h
Payload lifetime	2.5h
effective load	20kg
maximum load	85kg(Limit test data)
sensor parameter
Solid-state lidar	4
wide-angle camera	1
Other optional modules	Dual sensor ptz
enviromental parameter
level of protection	IP67
Working Temperature	-20°C ~55°C
Interface
① network interface1+24V	⑦network interface 4+12V
②network interface 2+12V	⑧network interface 5+24V
③network interface3	⑨network interface 6+12V
④24V	⑩GPS antenna
⑤USB3.0x2	⑪& ⑫ RTK antenna
⑥USB2.0x2

AI camera options

Model	OK-CT80-4G-AI	OK-CT80-4G-GD
AI intelligent function	Support face detection, face recognition, helmet detection, luminous clothing, mask detection and area intrusion detection	Support AI: face detection, face recognition,hard hat detection, luminous clothing, mask detection and area intrusion detection + gas detection: combustible/oxygen/hydrogen sulfide/carbon monoxide
access platform	Supports mobile AI management platform, dynamic forensics platform and GB28181
Dual platform access	Support
Supports AI event statistics and platform alarms	AI event alarm	AI events and gas concentration overvalue remote image overlay display and alarm
Extensibility	Scalable thermal imaging for temperature alarm and fire point detection (optional)
Camera	2.1 mp starlight HD movement with 25x optical zoom
infrared	100 m infrared, day and night automatic switch
Ptz	Horizontal 360°; Vertical -90°~90°
algorithm	H.265/H.264
code stream	Supports dual streams
Resolution	1080P/720P/VGA
Rate	64Kbps~10Mbps optional
Fps	1~30fps optional
Audio
Input signal	Built-in pickup, optional wired hand microphone, Bluetooth hand microphone
Output signal	External speaker, support Bluetooth hand microphone
Network
4G/5G	4G(5G optional)
Ethernet	10/100MAdaptive full duplex
WiFi	802.11a/b/g/n/ac,2.4G&5G
Storage
storage location	Dual card storage, TF card slot, single card up to 512G
Location	Support GPS and BD positioning
