| Material: | Aluminum Alloy | Feature: | Display Real Time Height |
|---|---|---|---|
| Mast Height: | 2~20 Meter | Top Payload Weight: | Base On Telescopic Mast Extended Height |
| Application: | Telecommunication Tower / Antenna / Light Tower/camera | Lifting Way: | Electric Mechanical |
Display Height In Real Time Electric Mast Vehicle Mounted Telescopic Mast Antenna Mast
Features of electric power telescopic mast

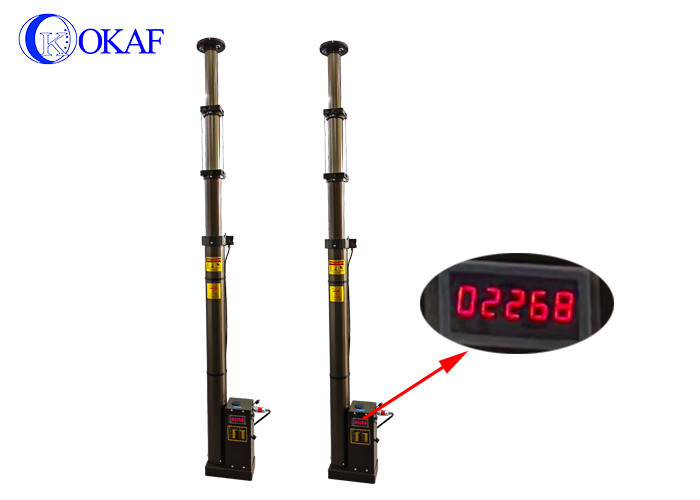

OKAF motorized mast can be displayed real time height . material is aluminum alloy, It is widely applied to radio facilities, monitoring and illumination systems in public works and milit.ary installations, radio amateurs, in metrology and other fields. What's more, we are able to offer special solutions for non-standard applications.
Our telescopic mast electric has same advantages as manual telescopic mast, it can be operated electrically or manually, and it can be self-locking at any position.
|
Model |
OK-DD03SJ |
OK-DD04SJ |
OK-DD05SJ |
OK-DD06SJ |
OK-DD08SJ |
|
Extended height |
3 m |
4 m |
5 m |
6 m |
8 m |
|
Retracted height |
1.3 m |
1.4 m |
1.6 m |
1.5 m |
1.8 m |
|
Maximum diameter |
106 mm |
106 mm |
106 mm |
106 mm |
106 mm |
|
Minimum diameter |
40 mm |
40 mm |
40 mm |
40 mm |
40 mm |
|
Max Top payload |
30 kg |
30 kg |
25 kg |
20 kg |
20 kg |
|
Number of sections |
3 |
4 |
4 |
6 |
6 |
|
Wind power |
Level 8/ or 19m /SEC |
||||
|
Torsion precision |
≤±2º |
||||
|
Power supply |
DC12V /DC24V for all kinds of vehicles/ trucks/trailer |
||||
|
Installation |
Vehicle /Trailer mounted by hoop and base flange / ground mounted by tripod |
||||
|
Control way |
RS485 wired or wireless remote controller |
||||
|
Low temperature storage |
-55° |
||||
|
Low temperature work |
-40° |
||||
|
High temperature storage |
70° |
||||
|
High temperature work |
55° |
||||
|
Humidity |
Relative humidity 90%(temperature 25°) |
||||
|
Rain |
6mm/min continuous 1h |
||||
|
Rated load |
Lifting ≤120N |
||||
|
Lifting speed |
Average speed 4m/min |
||||
|
Safety |
Self-locking at any height |
||||
|
Material |
High strength aluminum alloy |
||||
The telescopic mast electric lifting have nearly unlimited applications. The mast lifting by RS485 wired or wireless remote control, which is very convenient for only vehicle mount but also ground mount. The electric winch design is ideal for vehicle mount which is perfect for fire truck, small trailer, vessels for emergency lighting or monitoring.
Electric telescopic antenna mast is helpful for telecommunication industrial. It meets the radio amateurs requirements that need to use antenna to enhance signal.
Telescopic Light Tower electric power could be install on small trailers for some construction site lighting system.
