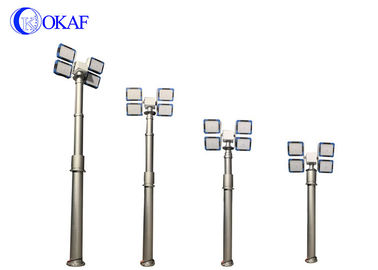

Aluminum Alloy Telescopic Mast Pole Emergency Mobile Lifting Light Ground / Truck Mount

Certification
China Shenzhen Okaf Technology Co., Ltd. certification
China Shenzhen Okaf Technology Co., Ltd. certification
Customer Reviews
The mast is extended only about 6m right now to see how it performs. As I mentioned so far it has done great. The total weight supported by the mast is around 15kg so there is plenty of margin there. Just as a point of interest the mast and antenna system has already been exposed to a wind of around 48km/h and did just fine.

—— Joe W. Feusner

We received the goods, which are already in the test, which is more affordable than the mast we bought for the first time, but the test seems to be good without any problems.

—— Robert Labro

We still want to work with you to continue to buy mast products in your company. The first time we purchased the product was very good and there was no problem. The same is true for the second purchase of the mast, but the weight of the gimbal rotor seems to be too light. We hope to cooperate with you for the third time. But the problem we are cons

—— Pankaj

The products are very good, there are a lot of places that do not understand, the salesman has always been very cooperative with our work to help us achieve the results we need.

—— Tuan Nguyen

I am very satisfied with the production and delivery

—— pero baotic

I'm Online Chat Now

Aluminum Alloy Telescopic Mast Pole Emergency Mobile Lifting Light Ground / Truck Mount

Aluminum Alloy Telescopic Mast Pole Emergency Mobile Lifting Light Ground / Truck Mount
Aluminum Alloy Telescopic Mast Pole Emergency Mobile Lifting Light Ground / Truck Mount

Large Image :  Aluminum Alloy Telescopic Mast Pole Emergency Mobile Lifting Light Ground / Truck Mount

Product Details:
Place of Origin: China
Brand Name: Okaf
Certification: CE/FCC/RoHS
Model Number: OK-QD06SJ-4LED-800W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: Negotiable
Payment Terms: T/T, Paypal, Western Union,, L/C, MoneyGram
Supply Ability: 2500pcs per month
Detailed Product Description
Material: Aluminum Alloy Color Temperature: White Is 6000-6500 K
Weight: 90 Kg Lamp Working Voltage: AC220V
Height: 3-18M Warranty: 1 Year
High Light:

portable telescoping antenna mast

,

pneumatic telescopic mast

,

Emergency Aluminum Alloy Telescopic Mast Pole

6M Emergency Mobile Lifting Light Aluminum Alloy Ground Mounted Truck Mount



Product features:



1. 3030-28 pearl super light source lamps are used to provide all-directional blind spot lighting;

2. Lift the pole 6M (1.8-15m customizable) from the roof when using;

3. emergency lighting, with a full range of search and lighting functions.

4. Horizontal and vertical rotation speed: 6r/min horizontal.

5. LED lamp power: 800W(4×200W) light flux: ≈27000LM.



6. On-board power voltage input range: DC12V±10%;

7, dual control, through the wireless remote control and RS485 control lifting rod: rise and fall.Lighting, rotation, and other functions.

8. The waterproof grade reaches IP66.

9.power protection function. (the positive and negative pole of the power will not cause damage to the equipment)

10.Rectangular matrix double-layer arrangement is adopted, which is composed of 2 groups of focusing light and 2 groups of floodlight. Aluminum alloy one-piece forming shell has the advantages of larger area, longer distance, more uniform light distribution and better appearance compared with circular LED lamp holder



Scope of application:



Widely used for all kinds of night operations, such as engineering emergency repair, disaster rescue, fire lighting, police scene, on-site accident treatment and other emergency lighting and video monitoring.



Model

OK-QD06SJ-4LED-800W

System operating voltage

AC220V(customized dc12-24v)

Lamp working voltage

AC220V

The light source type

LED flood light + spotlight

Lamp working power

200W*4

Speed of horizontal and vertical rotation

6r/min

The LED specification

Lux45mil 120-130Lm/W

The LED luminous flux

≈27000LM (lumens)

Color temperature

White is 6000-6500 k

LED service life

50000Hr

Heat dissipation material of lamp

Cold forging high thermal conductivity 1070 aluminum

The brand of tube



Horizontal rotation radius of luminaire

410(mm)

Horizontal rotation Angle

380°

Vertical rotation Angle

330°

Weight

90KG(according to different lifting rods)



Product size:



Aluminum Alloy Telescopic Mast Pole Emergency Mobile Lifting Light Ground / Truck Mount 0
