Product Details:
Payment & Shipping Terms:
|
| Car Models: | Utility Trucks, Vehicles, Pilot Cars, Pickup Trucks, And Farm Machiner | Usage: | Warning Strobe Light Bar |
|---|---|---|---|
| Advantage: | LED Screen | Material: | Plastic + Aluminium Alloy |
| Length: | Customized According To Car Style | Keyword: | LED Light Bar With LED Screen |
| Volatge: | 12V-24V | Warranty: | 1year |
| Highlight: | led warning light bar,emergency vehicle light bars |
||

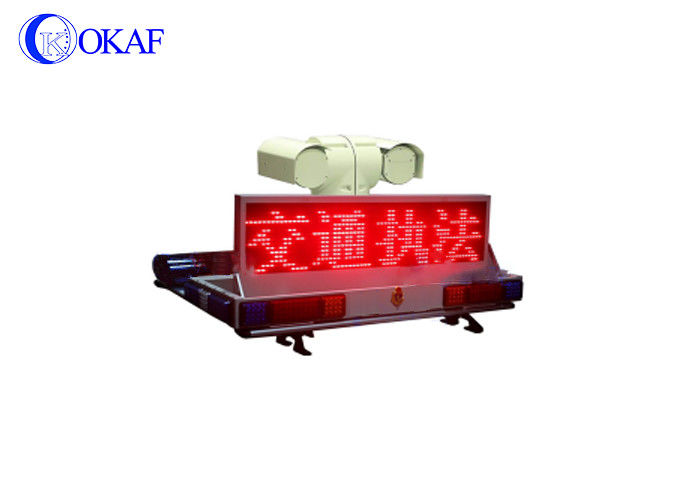

Car LED Light Bar Roof Mounted LED Screen Strobe Warning With
PTZ Camera
Product description:
1. Warning light + car PTZ + LED lodging screen integrated design, the appearance of more refined, to avoid the general site of high-altitude crash badminton；
2. Support docking each network video recorder, thus access to various manufacturers platform；
3. Integrated LED invert flip screen, speed ≤ 60km display can be erected to use；
4. PTZ imported dot matrix infrared light from Germany, night vision distance of 120 meters；
5. LED light bar using pipeline design, the appearance of new (red, blue, yellow optional) ；
6. led lighting bar using pipeline design, the appearance of new (red, blue, yellow optional)；
7. PTZ built-in voltage regulator module, protection equipment stable and durable； 8,The highest resolution 2048X1536 (support docking Sony, Hikvision, UOB,
Parameters:
| PTZ parameter | |||||||
| Model | OK-TBCT100GR-LED-DFP | ||||||
| Horizontal preset speed | 300°/S(Manual control0°～220°/S) | ||||||
| vertical preset speed | 120°/S(Manual control0°～90°/S) | ||||||
| Horizontal angle | 360°Unlimited | ||||||
| Up and down angle | ＋90°～－90° | ||||||
| Preset patrolling track | 256 preset positions | ||||||
| control method | RS485 and RJ45 dual control protocol, baud rate from 2400Bps to 19200Bps optional | ||||||
| Network | |||||||
| Docking movement | Hikvision, Sony, UOB, Hitachi and domestic network HD movement | ||||||
| Network interface | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) | ||||||
| Maximum image size | 1920×1080(By the movement pixel decision) | ||||||
| Frame rate | 25/30 fps | ||||||
| Audio video compression | H.264 | ||||||
| Audio mode | External active microphone or linear input, linear output (custom) | ||||||
| Network protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP | ||||||
| Double stream | Support | ||||||
| Video output | BNC and RJ45 Dual output | ||||||
| Operating temperature | －35°C~＋65°C | ||||||
| Degree of protection | IP66 | ||||||
| Power | DC10.5V~DC15V(3A car) | ||||||
| Weight | 7KG | ||||||
| Infrared light parameters | |||||||
| Chroma | 850nm | ||||||
| Search distance | 120 meter | ||||||
| Infrared light number | 3W*7 | ||||||
| Long row of lights parameters | |||||||
| The main light source | LED | ||||||
| Power source | 48W | ||||||
| Color specification | Red, yellow, blue optional | ||||||
| Siren power | 100 watt,150 watt | ||||||
| length | 1.2 meter | ||||||
| Power | 12V/24V | ||||||
| Flip flip screen | |||||||
| Closed Dimensions (mm) | 1194*525*172(Visual size:1024*256) | ||||||
| pixel | * 32 dot matrix | ||||||
| Light-emitting points | Level±60°,vertical±45° | ||||||
| Control Method | Controller control | ||||||
| Visual distance(m) | ≥150 | ||||||
| light intensity(cd/㎡) | ≥50000 | ||||||
| Single screen can display the number of words | 4 | ||||||
| Movement | |||||||
| Model | OK-TBCT100GR-LED-DFP13IP | OK-TBCT100GR-LED-DFP-20IP | OK-TBCT100GR-LED-DFP-30IP | ||||
| Image Sensor | 1/2.8 inch“Exmor”CMOS | ||||||
| Effective number of pixels | About 1.3 million pixels | About 2 million pixels | About 3 million pixels | ||||
| Lens | 20x optical zoom, focal length 4.7-94mm; 30x optical zoom focal length 4.5-135mm | ||||||
| Minimum illumination | Minimum illumination,color 0.05Lux @ (F1.6,AGC ON),black and white:0.01Lux @ (F1.6,AGC ON)； | ||||||
| Back-end VCR compatible | Standard ONVIF protocol, support for secondary development, support for Hikvision, UOB, Xiongmai, the United States Bell and other NVR | ||||||
| PTZ can choose another signal output | AHD:200/130 | SDI:300/200/130 | Simulation of movement | ||||
