Product Details:
Payment & Shipping Terms:
|
| Frame Rate: | 25/30 Fps | Weight: | 3kg |
|---|---|---|---|
| Length: | Customized According To Car Style | Material: | Plastic + Aluminium Alloy |
| Car Models: | Utility Trucks, Vehicles, Pilot Cars, Pickup Trucks, And Farm Machiner | Volatge: | 12V |
| Highlight: | led warning light bar,dash light bar |
||

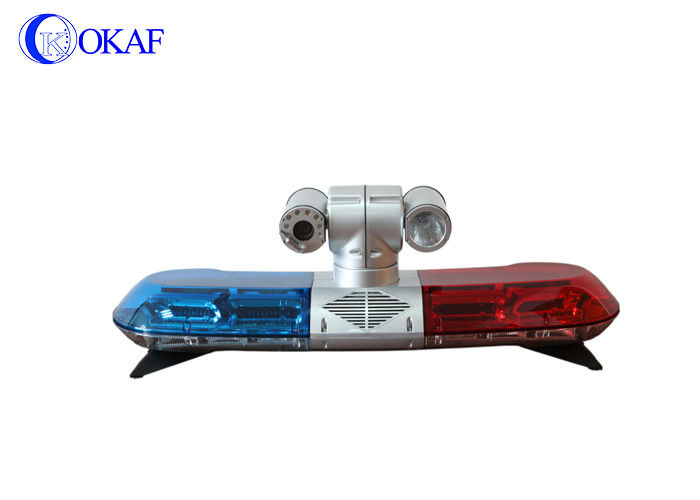

Car Roof Flash LED Warning Light Bar Warning Strobe Light Bar For
Military
Product description:
1. With the integration of led warning light bar, vehicle PTZ camera and alarm, the appearance is more exquisite, and it can avoid being crushed in height limited areas due to the combination.
2. Support docked with other brands’ NVR.
3. It is dual control, controlling PTZ and camera via RS485 and RJ45 network port.
4. The night vision distance is 200 meters with powerful infrared HID lights.
5. The led warning light bar is novel pipeline design, (red, blue, yellow is available).
6. Warning function built-in
7. PTZ has a unique built-in Voltage Regulator Module , protecting device for stability and durability
8. The highest resolution is 2048X1536 ( support docking with Sony, Hikvision, Dahua and other Chinese camera chip (1.3MP, 2MP, 3MP).
Parameters:
| PTZ camera parameter | |||||||
| Model No. | OK-TBCT500HID | ||||||
| Pan preset speed | 300°/S(manual control 0°～220°/S) | ||||||
| Tilt preset speed | 120°/S(manual control 0°～90°/S) | ||||||
| Pan range | 360° | ||||||
| Tilt range | ＋90°～－90° | ||||||
| Preset positions/Patrol track | 256 preset positions | ||||||
| Control Way | Dual control protocol: RS485 and RJ45, from 2400Bps to 19200Bps | ||||||
| Network | |||||||
| Docking camera chip | Hikvision, SONY, Dahua, Hitachi and other Chinese HD camera chip | ||||||
| Network interface | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) | ||||||
| Max image size | 1920×1080(decided by camera chip's pixel) | ||||||
| Frame rate | 25/30 fps | ||||||
| Audio and vedio compress | H.264 | ||||||
| Audio mode | External microphone or linear input, linear output (customized) | ||||||
| Network protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP | ||||||
| Double stream | support | ||||||
| Vedio output | BNC & RJ45 output | ||||||
| Operating temperature | －35°C~＋65°C | ||||||
| IP Grade | IP66 | ||||||
| Power Supply | DC10.5V~DC15V(3A vehicle) | ||||||
| Weight | 3KG | ||||||
| Infrared light parameter | |||||||
| Chroma | 850nm | ||||||
| Distance | 200 meters | ||||||
| Led warning light bar | |||||||
| Key light | HID | ||||||
| Light power | 48W | ||||||
| Color options | Red,yellow,blue available | ||||||
| Alarm power | 100W,150W | ||||||
| Length | 1.2m | ||||||
| Power Supply | 12V/24V | ||||||
| Network movement | |||||||
| Model No. | OK-TBCT803HID-13IP | OK-TBCT803HID-20IP | OK-TBCT803HID-30IP | ||||
| Imaging sensor | 1/2.8" “Exmor”CMOS | ||||||
| Effective pixels | about 1.3 mega pixels | about 2 mega pixels | about 3 mega pixels | ||||
| Lens | 20X optical zoom,f=4.7-94mm；30X optical zoom f=4.5-135mm | ||||||
| Min.illumination | colored:0.05Lux @ (F1.6,AGC ON),plain:0.01Lux @ (F1.6,AGC ON)； | ||||||
| Compatible NVR | Standard ONVIF protocol,support secondary exploration,support Hikvision,Dahua,Xiongmai,Aebell NVR etc | ||||||
| Other signal output for PTZ | AHD: 2million/1.3million | SDI: 3million/2million/1.3million | Analog movement | ||||
