Dual Control LED Light Bar , Flash Led Light Bars For Emergency Vehicles

Dual Control LED Light Bar , Flash Led Light Bars For Emergency Vehicles
Dual Control LED Light Bar , Flash Led Light Bars For Emergency Vehicles

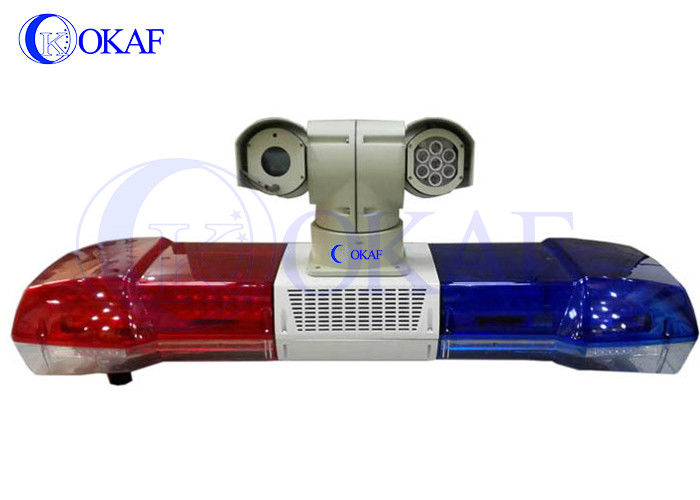

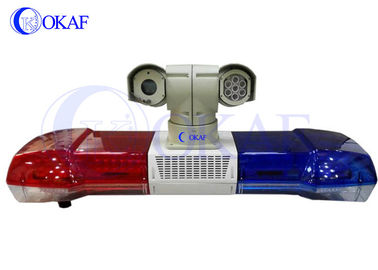

Large Image :  Dual Control LED Light Bar , Flash Led Light Bars For Emergency Vehicles

Product Details:
Place of Origin: China
Brand Name: Okaf
Certification: CE/FCC/RoHS
Model Number: OK-TBCT100GR-20IP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: T/T, Paypal, Western Union, L/C, MoneyGram etc
Supply Ability: 2500pcs per month
Detailed Product Description
Vedio Output: BNC & RJ45 Output Operating Temperature: -35°C~+65°C
IP Grade: IP66 Material: Plastic + Aluminium Alloy
Length: Customized According To Car Style Car Models: Utility Trucks, Vehicles, Pilot Cars, Pickup Trucks, And Farm Machiner
Volatge: 12V-24V Warranty: 1year
High Light:

led warning light bar


emergency vehicle light bars


Integration Of LED Light Bar Flash Emergency And Full HD Car PTZ





Product description:


1. With the integration of led warning light bar, vehicle PTZ camera and alarm, the appearance is more exquisite, and it can avoid being crushed in height limited areas due to the combination.
2. Support docked with other brands’ NVR.
3. It is dual control, controlling PTZ and camera via RS485 and RJ45 network port.
4. The night vision distance is 100 meters with powerful infrared LED imported from German.

5. The led warning light bar is novel pipeline design, (red, blue, yellow is available).
6. Warning function built-in
7. PTZ has a unique built-in Voltage Regulator Module , protecting device for stability and durability
8. The highest resolution is 2048X1536 ( support docking with Sony, Hikvision, Dahua and other Chinese camera chip (1.3MP, 2MP, 3MP).



PTZ camera parameter
Model No. OK-TBCT100GR-20IP
Pan preset speed 300°/S(manual control 0°~220°/S)
Tilt preset speed 120°/S(manual control 0°~90°/S)
Pan range 360°
Tilt range +90°~-90°
Preset positions/Patrol track 256 preset positions
Control Way Dual control protocol: RS485 and RJ45, from 2400Bps to 19200Bps
Docking camera chip Hikvision, SONY, Dahua, Hitachi and other Chinese HD camera chip
Network interface RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
Max image size 1920×1080(decided by camera chip's pixel)
Frame rate 25/30 fps
Audio and vedio compress H.264
Audio mode External microphone or linear input, linear output (customized)
Double stream support
Vedio output BNC & RJ45 output
Operating temperature -35°C~+65°C
IP Grade IP66
Power Supply DC10.5V~DC15V(3A vehicle)
Weight 3KG
Infrared light parameter
Chroma 850nm
Distance 50 meters
Infrared light 5W*2
Led warning light bar
Key light LED
Light power 48W
Color options Red,yellow,blue available
Alarm power 100W,150W
Length 1.2m
Power Supply 12V/24V
Network movement
Imaging sensor 1/2.8" “Exmor”CMOS
Effective pixels about 1.3 mega pixels about 2 mega pixels about 3 mega pixels
Lens 20X optical zoom,f=4.7-94mm;30X optical zoom f=4.5-135mm
Min.illumination colored:0.05Lux @ (F1.6,AGC ON),plain:0.01Lux @ (F1.6,AGC ON);
Compatible NVR Standard ONVIF protocol,support secondary exploration,support Hikvision,Dahua,Xiongmai,Aebell NVR etc
Other signal output for PTZ AHD: 2million/1.3million SDI: 3million/2million/1.3million Analog movement
