4G Dual spectrum Thermal Imaging Hunting Monitoring PTZ camera

4G Dual spectrum Thermal Imaging Hunting Monitoring PTZ camera
4G Dual spectrum Thermal Imaging Hunting Monitoring PTZ camera

Large Image :  4G Dual spectrum Thermal Imaging Hunting Monitoring PTZ camera

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE / ROHS /FCC
Model Number: OK-CQ70RI-4GW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: standard export cartons
Delivery Time: 10~20 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 500 units/month
Detailed Product Description
Product Name: 4G Dual Spectrum Thermal Imaging Hunting Monitoring PTZ Camera Day Camera Resolution: 1920*1080
Day Camera Zoom: 20x 30x Optical Zoom Thermal Camera Resolution: 384*288
Thermal Camera Lens: 7mm Function: Built In 4G WIFI GPS
Temperature Measurement: -20 ℃ -150 ℃ Or 0℃ -550 ℃. Accuracy :±2 ℃. Power Supply: Battery Power ( Built In Battery )

4G Dual spectrum Thermal Imaging Hunting Monitoring PTZ camera

Specification

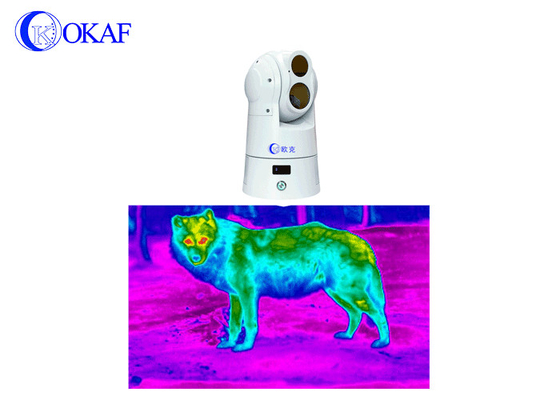

HD intelligent 4G dual spectrum Thermal PTZ camera is a comprehensive, portable and convenient wireless video emergency command integrated product. It is high integration, integrated visible light camera and thermal imaging camera.Support 4G/5G transmission, GPS position.Built-in high-performance lithium battery.The device is waterproof, protection grade up to IP66. It can meet the special requirements of temporary control and quick installation.The device can be temporarily installed on the location or vehicle that needs to be monitored.Built-in temperature measurement thermal imaging to meet the needs of temperature measurement and night operation.

4G Dual spectrum Thermal Imaging Hunting Monitoring PTZ camera 0

Feature

● Exquisite structural design, aluminum alloy casting shell, impact resistance and corrosion resistance.

● Support 4G full Netcom module remote wireless video transmission,Expandable 5G module.

● Built-in GPS antenna, supports Beidou/GPS dual-mode fast positioning.

● Built-in Wifi module, can connect to hotspot configuration parameters or preview video.

● Built-in LED display, which can display 4G, GPS, and battery status in real time

● Built-in temperature measurement thermal imaging camera to achieve accurate temperature measurement and day and night monitoring.

● Visible light glass has its own heating and defrosting function.

● Integrated design, equipped with high-attraction magnets at the bottom, easy to install

● Support voice broadcast (non-standard configuration).

● Support multi-platform access: OKAF dynamic forensics platform and GB28181, etc.



Thermal camera

● Excellent thermal imaging, resolution 384*288/640*512 optional

● AGC automatic gain adjustment, 3D noise reduction, DDE image detail enhancement.

● Black hot / white hot / iron red / rainbow and other fake colors (14 kinds of false color adjustable)

● Accurate temperature measurement, maximum temperature cross positioning.

● supports 1 line temperature measurement 10 frame temperature measurements and 10 point temperature measurements.

● Temperature measurement range: -40℃-550℃, temperature measurement accuracy: ±2 degrees (or ±2% of the range).

● Abnormal temperature alarm, support 2-way hardware alarm input, 2-way alarm output.

● Support standard ONVIF protocol, support SDK.



Day camera

● Resolution 2 megapixel HD, 1920 * 1080P resolution;

● 20x/30x optical zoom optional.

● Standard ONVIF protocol. Support H.264 & H.265.



Application

OKAF 4G Thermal imaging PTZ camera Mainly used in power industry, public security, traffic police, fire protection, military regions, courts, prisons, environmental protection ,hunting and other units

4G Dual spectrum Thermal Imaging Hunting Monitoring PTZ camera 1





Technical data:

Product name 4G HD dual spectrum thermal PTZ camera
Operate system Linux
Video video compression format H.265/H.264
dual stream Main stream and sub stream
Resolution 1080P/720P/D1
preview function Support
Storage Local storage 1 SD card,Max support 256G
wireless network 4G/3G Can support 4G module, support full Netcom or private network protocol
WIFI Built-in WIFI module, support 802.11b/g/n
hotspot mode Support 4G AP hotspot mode, support router STA mode
Position GPS Built in GPS/ Beidou
Extension ports RJ45 Network interface, charging interface
PTZ horizontal rotation angle 360°
vertical rotation angle -20°~90°
Battery Large-capacity lithium battery pack, remaining power prompt
Power supply Charging time <5 h
Working time 6-8 h(room temperature environment)
temperature -15℃~ +50℃
working environment humidity <90%
dimension 294*153mm(Height*diameter)
Weight Net weight:3.5kg
Gross weight:9.6kg



Day camera datasheet:

Day camera sensor type 1/2.8" Progressive Scan CMOS
signal system PAL/NTSC
minimum illumination

0.01Lux @(F1.5,AGC ON) color

0.005Lux @(F1.5,AGC ON) black and white

Day and night mode ICR Infrared filter type
electronic shutter 1/1 s ~ 1/30,000 s
Resolution 1920x1080/1280*720 25fps/30fps
white balance Auto/manual/sunny/cloudy/dusk/incandescent lamp/sodium lamp/fluorescent lamp/one-time tracking/automatic tracking
3D noise reduction Support
Optical zoom 20x optical zoom
Control Protocol PELCO-D/P



Thermal camera datasheet:

Thermal camera Resolution 384×288
Lens 7mm
Field of view 37.5°×28.5°
Minimum imaging distance 1.5mm
Temperature range -20℃-150℃ or 0℃-550℃
Temperature measurement accuracy ±2°C or ±2% of reading



Dimension:(MM)

4G Dual spectrum Thermal Imaging Hunting Monitoring PTZ camera 2
