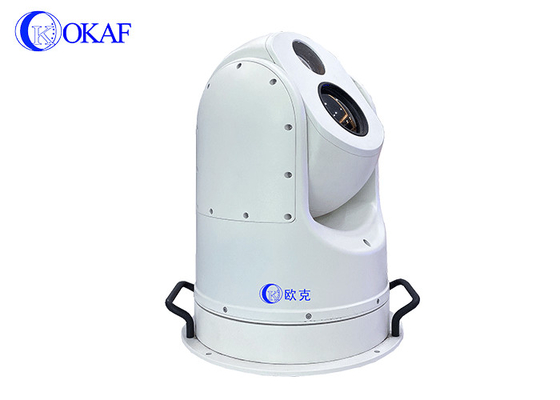

30x Ptz Surveillance Camera Long Range Thermal Visible

30x Ptz Surveillance Camera Long Range Thermal Visible
30x Ptz Surveillance Camera Long Range Thermal Visible

Large Image :  30x Ptz Surveillance Camera Long Range Thermal Visible

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE / ROHS /FCC
Model Number: OK-CQ80RI-IP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: standard export cartons
Delivery Time: 10~20 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 500 units/month
Detailed Product Description
Detector Type: Uncooled Focal Plane Micro-heat Type Thermal Lens: 25mm, F1.0(9.4-100mm Optional)
Thermal Camera Resolution: 384*288 /640*480 Day Camera: 2MP, 1920*1080
Optical Zoom: 20x 30x 46x 52x Optical Zoom Optional Material: Aluminum Alloy
High Light:

30x ptz surveillance camera


long range military ptz surveillance camera


30x thermal imaging ptz camera

Long‑Range Thermal & Visible PTZ Surveillance Camera



OKAF long range thermal is a high performance Long range thermal imaging PTZ camera.

That packs Advanced multi EO/IR sensors for exceptional day & night vision capabilities. Multiple fixed and continuous telephoto zoom long range Germanium lenses are available to satisfy long range Detection, Recognition and Identification of targets of interest.


The rugged, Cost effective all weather gimbal packs a plethora of features useful for effective 24/7 security and surveillance applications. Instant Optical zoom on both the thermal camera channel and the visible daytime low light camera channel are easily accessible via a host of controlling options.


The all weather OKAF Long Range Thermal Camera can be used on fixed, marine, telescoping mast pole and mobile mounted applications in any hot/cold climates.


Thermal camera

● Resolution 384*288/640*512 optional ,Excellent thermal imaging,

● AGC automatic gain adjustment, 3D noise reduction, DDE image detail enhancement.

● Black hot / white hot / iron red / rainbow and other fake colors (14 kinds of false color adjustable)

● Accurate temperature measurement, maximum temperature cross positioning.

● supports 1 line temperature measurement 10 frame temperature measurements and 10 point temperature measurements.

● Temperature measurement range: -40℃-550℃, temperature measurement accuracy: ±2 degrees (or ±2% of the range).

● Abnormal temperature alarm, support 2-way hardware alarm input, 2-way alarm output.

● Support standard ONVIF protocol, support SDK.


Day camera

● Resolution 2 megapixel HD, 1920 * 1080P resolution;

● 20x/30x optical zoom optional.

● Standard ONVIF protocol. Support H.264 & H.265.



● 360°continuous rotation in the horizontal, Vertical 40°~ -90°,Pan speed 0.1°-40°/s , Tilt speed 0.1°-20°/s.

● 256 preset positions, with preset video freeze function.

● The first independent defogging and defrosting module in China which truly solves the problem of lens fogging in the camera compartment caused by temperature differences in the outdoor environment.

● The camera compartment uses high-quality heating parts, so that the entire compartment body works together to form an effective anti-fogging and defogging pattern.

●The PTZ adopts an integrated structure of upper and lower spindles, so that the PTZ camera bin and infrared bin will not be bumped and misaligned

●The PTZ is equipped with an original voltage stabilization module as standard to filter the instantaneous unstable current of the vehicle and keep the PTZ in a stable state.



●Urban surveillance
●Transportation and traffic
●Oil & gas
●Border control
●Critical industrial infrastructure


Technical data

Model OK-CQ80RI-IP(384) OK-CQ80RI-IP(640)
Detector performance
Detector type Uncooled focal plane micro-heat type
Resolution 384×288 640*512
Lens 25mm, F1.0(9.4-100mm optional)
Pixel spacing 25μm
Wavelength range 8-14μm
Field frequency/sample frequency 50/60Hz
Lens characteristics
Field of view /minimum focal length 25°×19°/0.1m 12°×9°/0.5m
Image performance
Spatial resolution 1.39mrad 0.67mrad
Thermal sensitivity ≤0.06℃@30℃
Focus Automatic / electric focusing
Image display
Palette (color scale) Black hot / white hot / iron red / rainbow and other fake colors (14 modes)
Image Processing Automatic/manual adjustment of contrast and brightness
PTZ characteristics
Horizontal preset speed 100°/S
Vertical preset speed 80°/S
Horizontal manual speed control 0°—40°/S
Vertical manual control speed 0°—20°/S
Horizontal angle 360° infinite rotation
Vertical angle -40°—+90°
Preset 256 preset positions, 6 patrol tracks
control method RS485,Built-in 16 protocols,Baud rate is selectable from 2400Bps to 19200Bps
Relative humidity 小于90%
Protection level IP66
Working temperature -35°C—+55°C
Power supply DC10.8V-DC24V
Impact resistance requirements ≥4G
Wiper Support
Installation method A variety of installation options are available depending on the application environment
Weight 10kg
Visible light camera and coding
Image sensor 1/2.8" Progressive Scan CMOS
Pixel 2MP
Focal length f=4.7~130mm,30x optical zoom
Resolution 1920*1080P
Video compressor H.264/H.265
Audio compressor G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726
Compressed output bit rate 32Kbps—16Mbps
Interface Protocol ONVIF/PSIA/CGI/ISAPI
Communicate Protocol PelcoD-P protocol
Storage function Support MicroSD storage
User rights Up to 32 users, divided into 3 levels: administrators, operators and ordinary users can only browse
Power supply DC10~15V input
Analogue video output PAL(50HZ)
