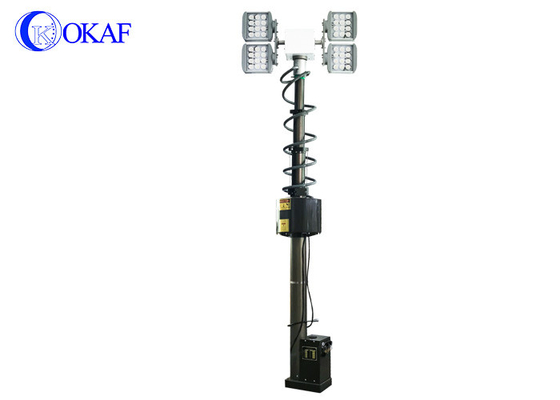

Aluminum Alloy Night Scan Light Tower Mobile Electric Led Light Mast

Aluminum Alloy Night Scan Light Tower Mobile Electric Led Light Mast
Aluminum Alloy Night Scan Light Tower Mobile Electric Led Light Mast Aluminum Alloy Night Scan Light Tower Mobile Electric Led Light Mast Aluminum Alloy Night Scan Light Tower Mobile Electric Led Light Mast

Large Image :  Aluminum Alloy Night Scan Light Tower Mobile Electric Led Light Mast

Product Details:
Place of Origin: China
Brand Name: Okaf
Model Number: OK-QD03SJ-4LED
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard carton
Payment Terms: T/T, Paypal, Western Union,, L/C, MoneyGram
Supply Ability: 2500pcs per month
Detailed Product Description
Height: 3-20M LED Light: 4*120W (2/4*50W, 100W, 200W, 500W, 700W)
Luminous Flux: 48000 Lumen Waterproof: IP66
Warranty: 1 Year Power: DC12V/24V, AC220V
Highlight:

aluminum alloy night scan light tower

,

3m night scan light tower

Feature:



The vehicle telescoplamp mast was specifically designed for large local fire truck companies who installed the system inside the fire truck. When they deploy the system, they operate the DC12V / D C 24 V/AC220V to provide a power supply.
Expansion lighting system at night, remote rural areas, emergency, building lighting supplies high. This portable lighting system is automatically locked and automatically extended, and can be 360 degree rotated.



  • Integrated telescopic mast, lighting and camera design;
  • When using the mast, it can be raised 3M high from the roof (2-20m can be customized);
  • Emergency lighting realization, with a full range of search, positioning and lighting functions;
  • Horizontal and vertical rotation speed: 6 r/min;
  • LED lamp power: 4*120W (50W, 100W, 200W, 500W, 700W);
  • Dual control, through the wireless remote control and RS485 control of the telescopic mast: up and down, Lighting, rotation, and other functions;
  • Waterproof IP66;
  • Power supply protection function. (Positive and negative poles of power supply will not cause equipment damage);
  • Vehicle power supply voltage input range: DC12V ± 10% (support customized AC220V).



Aluminum Alloy Night Scan Light Tower Mobile Electric Led Light Mast 0




Parameters:

Model OK-DD03SJ-4LED
Extended height 3 m
Retracted height 1.165 m
Maximum diameter 106 mm
Minimum diameter 40 mm
Number of sections 3 sections
Light power 4*120W
Luminous flux 48000 lm
Wind power Level 8/19m/SEC
Torsion precision ≤±2º
Power supply DC12V /DC24V for all kinds of vehicles/ trucks/trailer
Installation Vehicle mounted / Trailer mounted
Control way manual(Hand handle) and electric(Wired remote control handle)
Low temperature storage -55℃
Low temperature work -40℃
High temperature storage 70 ℃
High temperature work 55℃
Humidity Relative humidity 90%(temperature 25℃)
Rain 6mm/min continuous 1h
Rated load Lifting ≤120N
Lifting speed Average speed 4m/min
Safety Self-locking at any height
Accessories Hand crank, wired remote control, wireless remote control

1.Telescopic mast component Telescopic mast is a key component of the vehicle lighting system. Okaf has made telescopic masts for 6 years, whose manufacturing technology and technology is not only leading in China, but some have reached the international first-class level.

2.PTZ component The PTZ used is an improved model based on the W·B company NIGHTSCAN PTZ with a more reasonable structure, a more stable and reliable performance, and a more beautiful appearance. At present, the PTZ has become the supporting equipment of American W·B company and GEROH company in Germany.

3.Lighting component Type of light source: American CREED high-power LED chip, which has the advantages of aluminum alloy integrated molding shell, larger light projection area, farther distance, more uniform light distribution, and batter appearance.


Applications:



Widely used for all kinds of night operations, such as engineering emergency repair, disaster rescue, fire lighting, police scene, on-site accident treatment and other emergency lighting and video monitoring.

  • Wide range application.It is widely applied to medium-size rescue, pumper rescue, service and utility vehicles or smaller wrecker vehicles.
  • Mobile lighting. integrated design, which is Perfect for police car, fire truck, ambulance, military vehicle mounted which need mobile video surveillance or mobile lighting for rescue.
