|Material:||Aluminium Alloy||Level Of Rotation Speed:||6r/min|
|Vertical Of Rotation Speed:||66Km/h||Control Way:||RS485+Wireless Control|
|Horizontal Rotation Angle:||360°||Vertical Rotation Angle:||180°|

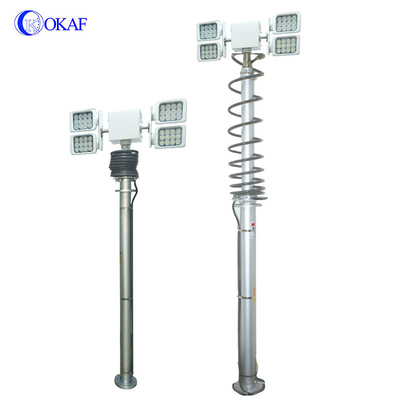

telescopic pneumatic light mast,
aluminium alloy pneumatic light mast
1. Integrated telescopic mast, lighting and camera design;
2. Using American CREED lamp beads, which are strong light source lamps, and all-round no blind spot lighting;
3. When using the mast, it can be raised 7M ( can be customized);
4. Emergency lighting realization, with a full range of search, positioning and lighting functions;
5. Horizontal and vertical rotation speed: 6 r/min;
6. LED lamp power: 600W (4*150W);
7. Dual control, through the wireless remote control and RS485 control of the telescopic mast: up and down, Lighting, rotation, and other functions;
8. Waterproof IP66;
9. Power supply protection function. (Positive and negative poles of power supply will not cause equipment damage);
10. Vehicle power supply voltage input range: DC12V ± 10% (support customized AC220V).
Widely used in all kinds of special vehicles, emergency rescue vehicles and night operations, such as engineering emergency repair, disaster rescue, fire lighting, police scene, on-site accident treatment and other emergency lighting and on-site video monitoring.
|System working voltage||DC12V/24V (AC220V can be customized )|
|Lighting working voltage||DC12V|
|Operating power of lights||600W(150W*4)|
|Horizontal and vertical rotation speed||80/S|
|LED working life||50000Hr|
|Horizontal rotation angle||360°|
|Vertical rotation angle||180°|
|Control way||RS485+Wireless control|
Structure and characteristics:
The product is composed of four parts: telescopic mast component, PTZ component, lighting component and control system component.
1. Telescopic mast component Telescopic mast is a key component of the vehicle lighting system. Okaf has made telescopic masts for 6 years, whose manufacturing technology and technology is not only leading in China, but some have reached the international first-class level.
2. PTZ component The PTZ used is an improved model based on the W·B company NIGHTSCAN PTZ with a more reasonable structure, a more stable and reliable performance, and a more beautiful appearance. At present, the PTZ has become the supporting equipment of American W·B company and GEROH company in Germany.
3. Lighting component Type of light source: American CREED high-power LED chip, which has the advantages of aluminum alloy integrated molding shell, larger light projection area, farther distance, more uniform light distribution, and batter appearance.
4. Control system component
A. Discrete integrated circuit The control circuit and lighting circuit are two printed circuit integrated boards respectively, which can effectively prevent the influence of high current on the control circuit, greatly reduce the phenomenon of burning board, make the equipment run more stable and run lower fault rate.
B. Integrated gas road The integrated modular design integrates the pneumatic components to reduce the connection points by 50%, thus providing better sealing performance and a more compact and simpler structure.
C. Box limit switches The limit switches used in this product (There are 4 PTZ in two groups and 2 push rods in one group) are all famous brand products imported from Japan (Omron). In particular, the two PTZ of limit switches adopt integrated box design, with high spin angle control precision and strong reliability.
D. Built-in electromagnetic sensor This product adopts built-in cylinder electromagnetic sensor (imported from Japan), which is the first domestic and international, makes the control distance more accurate, more stable and reliable performance.
E. Dual control, through the wireless remote control and RS485 control of the telescopic mast: up and down, Lighting, rotation, and other functions.
