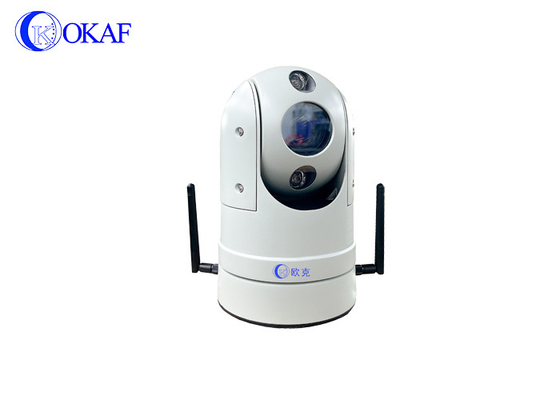

4G 1080P IR Auto Tracking PTZ IP Camera Security Dome CCTV Camera

4G 1080P IR Auto Tracking PTZ IP Camera Security Dome CCTV Camera
4G 1080P IR Auto Tracking PTZ IP Camera Security Dome CCTV Camera

Large Image :  4G 1080P IR Auto Tracking PTZ IP Camera Security Dome CCTV Camera

Product Details:
Place of Origin: China
Brand Name: Okaf
Certification: CE/FCC/RoHS
Model Number: OK-CQ50DM-4G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, Paypal, Western Union, L/C, MoneyGram etc
Supply Ability: 2500pcs per month
Detailed Product Description
Video Compression Format: H.264 /H.265 Storage: 1 SD Card, Maximum Support Of 256G
Resolution: 1080P/720P/D1 Audio: Intercom (Optical)
Wireless Network: 4G/3G/WIFI Warranty: 1year
High Light:

Intercom PTZ IP Camera

,

Auto Tracking PTZ IP Camera

,

4G 1080P dome CCTV Camera

Product description:

  1. It is an integrated emergency command wireless video product.
  2. With ultra-high equipment integration function, built-in 4G module.
  3. Optional and equipped with an HD audio speaker alarm.
  4. It has waterproof, shock characteristics, can meet the special requirements of temporary layout control and rapid installation.
  5. When performing a task or working, the equipment can be temporarily placed in the position to be monitored or directly absorbed to the vehicle, and can easily remove the equipment at the end of the task.

Product details:

● Aluminum alloy shell with lighter weight and protection level of IP66;

● High-definition image quality, 1080P, 30X 2 million pixels star-light level;

● Support 4G all-network communication and WIFI;

● Supporting GPS / Beidou positioning ( non-standard);

● High-performance H. 264 / H. 265 video coding, which saves more space;

● Support the mobile phone and remote viewing of EZVIZ or Imou Cloud Open Platform;

● Support cloud storage;

● Maximum support 256G, larger storage capacity, more stable network;

● Support two-way speech intercom ( non-standard intercom column);

● Support remote warning prompts;

● Infrared distance of 50 m;

● Support the National Standard GB28181 Platform and OKAF Police Dynamic Forensics System Platform;

● Quick installation and disassembly of the platform magnet sucker;

● Use military aircraft box to prevent fall, waterproof and extrusion;

● The client supports up to 10 clients to watch at the same time for free;

● Customers freely and arbitrarily share equipment settings, independent, safe and reliable;

● Three levels of prevention: waterproofing, dust prevention and fall prevention, suitable for all-weather field operations.

4G 1080P IR Auto Tracking PTZ IP Camera Security Dome CCTV Camera 0


Specifications:



Item Description
Camera Sensor type 1/2.8" Progressive Scan CMOS
Networking protocol IPv4, TCP/IP, UDP, HTTP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP
Signal system PAL/NTSC
Minimal illumination

Color:0.05Lux @ (F1.6,AGC ON)

Black and white:0.01Lux @(F1.6,AGC ON)

Day and night conversion mode ICR infrared filter type
Resolution 1920*1080 1280*720 D1
Color balance Automatic 1 / automatic 2 / indoor / outdoor / manual / sodium / light / fluorescent light
3D noise reduction Support
Optical zoom 20X / 30X optional
Infrared 60-80m
PTZ Protocol PELCO-D/P
Horizontal rotation angle 360°
Vertical rotation Angle -15°~90°
Preset point 256
Power supply DC12V3A

Two-way voice speaker

(not standard)

Audio output/ input Support
Frequency ring range 140hz-15kHz
Sensitivity 87dB
SPL 97dB
Audio output 1000M
Maximum decibel 120 Db
The scope of listening 100m²
Sensitivity 200mA/ubar
Size 270*110*98mm
Tone/Volume adjustable
Working voltage DC9-14V
Working environment Temperature -20℃~ +80℃
Humidity <90%
Size Main body 134*210mm
Weight Net weight: 3kg
Rough weight:4kg









Accessories:
Item Quantity
4G HD Network Vehicle PTZ Camera 1
Airline 1
12V 3A Power supply 1
Warranty card, certification, specification 1



Note : Accessories and quantities are subject to actual orders.
