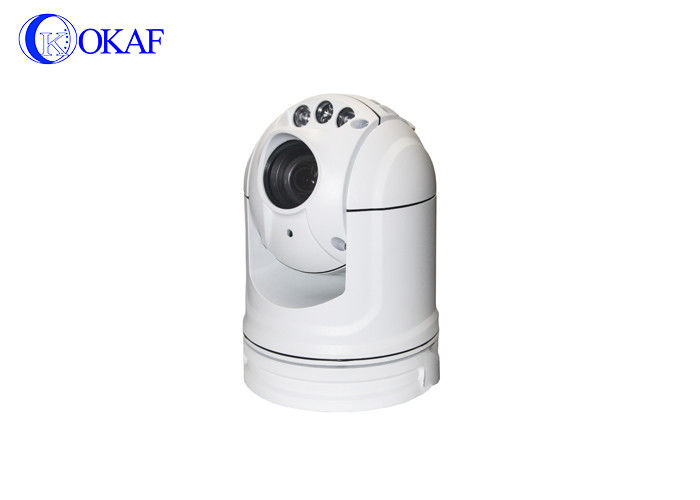

Okaf Vehicle PTZ Camera IP / AHD / SDI / Analog White Dome Auto / Manual Focusing

Okaf Vehicle PTZ Camera IP / AHD / SDI / Analog White Dome Auto / Manual Focusing
Okaf Vehicle PTZ Camera IP / AHD / SDI / Analog White Dome Auto / Manual Focusing

Large Image :  Okaf Vehicle PTZ Camera IP / AHD / SDI / Analog White Dome Auto / Manual Focusing

Product Details:
Place of Origin: China
Brand Name: Okaf
Certification: CE/FCC/RoHS
Model Number: OK-CQ50-white
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard carton
Payment Terms: T/T, Paypal, Western Union, L/C, MoneyGram etc
Supply Ability: 2500pcs per month
Detailed Product Description
External Source: 1/2.8inch Exmor CMOS Effective Pixel: 2.38 MP
White Balance: Auto/ Manual/a White Balance/atw B & W: Day And Night Auto Shift
Focusing Mode: Auto/ Manual Ingress Protection: IP 66
Working: -40 °C~65°C IR Distance: 50 M
High Light:

pan tilt zoom camera


long range ptz camera

Okaf Vehicle Ptz Car Camera IP/AHD/SDI/Analog White Dome Camera



1. Event surveillance,rapid deployment

2. Police enforcement vehicles

3. Remote surveillance,Via 4G

4. Emergency vehicle,command centers

5. Telescopic mast, CCTV trailer unit

6. Patrol ships and boats



Image Sensor 1/2.8inch Exmor CMOS
Effective Pixel 2.38 MP
Minimum illumination 0.5 Lux(Lights Off); 0.1Lux(Lights On)
White Balance Auto/ Manual/a white balance/atw
SNR ≥50dB
Electrical Shutter 1/1~1/10,000s
B & W Day and night auto shift
Digital Zoom 12x
Focusing Mode Auto/ Manual
Focal Length 4.3mm~129mm,30x
Aperture Ratio F1.6(W)~F3.5(T)
Angle of View 63.7°~2.3°(W-T)
Pan Range 360°endless
Pan Speed 0.05°~80°
Tilt Range -30°~40° (-20°~90°)
Tilt Speed 0.5°~60°
Number of Preset 255
Patrol 6 patrols, up to 18 presets per patrol
Pattern 4 , with the total recording time not less than 10 minutes
Power loss recovery Support
IR Distance 50 m
IR Angle Adjustable ,According to the focal length
RS-485 Protocols: Pelco-P, Pelco-D
Baud Rate 2400bps, 4800bps, 9600bps, 19200bps (self-adaptive)
Video Output HD, SDI, IP, ANALOG
Power Supply DC 12-24V
Power consumption 20 W
Working -40 °C~65°C
Weight 2 kg
Ingress Protection IP 66
Mount Option: Top mounting; shock absorber/optional
