| Product Name: | Security Camera,4G Camera | Style: | Dome Camera,ptz Camera |
|---|---|---|---|
| Image Sensor: | 2.0MP 1/2.8" COMS | Resolution: | 1080P,1920*1080,1080P/2.0MP |
| Technology: | NetWork,Pan / Tilt / Zoom,Infrared,4G 3G Wireless Network,Other | Special Features: | Waterproof / Weatherproof,Wifi Smart Camera 1080P HD,WIFI 4g Ptz Camera |
| High Light: | Wifi 4G PTZ Camera,Dome 4G PTZ Camera,Emergency Remoye Viewing Dome PTZ Camera |
||

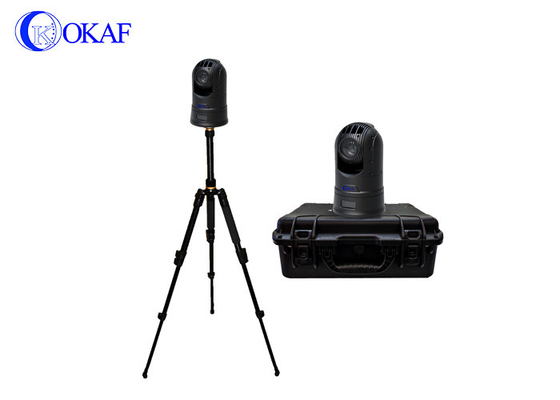

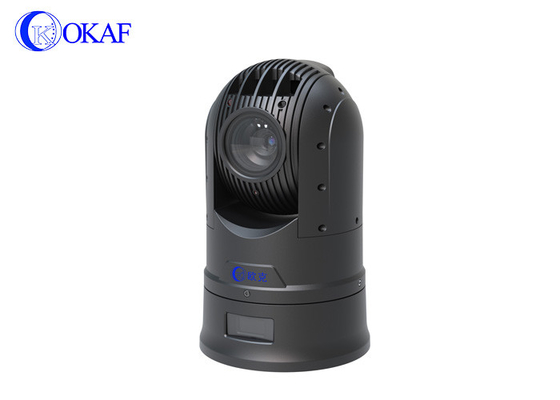

OK-CQ40DM-2-4GW is an integrated wireless video emergency command product with comprehensive functions and easy to carry. It has ultra-high equipment integration, built-in high-performance lithium battery pack, and equipped with high-definition sound quality built-in speaker alarm. It has the characteristics of waterproof and shockproof, and can meet the special requirements of temporary distribution and control and rapid installation. When performing tasks or working, the equipment can be temporarily placed in the position that needs to be monitored or directly adsorbed on the vehicle, and the equipment can be easily removed at the end of the task.
Product characteristics:
● Aluminum alloy shell with lighter weight and protection level of IP66;
● High-definition image quality, 1080P, 20X 2MP star-light camera;
● Support 4G all-network communication and WIFI;
● Supporting GPS and Beidou positioning;
● Support GPS reporting protocol, support NMEA server function, support JT / T808 protocol;
● High-performance H. 264 / H. 265 video coding;
● Support multi-protocol, national standard GB28181, mobile monitoring AI management platform and dynamic forensics platform;
● Support mobile phones and remote viewing;
● Support cloud storage;
● Battery power supply, reliable work more than 8 hours, can be directly connected to the car or external battery sustainable work;
● Support the extension of built-in battery tripod for 24 hours ( non-standard );
● Support the built-in battery with extended lighting function for more than 5 hours ( non-standard );
● Maximum support of 256G;
● Support bidirectional built-in voice intercom;
● Support Bluetooth intercom ( non-standard );
● Support remote warning prompts;
● Infrared distance of 50 m;
● Supporting power, positioning and 4G display state;
● The magnet sucker of the camera is quickly installed and can be disassembled at any time.
● Use military aircraft box to prevent fall, waterproof and extrusion ;
● Supports 10 clients to watch at the same time free of charge ;
● Customers freely and arbitrarily share equipment settings, independent, safe and reliable;
● Three levels of prevention: waterproofing, dust prevention and fall prevention, which are suitable for all-weather field operations.
Parameters:
| Project | Description | |
|
Video |
Video compressed format | H.264 /H.265 |
| Double stream | Support | |
| Resolution | 1080P/720P/D1 | |
| Preview function | Live video, video preview | |
| Audio | Intercom partner | Optional |
| Storage | Local store | 1 TF card, Max. 256G |
| Wireless network | 4G/3G | Built-in 4G all-network communication module, compatible downward |
| WIFI | Built-in WIFI module supports 802.11b/g/n | |
| Position | GPS and Beidou | Dual mode positioning |
| Extension interface | RJ45 network interface, RS485, charging interface, audio input and output interface | |
| Platform access | Support multi-protocol, support national standard GB28181, smart party building + mobile monitoring AI management platform and smart party building + dynamic forensics platform | |
| Camera | Sensor type | 1/2.8" Progressive Scan CMOS |
| Network protocol | IPv4, TCP/IP, UDP, HTTP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP | |
| Signal system | PAL/NTSC | |
| Minimal illumination |
Color: 0.05Lux @ (F1.6, AGC ON) Black and white: 0.01Lux @(F1.6, AGC ON) |
|
| Day night mode | ICR infrared filter type | |
| Resolution | 1920*1080 1280*720 D1 | |
| White balance | Automatic 1 / Automatic 2 / Indoor / Outdoor / Manual / Sodium light / fluorescent light | |
| 3D noise reduction | Support | |
| Optical variable times | 30X | |
| Infrared | ＞50 meters | |
|
PTZ Camera |
PTZ Agreement | PELCO-D/P |
| Horizontal rotation Angle | 360° | |
| Vertical rotation Angle | -15°~90° | |
| Preset point | 256 | |
| Power supply | Battery | 12AH |
| Charging time | 4 hours | |
| Work hours | 8 hours | |
| Two-way voice speaker | Audio output | Support |
| Bluetooth | Support (Bluetooth handle is not standard) | |
| Working environment | Temperature | -20℃～ +80℃ |
| Humidity | <90% | |
| Size | Main body | 160*210mm |
| Weight | Net weight: 4kg | |
| Gross weight: 7.5kg | ||
Accessories:
| Items | Quantity |
| 4G HD Rapid deployment Camera | 1 |
| Airline | 1 |
| 12.6V 5A charger | 1 |
| Tripod | 1 |
| Built-in battery tripod (non-standard) | 1 |
| Emergency solar lighting: 20 watts (non-standard) | 1 |
| Waterproof air box | 1 |
| Internet of Things card ( customer recharge ) | 1 |
| Warranty Card, Certificate, Specification | 1 |
Note: Distribution and quantity are based on actual orders.
