Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5G/4G AI Intelligent Video Analysis Deployment PTZ Camera With Suitcase | PTZ Camera: | 1920*1080P 20x / 30x Optical Zoom |
|---|---|---|---|
| Network: | 4g/wifi/ap | AI Function: | Ace Recognition, License Plate Recognition, Smoking Detection, Helmet Detection Functions |
| Audio: | Support Two-way Video Intercom | System Running Time: | 8~10 Hours After Full Charge |
| Highlight: | Video Analysis Deployment 4G PTZ camera,Suitcase 4G PTZ camera,Suitcase Intelligent PTZ Camera |
||

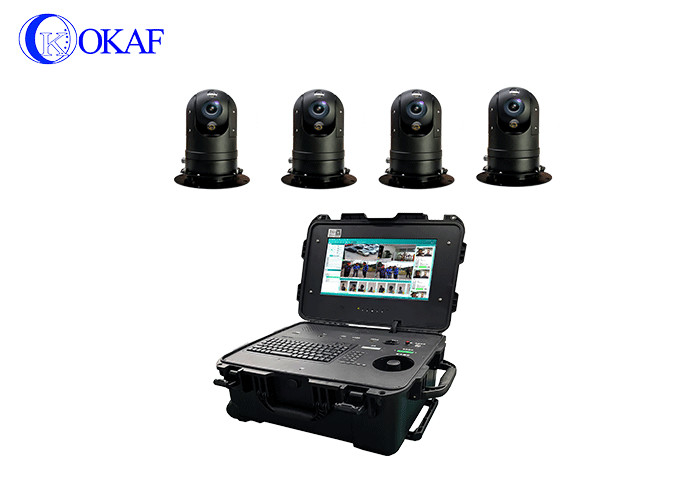

5G/4G AI Intelligent video analysis deployment PTZ camera with Suitcase
Specification of 4G AI deployment Control box
OK-BXCQ50DM-AI Intelligent video analysis deployment control box, through wireless 4G, WiFi, maritime satellite BGAN, broadband satellite, wired network, to conduct meetings with members of the command center or other related equipment, upload live video images. This advanced remote presentation solution solution enables the relevant leaders to understand the situation on site and obtain first-hand information in a timely manner, providing technical support to achieve "smooth communication, timely site, complete data and command in place" for emergency command.
Features of 4G AI PTZ camera deployment Control box
★ With face recognition, license plate recognition, smoking detection, helmet detection functions
★ Support two-way video intercom, cluster call, cluster scheduling, dispatching instructions.
★ Embedded Retina HD touch display and joystick control panel
★ Built-in GPS and Beidou hybrid positioning module
★ Support dual TF card storage, and the maximum support of a single card is 256g
★ Support OKAF iCVS cloud video management platform, command center dispatch console
★ Network wide adaptation, supporting 4g/wifi/ap, etc.
Application: It is suitable for government, industry, enterprise emergency command, temporary deployment of major events/activities, daily patrol/inspection, emergency rescue and other occasions. It can be widely used in emergency, public security, fire protection, criminal investigation, traffic patrol, civil air defense, border defense, urban management, electric power, petroleum and petrochemical, water conservancy, road administration and other fields.
Technical data
| Item | Details | Performance description |
| Video | Input | One way network HD video. Top support 1080P@30fps |
| interface | Aviation interface on the right side of the box | |
| compression standard | H.265和H.264 | |
| Resolution | Support 1080P,720P,VGA | |
| Frame | 1~25 optional | |
| stream | Support dual stream, 64kbps~6Mbps can be set | |
| video adjustment | Brightness, contrast, saturation, etc. can be adjusted | |
| capture | Support capture of different input sources and resolutions format JPEG | |
| Audio | compression standard | G711A,G711U和ADPCM |
| Input | One way. Built-in microphone or hand microphone input | |
| Output | One way.Built-in microphone or hand microphone output | |
| Display | screen size | 15.6 inch |
| Resolution | 1920×1080 | |
| Viewing angle | 88/88/88/88 | |
| Network | 3G/4G | WCDMA,EVDO,TD-SCDMA,TDD-LTE,FDD-LTE |
| WiFi | 802.11b/g/n,2.4G | |
| Wired | RJ45,10/100M Adaptive Ethernet port | |
| Storage | TF card | Double TF card,Single card max support 256G |
| mSATA | Built in mSATA Electronic disk mounting position | |
| U disk | Lower panel 2 USB Port | |
| Format | AVI,Support 15~60 Minutes can be set,Button control start and stop | |
| Position | Standard | Support GPS & Beidou dual module position |
| Antenna | SMA port,External | |
| Power | Input | 12.6V@4A DC regulated input |
| Interface | Right side of box DC5.5*2.5 port | |
| Battery | Built-in three lithium batteries,30Ah | |
| Others | Protection grade | IP67 |
| Dimension | 410 mm×340 mm×205mm | |
| Weight | 13.6KG | |
| System running time | 10h | |
| working environment | Temperature -20℃~65℃. Humidity 5%~95% |
