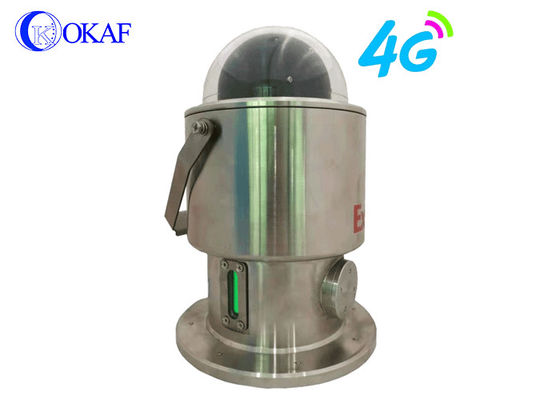

LTE Transmission Explosion Proof 4G PTZ Camera 25W IP67

LTE Transmission Explosion Proof 4G PTZ Camera 25W IP67
LTE Transmission Explosion Proof 4G PTZ Camera 25W IP67

Large Image :  LTE Transmission Explosion Proof 4G PTZ Camera 25W IP67

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE/FCC/ROHS
Model Number: OK-CQ60DM-IP-2-4GWG-EX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negociate
Packaging Details: Standard export carton
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 units/ month
Detailed Product Description
Product Name: Explosion Proof 4G PTZ Camera Mobile Surveillance Fast Deployment Portable CCTV Camera Material: Explosion Proof Stainless Steel
Function: 4G LTE Transmission, Remote Real Time Viewing Power Supply: Lithium Battery, 10A
Running Time: 8~10 Hours After Full Charge Charge Time: 4~6 Hours
Camera Lens: 20x/ 25x /30x Optical Zoom Accessories: Tripod, Suitcase, Charger
High Light:

Explosion Proof 4G PTZ Camera


LTE Transmission 4G PTZ Camera


25W Mobile Surveillance CCTV Camera

Explosion Proof 4G PTZ Camera Mobile Surveillance Fast Deployment Portable CCTV Camera



• Stainless steel housing, explosion proof.
• High definition image 1080P, 2.0 megapixel.
• Support 4G full Netcom cards, WIFI, and GPS, built-in antenna.
• High-performance H.264 and H.265 video encoding.
• Use dual TF card, maximum support 128G, larger storage capacity, more stable network.
• Battery powered, reliable work for more than 12 hours.
• Magnet suction cup can be installed quickly and can be removed at any time.
• Support tripod fast deployment at anywhere anytime.

• Its manufacturing meets the requirements of GB3836-2010 standard, and adopts scientific flameproof structure to meet IIC explosion-proof requirements.
• Perfectly compatible with Hikvision monitoring software, supporting remote access of EZVIZ Cloud Ehome 28181
• With 1 outlet or explosion-proof plug, TPU material composite cable output.

• Support bluetooth intercom.


Advantages of explosion proof 4G deployment PTZ camera
Exquisite and small design. Using high-strength stainless steel material, it has the function of anti-vibration, impact resistance and corrosion resistance. The camera has an anti-falling design,more safety. Lithium battery power supply and strong magnetic chassis design.Quick and easy installation.The latest design technology can effectively prevent fogging. Equipped with high-performance infrared light, the IR night vision distance can reach more than 50 meters.
♥ Extensibility: The developed SDK is convenient for secondary development.
♥ Flexibility: dual-platform access, OKAF police platform and OKAF dynamic forensics platform.
♥ Peripheral access: support access to individual law enforcement system, mobile squatting point 4G deployment control system, police vehicle forensics system access.
♥ Three-proof level: waterproof, dustproof, and drop-proof, suitable for all-weather field operations.


Technical data

Camera model OK-CQ60DM-IP-2-4GWG-EX
Explosion-proof parameters Explosion-proof mark Ex d IIC T6 Gb/Ex tD A21 IP67 T80℃
Protection level IP67
Camera parameters Image sensor 1/2.8type EXmor CMOS
Pixel 2.0Megapixels
Illuminance 0.1 lux (F1.6, automatic gain control on, 1/30 sec) 0.008lx(ICR-ON;1/30sec)
Lens f=5.1~135mm, 30x Optical zoom
Parameter adjustment White balance, automatic gain control AGC, backlight compensation BLC
Signal to noise ratio


Electronic shutter 1/1 s- 1/10,000 s

Port function

Network Interface

10BaseT / 100BaseTX, RJ45

Cellular and wireless networks






Video Video compression H.264
Image Resolution 25/30P
Multi-stream HD + D1
Rate control mode VBR/CBR
Data transmission and storage
Data storage Automatic / manual recording, support TF card
Night vision IR infrared light 850nm IR light
Night vision distance 60m
PTZ parameters

Horizontal range


Horizontal speed 0-120°/S
Vertical range -15°~+90°
Vertical speed 0-60°/S
Preset position 128 preset position
cruise 8 cruises tracking
Pattern scanning 3
Protection grade IP67
Others Working temperature and humidity -35°C~+55°C ;98%
Power supply DC 12.6V/ built in battery
Battery capacity 11.1V 10000mAH
Power 25W
Weight 8KG
