Product Details:
Payment & Shipping Terms:
|
| Sensor: | CMOS | Special Features: | Waterproof / Weatherproof |
|---|---|---|---|
| Technology: | Pan / Tilt / Zoom | Resolution: | 1920*1080 |
| Type: | 4G Camera/ IP Camera/ Wifi Camera/ PTZ Camera | Product Name: | Medium Speed PTZ Camera |
| High Light: | Helmet Detection CCTV PTZ Camera,Face Recognition CCTV PTZ Camera,20x Optical Zoom Portable PTZ Camera |
||

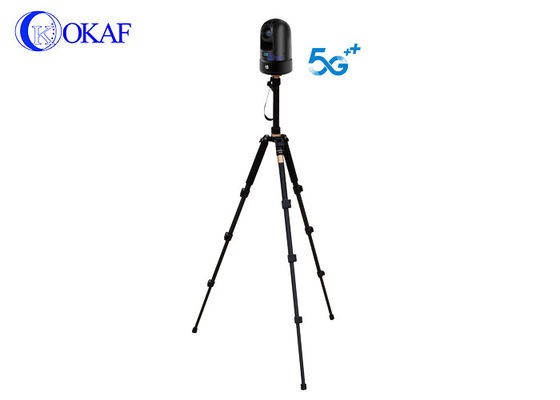

Face Recognition Helmet Detection 5G 4G AI Portable PTZ Camera 20x Optical Zoom
Specification of 5G 4G AI Portable PTZ camera
OKAF OK-CQ60DM-5G+AI portable intelligent PTZ camera has been designed for temporary rapid deployment High definition mobile surveillance. The camera support 4G 5G remote wireless real time transmission,configure AI smart algorithm: Face recognize, License Plate Recognition, Reflective vests, Mask detection, Smoking detection, Safety helmet detection etc function. It provides ultra-high-definition, smooth and stable video effects for users. The system realize storage, transmission, positioning, intercom and other functions, which assist user units in daily visual inspection, mobile law enforcement monitoring, emergency command and dispatch, and intelligent application of safe production and other business management.
Application of 5G 4G Portable PTZ Camera
OKAF 4G 5G +AI portable deployment PTZ camera has been widely applied to police, traffic, court, Fire fighting, Urban management, Armed police, defense, electricity,railway, oilfield and construction sites.
Technical data of Rapid deployment 5G 4G Portable PTZ camera
| Video | |
| Lens | Starlight level 2.0MP 30x Optical zoom camera |
| Infrare | 50~100m infrared,Automatic switching between day and night |
| PTZ | Pan: 360°；Tilt -20°~90° |
| Video compressor | H.265/H.264 |
| Stream | Support dual stream |
| Video resolution | 1080P/720P/VGA |
| Bit rate | 64Kbps~10Mbps optional |
| Frame rate | 1~30fps optional |
| Audio | |
| Audio input | Built-in microphone, optional wired microphone, Bluetooth microphone |
| Audio output | Built-in speaker, wired microphone, Bluetooth microphone |
| Encoding algorithm | G711A/G711U/AAC |
| Network | |
| 4G/5G | 5G NSA & SA,Backward compatible 4G |
| Ethernet | 10/100M Adaptive full duplex |
| WiFi | 802.11a/b/g/n/ac,2.4G&5G |
| Storage | |
| Storage medium | Built-in two self-elastic TF card slots, single card supports up to 256G |
| Position | |
| Position | Support Beidou and GPS dual-mode positioning |
| Power supply | |
| Power input | 13.5V@4A adpter input |
| AI | |
| Smart function | Support face detection, face recognition, license plate recognition and helmet detection |
| General | |
| Dimension | 180mm ( Diameter) ×255mm ( Height ) |
| Weight | 4.2kg |
| Protection grade | IP66 |
| Working environment | -25℃-60℃；<98% |
Advantages of OKAF 5G + AI portable PTZ IP camera
♥ Support 4G/5G remote wireless video transmission, real-time smooth image.
♥ Dual TF card storage, single card can support up to 256G.
♥ Built-in high-capacity lithium battery, can work continuously for more than 10 hours
♥ Built-in screen in the fuselage, real-time display of working status.
♥ Integrated structure design, protection grade IP67.
♥ Starlight class HD camera movement, 4K ultra-clear movement also optional.
♥ 50~100 meters infrared night vision, can realize day and night deployment control.
♥ 360-degree omnidirectional pan/tilt, support 3D centering zoom function.
♥ Support through Bluetooth communication to realize two-way voice intercom and cluster intercom.
♥ Support Beidou/GPS dual-mode positioning, built-in antenna.
♥ Support face detection, face recognition, license plate recognition, reflective clothing, masks, smoking, helmet detection functions.
♥ Built-in Wifi, you can use mobile phones and tablets to preview videos.
