Product Details:
Payment & Shipping Terms:
|
| Protocol: | Standard ONVIF Protocol | Keyword: | Thermal Imaging Camera |
|---|---|---|---|
| Image Sensor: | 1/2.8" CMOS | Optical Zoom: | 20X |
| Focal Length: | 50mm | Signal: | IP/analog |
| Lens: | Optional | Warranty: | 1year |
| High Light: | thermal imaging cctv security cameras,long range ptz ip camera |
||

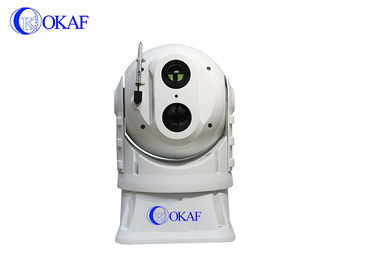

360 Degree Thermal Imaging Camera Waterproof Remote Detection PTZ
System
Specifications:
1. uncooled, 384×288 pixel
2. small size, it can be installed in all kinds of high speed dome and used in small shield.
3. Several lens for choice
4. Manually without thermalization prime lens, the lens focal length is not affected by high
and low temperature environment
5. Control way: RS485, built-in PELCO-D/P protocol:
6. With grayscale alarm function, alarm level could be set；
PTZ camera:
1. Initiate independent defrosting and defogging module in China,solve the problem of camera lens
fogging due to different temperature indoor and outdoor in real sense.
2. The camera machinery room adopts high quality heating components to make the whole room defrosting
and defogging.
3. PTZ camera adopts integration structure of axis, so the camera machinery room
and infrared room would not misplace due to jolt.
4. Standard original voltage regulator module, filter transient instability current of vehicle
and keep PTZ camera stable.
Parameters:
| Items Model | OK-CQ100DMTI | |
| sensor performance | Sensor Element | Uncooled focal plane type slight fever |
| pixel | 384×288 | |
| image space-between | 25 um | |
| NETD | ≤100mK@f/1,300K | |
| Field Frequency | 50HZ | |
| wavelength coverage | 8-14um | |
| Lens | focal length | 50mm |
| field angle | 11°*8.2° | |
| Avoid focusing range | 23m~∞ | |
| lens type | Fixed focus without heating up | |
| Thermal operation | luminance/gain adjustment | Manual Brightness /Gain；Auto Brightness/Manual Gain；Auto Brightness/Gain |
| Black and thermal/ white thermal/ | ||
| Digital Zoom | 2x | |
| Calibration to Tag | Auto / Manual | |
| Noise reduction features | yes | |
| Image enhancement | yes | |
| Auto Brightness/Gain setting | 2 fixed model,8 User-defined Settings mode. | |
| Gray alarm | instrument built-in ,6 grade of recovery | |
| power system | External source | 10-15V DC |
| Power Consumption | ≤2W(normal working temperature 25°C) | |
|
enviromental parameter
|
Working temperature | -20℃-+50℃ |
| Storage temperature | -40℃-+65℃ | |
| Size | Please check the picture of SIZE | |
| Power interface | YES | |
| video output | PAL | |
| Alarm | switching signal(used to Gray alarm) | |
| Serial port | RS485(PELCO-D/P) | |
| Human(detect) | 1650m | |
| Vehicle(detect) | 2300m | |
| Human(recognize) | 550m | |
| vehicle(recognize) | 750m | |
| PTZ function | Preset pan speed | 100°/S |
| Preset tilt speed | 80°/S | |
| Manual pan speed | 0°—60°/S | |
| Manual tilt speed | 0°—40°/S | |
| Pan range | 360° rotating | |
| Tilt range | -90°—+90° | |
| Preset positions | 256 positions,6 tracking | |
| Control Method | RS485,built-in16 ways,baud rate:2400Bps~19200Bps optional | |
| Relative humidity | <90% | |
| IP rating | IP66 | |
| Working environment | -35°C—+55°C | |
| Power supply | DC10.8V-DC18V | |
| Shock request | ≥4G | |
| wiper function | Support | |
| Installation | Various installation options are available depending on the application environment | |
| weight | 6kg | |
| Network parameter | video compression | H.264/H.265 |
| audio compression | G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726 | |
| Compress the output bit rate | 32Kbps—16Mbps | |
| standard |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP, FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional),GB28181 |
|
| interface protocol | ONVIF/PSIA/CGI/ISAPI | |
| communication protocol | PelcoD-P | |
| intelligent alarm | Motion detection, occlusion alarm, memory full, memory error | |
| Preview video at the same time | More than 10 channel | |
| dual-stream | 960P+D1 | |
| user right | Up to 32 users, 3 levels:Administrators, operators and ordinary users can only browse | |
