Product Details:
Payment & Shipping Terms:
|
| Product Name: | Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer | Camera Type: | PTZ Camera / Bullet Camera Optional |
|---|---|---|---|
| Resolution: | 1920x1080 / 2560x1440 /4K Optional | Optical Zoom: | 20x /33x /40x Optical Zoom Optinal |
| Telescopic Mast: | 6m ( 3 To 12m Optional) | Solar Panel: | 3*120 / 3*200 / 3*300W/3*400W Optional |
| Battery: | 2400Wh / 4800Wh /7200Wh /9600Wh Or More | Mobile App: | Including Mobile App For Online Video |

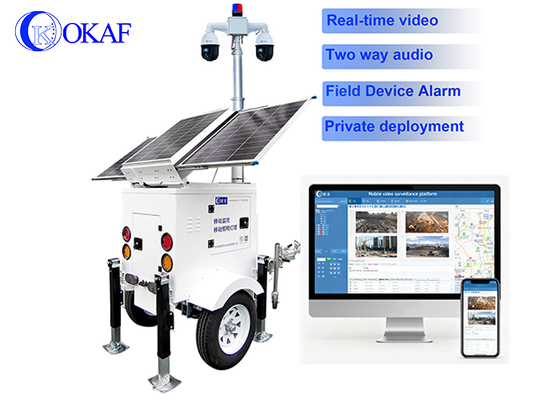

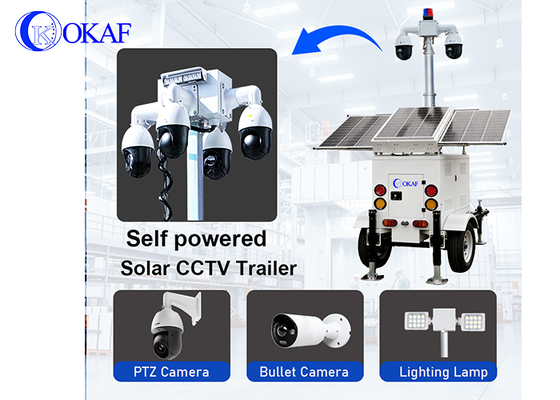

Off-grid Monitoring 24/7 Security Solar System 3x200W CCTV Tower 4G SIM Card Camera 6m Telescopic Mast Trailer
|
CCTV Surveillance camera
|
Camera type
|
Network IP PTZ camera
|
|
Pixel
|
2.0MP /4MP
|
|
|
Resolution
|
1920*1080 @ 30fp
|
|
|
Focal length
|
f=5.4~108mm, 20x optical zoom
|
|
|
Pan range
|
360° continuously rotation
|
|
|
Tilt range
|
-15°~ +90° rotation
|
|
|
Network port
|
RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
|
|
|
Support
|
Area intrusion alarm
|
|
|
Video Transmission & storage
|
Video input
|
4 channel network 1080P, aviation interface
|
|
Video output
|
1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω
|
|
|
Preview function
|
Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function
|
|
|
Video resolution
|
Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P
|
|
|
Audio input
|
4channel, Aviation interface
|
|
|
Audio output
|
1channel
|
|
|
Alarm Output
|
2-way switch output, linked audible and visual alarm, oil and power off, etc.
|
|
|
communication interface
|
2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc.
|
|
|
|
2 way 485 interface, can extend PTZ
|
|
|
|
2-way CAN bus interface
|
|
|
Wireless transmission
|
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
|
|
|
Position
|
Support built-in GPS / BD module, can report to the platform.
Anti theft. |
|
|
Hard disk
|
Support large capacity 2.5-inch hard disk (maximum 4TB)
|
|
|
Power supply
|
Solar panel
|
Monocrystalline silicon
|
|
Solar Power
|
3*120W / 3*200W / 3*300W/ 3*435W optional
|
|
|
Solar controller
|
MPPT solar controller, 95% efficiency
|
|
|
Battery type
|
Lithium battery / Gel battery optional
|
|
|
Battery capacity
|
200Ah / 400Ah / 600Ah /800Ah optional
|
|
|
Battery charge time
|
6 hours
|
|
|
Battery running time for 50W
|
about 48 hours (2 days)
|
|
|
Battery charger
|
AC110~ AC240V
|
|
|
Telescopic mast
|
Mast Type
|
Pneumatic telescopic mast
|
|
Mast height
|
Full height 6m. retracted height 1.8m. Maximum diameter 113mm. 5 sections ( 3 to 10m optional)
|
|
|
Top Payload weight
|
40KG
|
|
|
Material
|
Alumium alloy
|
|
|
Wind speed
|
8 level. 66km/h
|
|
|
Internal cable
|
1*CAT5 + 2*1.0 power wires
|
|
|
Trailer body
|
Material
|
Galvanized sheet, outdoor anti-corrosive power coating.
|
|
Trailer type
|
US standard, Ball hitch,single axis
|
|
|
Wheel's Rim Size & Tires
|
15 inch Tire
|
|
|
Trailer speed limit
|
80km/h
|
|
|
Handbrake
|
Support
|
|
|
Outrigger
|
4* Manual lifting outriggers
|
|
|
Inverter
|
Support AC110V ~AC220V output
|
|
|
Anti thief
|
Built in GPS
|
|
|
IP rating
|
IP65 waterproof for outdoor use
|
|
|
Low temperature storage
|
-55℃
|
|
|
Low temperature work
|
-20'℃
|
|
|
High temperature storage
|
70 ℃
|
|
|
High temperature work
|
55℃
|
|
|
Weight
|
400KG
|
|
|
|
Packed in container
|
4 Units in 20ft Container. 8 units in 40ft containe
|
