Product Details:
Payment & Shipping Terms:
|

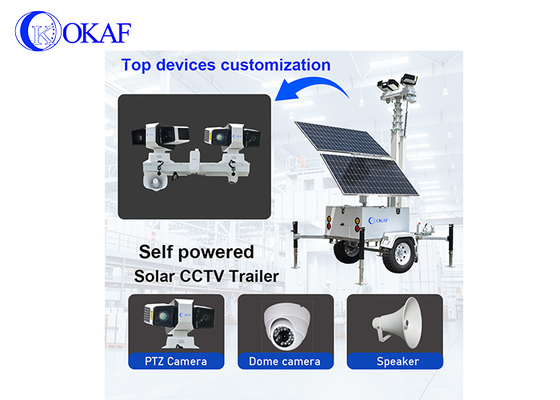

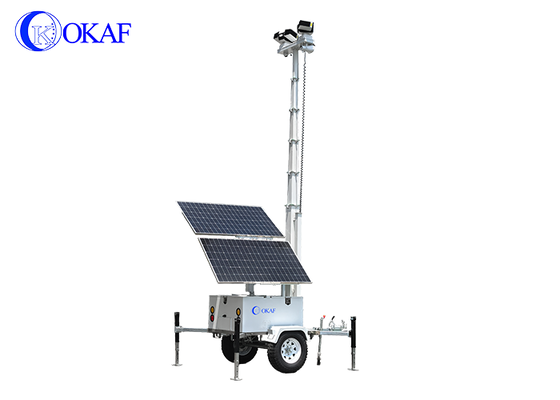

| Product Name: | Off-Grid Solar-Powered Mobile Surveillance System 12m Telescopic Mast Solar CCTV Security Trailer For Construction Site | Camera Type: | Long Range PTZ Camera / Dome Camera / Bullet Camera Optional |
|---|---|---|---|
| Camera Resolution: | 1920x1080 / 2560x1440 Optional | Camera Optical Zoom: | 25x /33x 46x /80x Optional |
| Night Vision: | 100m / 200m/ 1km /2km Optional | Telescopic Mast: | 6m Square Electric Telescopic Mast ( 3 To 12 Optional ) |

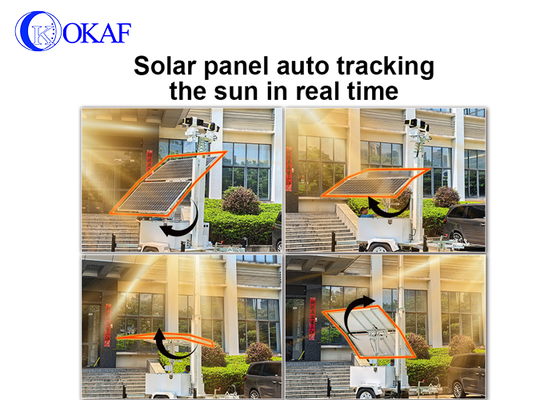

| Solar Panel: | 2x450W Total 900W | Automatic Solar Tracking System: | Solar Panels Can Rotate Automatically And Follow The Sun In Real Time |
| Battery Capacity: | 9600Wh | Battery Life: | 5~7 Days After Full Charge |
● 2 Pcs 2MP 80x optical zoom HD PTZ camera, 1 Pcs dome camera for down side monitoring. Support area intrusion alarm.
● Supports 4G /wifi wireless transmission, remote real-time video.
● With speaker, support remote talk.

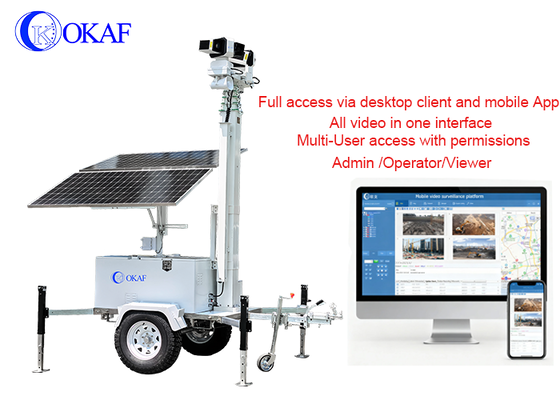

● OKAF mobile monitoring and command platform supports computer client, IE and mobile APP viewing and control, and supports command center multi-screen real-time preview, image capture and recording, main and sub-stream switching display, and instant playback. 4G, WIFI and LTN multiple signal transmission modes, data transmission is safe and smooth
● Solar power 2*450W total 900W Monocrystalline silicon solar panel. With MPPT solar controller,95% efficiency.
a|
Model
|
OK-PRO10
|
|
CCTV surveillance system
|
|
|
PTZ camera
|
25x Optical zoom 1920×1080P
|
|
Frame rate
|
25/30 fps
|
|
Audio and video frequency compression
|
H.264/H.265
|
|
Horizontal and up and down angles
|
Pan range 360°,tilt range＋15°～－90°
|
|
focal length
|
f=4.8~120 mm ,25x optical zoom
|
|
Wireless transmission
|
4G/ WIFI
|
|
storage
|
2TB hard disk
|
|
Speaker
|
Support remote talk
|
|
Power Supply
|
|
|
Battery capacity
|
4*DC12V 200Ah gel battery, total 9600Wh
|
|
Charging method
|
Support AC110V~240V charging
|
|
Solar power
|
2*450W total 900W Monocrystalline silicon solar panel
|
|
Solar controller
|
MPPT Solar controller, 95% efficiency
|
|
Lifting system
|
|
|
Telescopic mast
|
6m electric telescopic mast. Maximum payload weight 50kg.
|
|
Lifting way
|
Wired or wireless remote controller
|
|
Material
|
Steel
|
|
Wind resistance
|
19m/s work normally with guy wires.
|
|
Trailer body
|
|
|
Material
|
Galvanized sheet material, with rust resistant primer and multiple layers of topcoat, which is not easy to rust.
|
|
Trailer structure
|
Hanging structure extends the wall, which can be disassembled and adjusted in length for convenient transportation
|
|
Trailers and supports
|
5 points support
|
|
Tires and steel rims
|
R15/165
|
|
Trailer shock absorber
|
Steel plate shock absorption
|
|
Trailer style
|
ball type
|
|
Brake system
|
Standard handbrake system. With standard brake taillights to prevent accidents.
|
|
Warning
|
With white and blue strobe lights for warning.
|
|
Low temperature work
|
-25℃
|
|
High temperature work
|
65°C
|
|
Humidity
|
Less than 90%(25°C)
|
|
Rain
|
Intensity 6mm/min, duration 1h
|
