4G AI Camera Solar-Powered Mobile Security Cabinet for Construction Site Monitoring

Large Image : 4G AI Camera Solar-Powered Mobile Security Cabinet for Construction Site Monitoring

Product Details:

Place of Origin:	China
Brand Name:	OKAF
Certification:	CE
Model Number:	OK-PRO3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Wood box
Delivery Time:	15~20 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 units / month

Contact Now

Detailed Product Description

Product Name:	4G AI Camera Solar-Powered Mobile Security Cabinet	Camera Type:	4G AI PTZ Camera
Camera Resolution:	2MP, 1920X1080P	Camera Zoom:	20X /30X Optical Zoom
Solar Panel:	2x45W +1X30W Total 120W Solar Power	Battery Capacity:	DC12V 100Ah Lithium Battery
Telescopic Mast:	2m Manual Lifting Telescopic Mast	AI Function:	Face Recognize,safety Helmet/smoking Detection, Area Intrusion Alarm
Cabinet Design:	Small Dimension , Suitcase Design, Easy Transport For Mini Van,SUV, Car	System Running Time:	About 2~3 Days

PRODUCT OVERVIEW

Mobile Surveillance Cabinet Product Composition

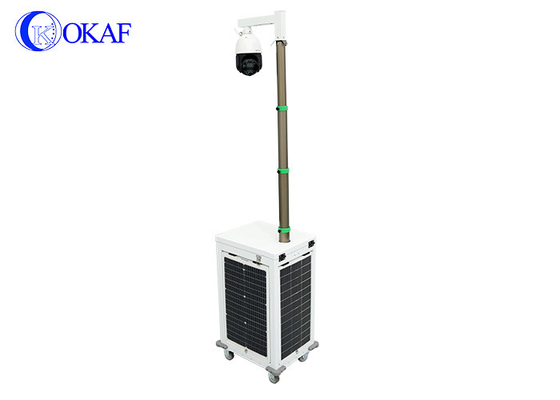

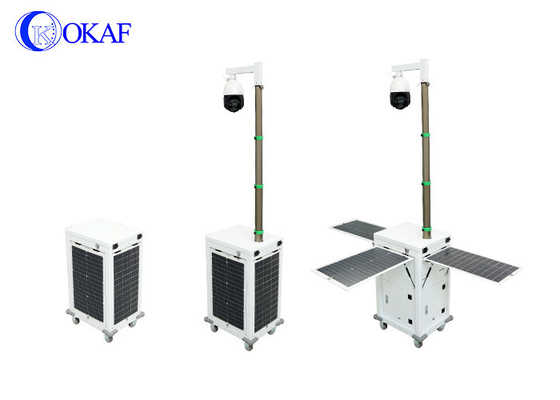

OK-PRO3 is mainly composed of 4G PTZ camera, lifting system, solar and battery power supply system, and cabinet body. It is a mobile evidence collection system designed for large-scale projects and events. Integrated Design,easy to install and operate, with a flexible body and wheels for fast deployment and movement. Features a telescopic mast , height-adjustable. HD 360° rotating camera supports 4G (5G version available upon request) wireless transmission. Equipped with a built-in battery pack offering up to 100 hours of operation (depending on battery size), supporting both mains and solar power supply, as well as speaker. Customization. Customize AI function such as face recognition, safety helmet detection, jacket detection, smoking detection and area intrusion alarm etc.

Key Features of OK-PRO3

● 360° Rotating Camera: Equipped with a 20x optical zoom 2MP (1920x1080P) HD camera featuring an 80m infrared range.

● Manual Telescopic mast :extended height: 2m,retracted height: 0.6m. 4 sections.Maximum outer diameter: 75mm, minimum inner diameter: 55mm. Aluminum alloy material, Built-in internal cable.

● Secure Wireless Transmission: Supports 4G private network transmission (enhanced security).

● Local Storage: TF card slot with 512GB capacity (up to 40 days of recording).

● Alarm System: 2-channel alarm input and 2-channel independent alarm output.

● Audio Functionality: 20W high-power speaker for remote talk.

● Customized AI Functions: Face recognition, safety helmet detection,smoking detection, area intrusion alarm. Named voice alerts for violations (e.g., no safety helmet, no wear jacket, smoking)

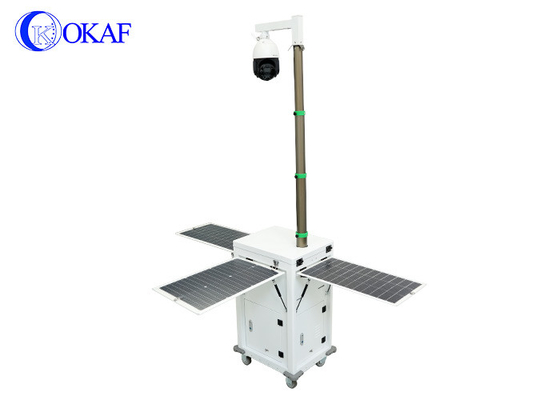

● Multi-Power Supply: 120W foldable solar panels (3 panels) enable 24/7 operation. 100AH battery provides over 50 hours of runtime. Low-voltage protection (automatic activation below 9.5V, extends battery lifespan by 1 year). ● Portability: Compact dimensions: 0.8m (height) × 0.35m (width) × 0.45m (length).

● Lightweight: 45kg, with adjustable telescopic handle for easy transport via car, SUV, pickup, or van.

● Network Compatibility: Supports private platform deployment, multi-platform integration, OKAF mobile video surveillance platform, mobile AI management platform.GB28181. Customizable mobile monitoring platform with real-time viewing/control via PC client, IE, and mobile app.

● Certifications: ISO 9001, ISO 14001, MA/ilac-MRA/CNAS testing reports, and multiple patents (invention and design).

ADVANTAGES

Advantages of OKAF Mobile surveillance cabinet:

● Flexible Mobility: Mobile front-end monitoring equipment offers enhanced flexibility in deployment.

● No Fixed Location/Wiring: Eliminates the need for fixed installation points or cabling, reducing setup costs.

● Plug-and-Play: No disassembly required—ready-to-use upon installation with user-friendly operation.

● Portable Design: Compact and lightweight, can be loaded/unloaded by one person via vehicle.

● Rapid Deployment: Single-operator setup completed in 2 minutes for emergency response needs.

● Manual Telescopic Mast: Adjusts to cover all distances and heights, eliminating surveillance blind spots.

● Durable Construction: Reinforced metal body with galvanized anti-corrosion brackets for extended service life.

● Long-Lasting Power: Single charge supports 2–3 days of continuous operation.

● Backup Charging: Enables uninterrupted operation via dual power supply modes.

● Multi-Mode Connectivity: Secure and seamless data transmission via 4G, WIFI, and LTN.

● AI Expansion Options (Non-Standard): Face recognition, safety helmet detection,smoking detection, area intrusion alarm etc.

APPLICATION

Application Scenarios:

Large-scale smart construction sites, highways, large-scale events (e.g., marathons), water and power utilities, and other locations requiring temporary monitoring, safety management, production command, and dispatch.

TECHNICAL DATA

Model	OK - PRO3
Camera
Resolution	1920 x 1080P
Video Compression	H.264/H.265
Zoom	20x optical zoom
Infrared Distance	60m night vision
Voice Intercom Speaker	Supported
Network Protocols	IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP, UDP, IGMP, ICMP, ARP
Wireless Transmission	Built - in 4G wireless transmission function (5G can be customized).
Storage	Supports TF card storage, with a maximum single - card capacity of 512G
Input Voltage	DC12V
Telescopic mast
Material	Aluminum alloy
Extended height	2m
Closed Height	0.6m
Lifting way	Manual lifting
Wind Resistance	Can work normally under level 8 wind (ground nails for reinforcement are supported)
Safety	Self - locking at any height, no height drop over time
Power supply system
Battery Power	12V 100AH
Battery Type	Lithium iron phosphate
Solar panel	245W + 130W total 120W solar panel
Charge - Discharge Cycles	＞500 times
Battery Level Display	Supports percentage and voltage display
Low - Voltage Protection	Automatically enters protection mode when the voltage is below 9.5V. The battery can continue to be used for 1 year under low - voltage conditions.
Output Voltage	12V
Maximum Instantaneous Output Voltage	20A
Cabinet
Structure	Suitcase design
Material	Galvanized sheet
Dimensions	Length: 520mm * Width: 420mm * Height: 900mm
Weight	Approximately 40 kg (including the top dome camera box)
Wheels	4 Wheels, 2 of wheels with brake
