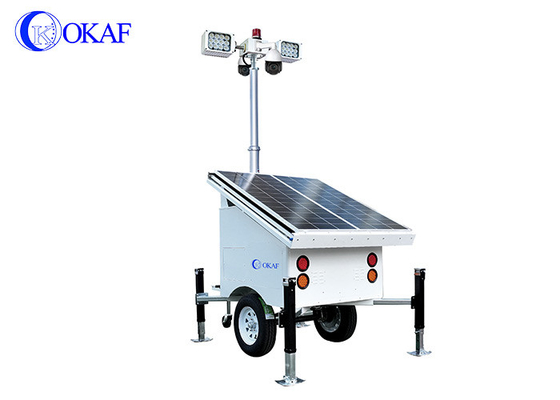

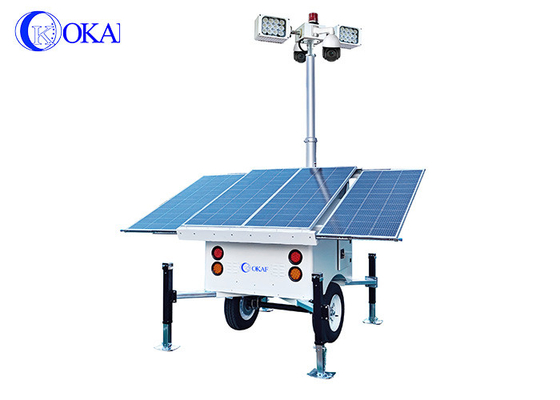

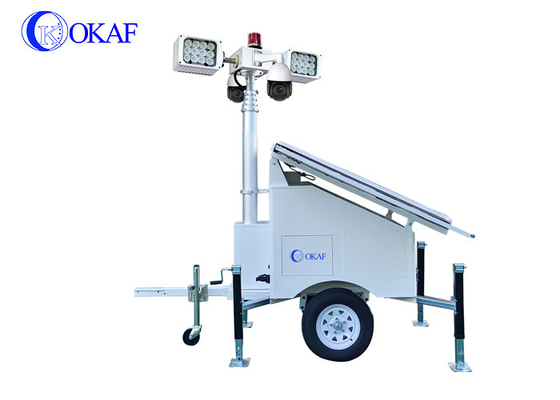

OKAF Construction Site Surveillance Light Tower 4G 5G Mobile CCTV Trailer Solar Security Camera Tower

Large Image : OKAF Construction Site Surveillance Light Tower 4G 5G Mobile CCTV Trailer Solar Security Camera Tower

Product Details:

Place of Origin:	China
Brand Name:	OKAF
Certification:	CE/ROHS
Model Number:	OK-PRO7-AI-LED

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiated
Packaging Details:	Wood box
Delivery Time:	25~30 working days
Payment Terms:	T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability:	100 units / month

Contact Now

Detailed Product Description

Product Name:	Construction Site Surveillance Light Tower 4G 5G Mobile CCTV Trailer Solar Security Camera Tower	Power Supply:	Solar + Battery Power
Solar Panel:	4*200W Solar Power ,MPPT Solar Controller	Battery Capacity:	4*150Ah DC12V Gel Battery Or Lithium Battery
AI Function:	Face Recognition , Safety Helmet Detection,	Remote Real Time Video:	Support Remote Real Time Viewing And Control
LED Lights:	2*120W Led Lights , 360° Rotation	Area Intrusion Alarm Function:	Support Area Intrusion Alarm

OKAF 4G 5G Mobile CCTV Trailer Solar Security Camera Tower Construction Site Surveillance Light Tower

★The mobile sentry trailer evidence collection system integrates cameras, AI video analysis terminals, lighting systems, lifting systems, transmission and storage systems, energy storage and power supply systems, trailer bodies, control systems, etc. into an integrated design;
★The camera uses 2 high-definition PTZ IP cameras, Resolution 1920*1080, 20x /30x optical zoom, support 360°rotation.
★Pneumatic telescopic mast, extended height 6m.( 3 to 10m are available)

★Supports dual 4G wireless transmission and signal fusion
technology, making the video smoother and clearer .
★Built-in GPS/BD module positioning
★Supports dual TF card storage, with a single maximum of 256G and up to 40 days of recording time (expandable hard drive host storage, supports larger hard drive storage);
★Built-in 20-watt high-power speaker, wireless remote announcement and intercom command;
★Supports expanded face recognition or face recognition,safety helmet detection, smoking detection, reflective detection and mask detection functions.
★Supports both with and without network, the system supports detection and recognition of faces, warning alarms and calling names, and also supports detection of not wearing a safety helmet, smoking and reflective clothing.
★Support front-end on-site prompts for unstandardized behavior, remote platform real-time snapshots and videos and alarm reminders.
★Supports a variety of energy renewal methods, including solar energy, mains power, wind energy, etc.;
★Adopts 2*120W LED super light source, with a total power of 240 watts;
★The lighting supports up and down rotation of 320 degrees on any one side, and supports 380 degree rotation on the left and right;
★Solar panel 4*200W, total 800W. enabling all-weather uninterrupted work;
★ Battery 4*150Ah, DC12V, Gel battery. Battery capacity are customized.
★Supports privatized platform deployment, supports multi-platform access, supports docking with OKAF dynamic forensics platform,mobile AI management platform, and supports GB28181;
★Customized mobile monitoring and command platform supports computer client, IE and mobile APP viewing and control, and supports command center multi-screen real-time preview, image capture and recording, main and sub-stream switching display, and instant playback. 4G, WIFI and LTN multiple signal transmission modes, data transmission is safe and smooth；
★The products comply with ISO9001, environmental protection 14001 and other certification systems, MA/ilac-MRA/CNAS test reports and new invention patents and appearance patents, etc.;
★Using 2-wheel 17-inch high-speed tires, the fastest speed can reach more than 80 yards, which is safer;
★Equipped with a spare tire and supports the installation of fire extinguishers and other accessories;
★The front of the truck supports folding and suspension to facilitate storage and transportation;
★4 sets of safety pull-out support legs, height adjustable to prevent tilting and tipping;
★Supports manual braking system and electronic brake tail light warning.

Advantages of Mobile Solar Surveillance Trailer Light Tower

● Support remote real time video viewing and control, understand the situation at any time and anywhere.
● With loud speaker, support two way audio.
● Supports intrusion alarm, when strangers comes near the tower, it will give an alarm automatically.
● Expand the functions of face recognition, safety helmet detection, reflective clothing detection, smoking detection, temperature and humidity monitoring, dust monitoring and other functions.

● LED lights pan rotation 360°, Tilt rotation 230°. Support unilateral rotation, synchronous rotation.
● LED lights brightness is adjustable.
● With MPPT solar controller, support battery information remote monitoring.
● Customized remote control telescopic mast up and down.

Technical data

Model	OK-PRO7-AI-LED
Camera parameter
Sharpness	20x Optical zoom 1920×1080P
Frame rate	25/30 fps
Audio and video frequency compression	H.264/H.265
Horizontal and up and down angles	Pan range 360°,tilt＋0°～－90°
resolution	1920×1080P
focal length	F=5.4~108 mm (customizable)
AI intelligent analysis
AI intelligent analysis	Face recognition, safety helmet detection, smoking detection, reflective detection and mask detection, etc.
Docking platform	OKAF dynamic forensics platform, mobile AI management platform, supports GB28181
LED parameter
Indicate	2*120W
Irradiation range	120M
Beam angle	25°
lumen	24000lm
PTZ	Supports 320° up and down rotation on any single side, and 380° rotation on the left and right.
Working temperature range	-20℃—65℃
Video recorder parameters
Alarm Output	2-way switching output, linked to sound and light alarm, power outage, etc.
Wireless transmission	Wireless bridge technology or 5G/4G transmission
position	Supports built-in GPS/BD module and can be reported to the ministry standard platform
storage	Supports up to 4TB hard drive storage
Trailer parameters
Battery	4*150Ah, DC12V Gel batteries
Charging method	Mains power, solar energy, car charger input, (wind energy can be expanded)
Solar energy	4*200W total 800W solar panel. MTTP solar controller
Telescopic mast height	3.5M-10M(Customized according to customer requirements)
Wind resistance	Level 8 winds work normally and level 12 winds do not break.
Trailer structure	Trailer arm
Trailers and supports	5 points support
Tires and steel rims	R13/165 or R14/185or more higher
Trailer shock absorber	Steel plate shock absorption
Brake	Impact brake/handbrake
Damping	Steel plate shock absorption
Trailer style	Ring or ball type
Low temperature work	-25℃
High temperature work	65°C
Humidity	Less than 90%(25°C)
Rain	Intensity 6mm/min, duration 1h
Safety	Self-locking at any height, no long-term drop-out phenomenon
