CCTV Surveillance camera lighting tower

CCTV Surveillance camera lighting tower
CCTV Surveillance camera lighting tower

Large Image :  CCTV Surveillance camera lighting tower

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE
Model Number: OK-PRO9
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Wood box
Delivery Time: 25~35 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 units / month
Detailed Product Description
Material: Galvanized Steel + Stainless Steel Telescopic Mast: 6m Manual Telescopic Mast
Cameras: 2 PTZ Cameras + 1 Dome Camera LED Lights: Green Light Led Lights 2*50W Total 100W
Power Supply: Mains Power And Battery Battery Capacity: 100Ah /200Ah /400Ah Optional (Removable Battery)
4G Transmission: Support Remote Control: Support

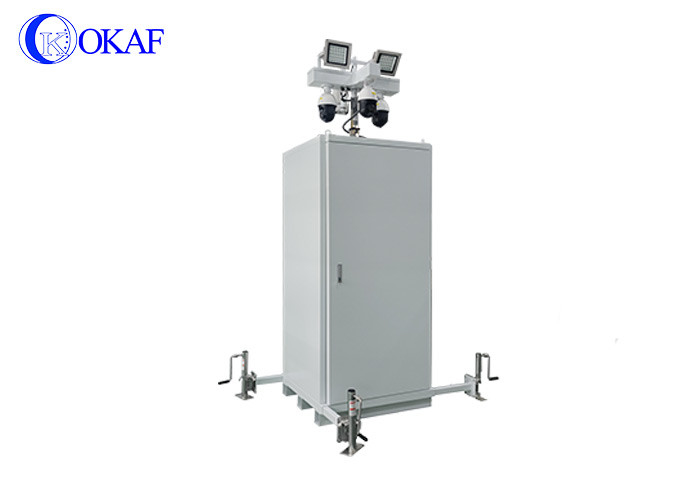

System components:

Greenlight surveillance tower composed of camera system, led green lights, loud speakers ,lifting system ,transmission system and power management system. All in one integrated design, Easy to operate. 2 PTZ cameras 360°rotation and one dome camera achieve all-round monitoring without blind spots. Telescopic mast lifting up to 6meter. LED green light super bright. With 4G transmission. PTZ cameras rotation and led lights on off can be controlled online. The system support regional intrusion alarm. When people come near the tower, it will give an alarm. Built in battery, support battery power supply and AC220V / AC110V charging. AI functions such as face recognition, safety helmet detection, smoking detection are able to customize.


Features :

● Front-end data mobile acquisition device.

● High resolution cameras 1920*1080P, 20x / 30x optical zoom.

● Support intrusion detection, cross-border detection, mobile detection etc.

● Support intercom. Remote talk.

● High prevention effect due to special green light LED headlights.

●Significant deterrent due to the presence of distinctive green flood lights.

● Back-end storage and control system.

● Integrated video analytics software and alarm platform

● State-of-the-art video compression for real-time image transmission.

● Battery power supply, solve the issue no electricity at site.

● Battery easy to take out, easy charging.

● Battery information display on the video . remote control LED green lights on /off.

● Easy to transport with forklift.

● Manual lifting telescopic mast, extend height up to 6m.


Technical data

Camera parameters
Model 2 HD PTZ cameras + 1 Dome camera
Resolution 1920×1080P
Frame rate 25/30 fps
Audio video compression H.264/H.265
Optical zoom 20x
Rotation Speed Pan preset speed
Pan/Tilt range Pan: 360°,Tilt: -25°~+90°
Network port RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
Audio mode External active microphone or linear input, linear output
Dual stream Support
Video parameters
Video input 4 channels network 1080P, Aviation connector
Video output 1 way Composite Video Output +1 CH VGA output, 1.0Vp-p, 75Ω
Preview function 1 way ,4 screen splicing preview,support manual/ Event trigger full screen display function
Video resolution Support 1080P,720P,D1,HD1, CIF optional , support up to 4 way 1080P.
Audio input 4 way,Aviation connector
Audio output 1 way
Compression format G.711, rate 8KB/s
Alarm Output 2 way switch output linkage sound and light alarm, cut off oil, etc.

Communication interface

Communication interface

2-way RS232, expandable credit card machine, fuel sensor, LED advertising screen, etc.
2 way 485 interface,Expandable PTZ
2way CAN bus interface
Wireless transmission 4G wireless transmission function, TDD-LTE, FDD-LTE
Video storage Supports large-capacity 2.5-inch hard disk (up to 2T)
Input voltage DC:+8V ~ +38V
Power supply
Battery capacity 400AH lithium battery. battery information display on the video
Mains power AC220~230V.
Material Galvanized sheet
Dimension 100*100*220 cm
Weight 400 kg
Telescopic mast Extended height 6m, manual lifting
Led lights 2*50W high bright LED green lights. remote control LED green lights on /off.
Outriggers 4 Steady outriggers
Forklift feet Easy to transport with forklift.
Loud speaker Loud sound, adjustable volume,waterproof
Wind resistance Class 8 winds work normally Class 12 winds are not destroyed
Low temperature storage -55°
Low temperature work -30°
High temperature storage 70°
High temperature work 55°
Humidity Less than 90%(temperature 25°)
Rain 6mm/min continuous 1h
