Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mobile Solar CCTV Surveillance Trailer Mounted Security Camera Tower | Camera Type: | 360 Degree HD PTZ Camera 2MP 20x Optical Zoom |
|---|---|---|---|
| Support: | Remote Real Time Viewing & Control | Transmission: | 4G / 5G /WIFI/ Wireless AP |
| Battery Capacity: | 200Ah /400Ah Lithium Battery | Solar Panel: | 3*120W /3*200W /3*300W Optional |
| Telescopic Mast: | 3~10m Telescopic Mast Are Available | Protection Grade: | IP 65 Waterproof For Outdoor Mobile Surveillance |

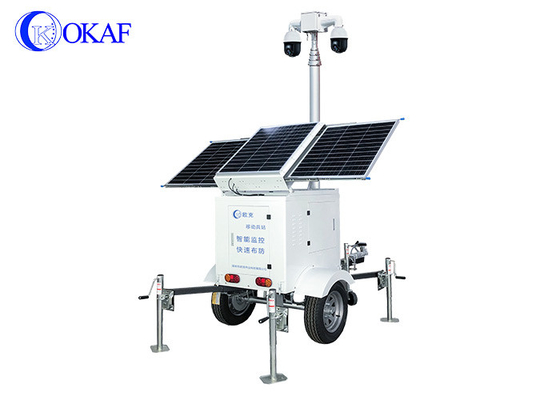

Mobile Solar CCTV Surveillance Trailer Mounted Security Camera Tower
Specification
A mobile solar CCTV trailer is a specialized unit designed to provide surveillance capabilities in areas where traditional power sources are not easily accessible. These trailers typically consist of a high-quality CCTV camera system, often with advanced features such as night vision, motion detection, and remote monitoring capabilities. The integration of solar panels allows the unit to operate autonomously, making it suitable for temporary or remote surveillance applications. Here are some common features and components that may be included in a mobile solar CCTV trailer:
Solar Panels: These panels are typically mounted on the trailer's roof to capture and convert sunlight into electrical energy, which is stored in onboard batteries for continuous operation.
Batteries and Power Management System: The trailer is equipped with high-capacity batteries and a sophisticated power management system to ensure continuous operation even during periods of low sunlight.
CCTV Cameras: These trailers are equipped with high-definition CCTV cameras that may include features such as pan, tilt, and zoom, along with night vision capabilities for 24/7 surveillance.
Telemetry and Remote Monitoring: Many mobile solar CCTV trailers come with telemetry and remote monitoring capabilities, allowing users to access live feeds and control the cameras remotely using a computer or mobile device.
Connectivity: These units are often equipped with various connectivity options such as Wi-Fi, cellular, or satellite communication, enabling real-time data transmission and remote access to the surveillance system.
Sturdy Trailer Design: The trailer is designed to withstand outdoor conditions and is often equipped with features such as rugged tires, stabilizers, and weather-resistant housing to ensure its durability in various environments.
Mobile solar CCTV trailers find applications in a variety of scenarios, including temporary security deployments at events, construction sites, or remote areas without reliable power sources. They provide a flexible and cost-effective solution for monitoring and securing locations where traditional CCTV systems may be impractical or difficult to install.
Technical data
| Camera parameters | |
| Model | HD PTZ cameras |
| Resolution | 1920×1080P |
| Frame rate | 25/30 fps |
|
Audio video compression |
H.264/H.265 |
| Optical zoom | 20X |
| Rotation Speed | Pan preset speed |
| Pan/Tilt range | Pan: 360°,Tilt: ＋25°～－90° |
| IR distance | 60 meter |
| Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) |
| Audio mode | External active microphone or linear input, linear output |
|
Network protocol |
IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP |
| Dual stream | Support |
| Video output | BNC & RJ45 output |
| Video parameters | |
| Video input | 4 channels network 1080P, Aviation connector |
| Video output | 1 way Composite Video Output +1 CH VGA output, 1.0Vp-p, 75Ω |
|
Preview function |
1 way ,4 screen splicing preview,support manual/ Event trigger full screen display function |
|
Video resolution |
Support 1080P,720P,D1,HD1, CIF optional , support up to 4 way 1080P. |
| Audio input | 4 way,Aviation connector |
| Audio output | 1 way |
|
Compression format |
G.711, rate 8KB/s |
| Alarm Output | 2 way switch output linkage sound and light alarm, cut off oil, etc. |
| Communication interface Communication |
2-way RS232, expandable credit card machine, fuel sensor, LED advertising screen, etc. |
| 2 way 485 interface,Expandable PTZ | |
| interface | 2way CAN bus interface |
|
Wireless transmission |
Support built in 3G wireless transmission function. WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE； |
| Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE | |
| Positioning | Support built-in GPS / BD module, can report to the standard platform |
| Hard disk | Supports large-capacity 2.5-inch hard disk (up to 2T) |
| Input voltage | DC:+8V ~ +38V |
|
Power supply |
200AH rechargeable lithium battery |
| Solar power 3*100W total 300W | |
| Project | Test conditions |
| Height | 6 meter(can be customized according customer requirements) |
|
Wind resistance |
Class 8 winds work normally Class 12 winds are not destroyed |
|
Low temperature storage |
-55° |
|
Low temperature work |
-40° |
|
High temperature storage |
70° |
|
High temperature work |
55° |
| Humidity | Less than 90%(temperature 25°) |
| Rain | 6mm/min continuous 1h |
| Rated load | Lifting ≤120N |
| Lifting speed | Average speed 4m/min |
| Safety | Self-locking at any height |
