Product Details:
Payment & Shipping Terms:
|
Name: | Solar Light Tower Outdoor High Brighness Mobile LED Lighting Tower | Led Lights: | 4*100W High Brightness LED Lights |
---|---|---|---|
Solar Power: | 3*100W Solar Panel | Battery Capacity: | 200Ah*DC12V / 400Ah *DC12V |
Lamp Pole: | 3m Manual Telescopic Mast | Protection Level: | Waterproof IP65 |
Highlight: | high brightness mobile led lighting tower,ip65 mobile led lighting tower |

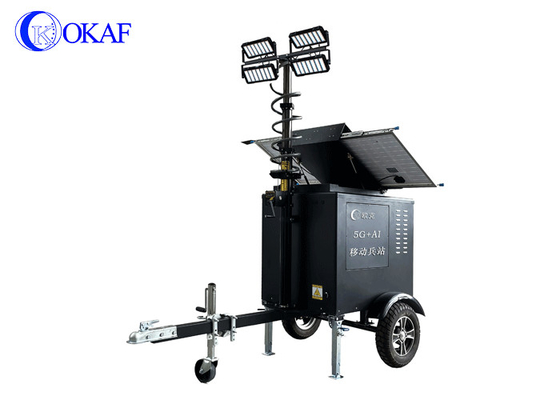

Solar Light Tower Outdoor High Brighness Mobile LED Lighting Tower
System components
OKAF solar light tower is perfect for using in any place where there is difficult to get power. It is strong mobility,especially for mobile emergency lighting for fire fighting rescue, construction sites and kinds of events. The mobile light tower mainly composed of high speed trailer, ultra bright led lights,lifting system and battery & solar power supply. The solar & battery power could make the system runs for 8~10 hours.
Advantages of OKAF solar light tower
●No need to set points and wiring, reduce the cost of deployment.
●No need to disassemble,easy to use and operate.
●Rapid deployment. One can complete the system within 5 minutes to meet emergency need.
● Built in battery. High capacity battery power, long last time up to 8~10hours.
● Alternate charging optional,support solar and mains 220V input charging.
● Humanized design and easy operation. Auto lifting telescopic mast.With control system to control lamp pole up and down, as well as led lights on/off.
● High brightness, wide range lighting. Use 2*100W super bright led lights, lamp pole 3meter manual telescopic mast, Large irradiation area.
● Thickened metal body, galvanized rust-proof bracket, more durable equipment.
● system Waterproof. The trailer body and led lights protection grade up to IP65 waterproof.
Technical data
Tower Body color | Black(could be customized) |
Extended Height | 3m |
Tire | High-speed tires, speed 120km / h |
Outrigger | With outrigger,Prevent tilting , more stable. |
Light power | 4*120W (customized according to requirements) |
Luminous flux | 48000lm |
Capacity of battery | 12V·400A |
Battery type | Lithium battery |
Solar panel | 3*120W |
220V AC/50HzP Power supply |
Support |
Battery life | 96h(according to battery capacity) |
Project | Test conditions |
Telescopic mast height | 3 meter( could be customized according to requirements) |
Wind power | Class 8 winds work normally Class 12 winds are not destroyed |
Low temperature storage | -55° |
Low temperature work | -40° |
High temperature storage | 70° |
High temperature work | 55° |
Humidity | Less than 90%(temperature 25°) |
Rain | 6mm/min continuous 1h |
Rated load | Lifting ≤120N |
Lifting speed | Average speed 4m/min |
Safety | Self-locking at any height |
Applications
OKAF solar light tower is suitable for large-scale outdoor lighting such as emergency rescue, rescue and disaster relief, flood control and flood control, construction operations. Large-area construction lighting in electric power, railway, fire protection, petrochemical, mining, coal and other industries. Temporarily illuminate large areas in public places such as airports, docks, stadiums, squares, roads, and market projects
