| Product Name: | People Counting 1080P 4G GPS Mobile Sentry Solar Security Trailer | Material: | Metal + Aluminum Alloy |
|---|---|---|---|
| Camera Type: | 20x Optical PTZ Camera 1920*1080 + Bullet Camera | Special Feature: | With Speed Radar , People Counting |
| Telescopic Mast: | 3 To 10m Auto Lifting Telescopic Mast | Power Supply: | Solar + Battery Power |
| Highlight: | 10m Mobile Sentry Security Trailer,Surveillance Mobile Sentry Security Trailer,4G GPS mobile video surveillance trailer |
||

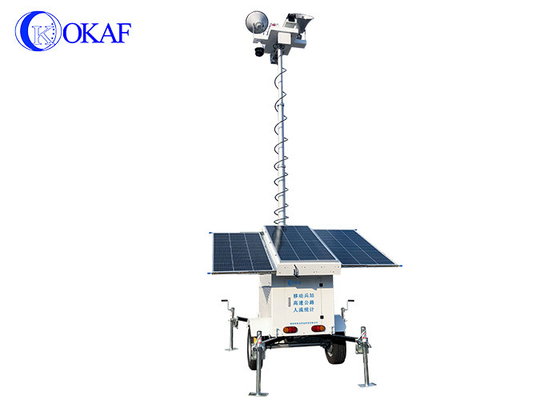

3 to 10m Mobile Sentry Solar Security Trailer People Counting 1080P 4G GPS CCTV Surveillance Tower
Mobile Sentry solar cctv trailer system components :
Okaf Mobile Sentry Solar Security Trailer is including Trailer body, HD PTZ camera, Bullet cameras, Solar Power, Battery power, auto lifting system, 4G transmission system. The meterial of trailer body is mental or stainless steel according to customer's requirement. It is come with the big wheels for driving on road. It is perfect for a tow. The outrigers make the trailer stand well. The battery life is up to 3 days.
Application of Mobile Sentry camera Surveillance Tower:
OKAF Mobile Solar CCTV Trailer aims to solve challenges facing security personnel, such as:
♦ Urgent surveillance for emergency rescue.
♦ Unpredictable threats.
♦ Change of incident locations.
♦ Mobile Surveillance for construction site.
♦ Mobile Surveillance for all kinds of events.
♦ Harsh environments that threaten personal safety
♦ Surveillance for unavailability of electricity, communication and lighting.
♦ Vacant property management
♦ Border security
♦ Business and parking lot security
♦ Public events safety
♦ Construction site security
♦ Oil and Gas site security
♦ Road construction monitoring
♦ Traffic monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
The advantages of the mobile sentry solar cctv trailer:
• Support people counting.
• With LED display.
• All in one design, no need to disassemble, easy to install and use, easy to operate.
• Rapid deployment, one person can complete the system erection in 2 minutes,meet emergency need.
• 4G, WIFI and LTN multiple signal transmission modes, data transmission is safe and smooth.
• Real time video and voice recording.
• With loudspeaker, support remote two way intercom
• Automatic lifting mast, full coverage at high and low levels, eliminating monitoring blind spots.
• Powerful endurance, the system could run for 5-7 days when full charge.
• A variety of anti-theft measures, built-in GPS positioning system.
• Support PTZ control, Keep abreast of the scene environment anytime.
• Solar power supply ensure the longer life time.
Technical data
| Camera | Camera type | Network IP PTZ camera + Bullet cameras |
| Pixel | 2.0MP | |
| Resolution | 1920*1080 @ 30fp | |
| Optical zoom | 20x /30x optical zoom optional | |
| Camera rotation angle | 360° horizontal continuously rotation | |
| -15°~ +90°Vertical rotation | ||
| Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af | |
| Support | People counting | |
| Video Transmission & storage | Video input | 4 channel network 1080P, aviation interface |
| Video output | 1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω | |
| Preview function | Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function | |
| Video resolution | Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P | |
| Audio input | 4channel, Aviation interface | |
| Audio output | 1channel | |
| Alarm Output | 2-way switch output, linked audible and visual alarm, oil and power off, etc. | |
| communication interface | 2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc. | |
| 2 way 485 interface, can extend PTZ | ||
| 2-way CAN bus interface | ||
| Wireless transmission | Support built-in 3G wireless transmission function, WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE | |
| Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE | ||
| Position | Support built-in GPS / BD module, can report to the platform | |
| Hard disk | Support large capacity 2.5-inch hard disk (maximum 2T) | |
| Power supply | Battery | 12V·200Ah |
| Solar | 2*50W /2*100W/ 4*100W Optional | |
| AC Power | AC220V | |
| Trailer body & Mast | Material | Metal |
| Extended Height | 3m ( 3 to 9m available) | |
| Wind power | 19m/sec | |
| Lifting | Manual or pneumatic | |
| Local viewing | With monitor for local viewing | |
| LED Display | With LED Display |
