Sentry Solar Mobile CCTV Camera Trailer Telescopic Mast Security Surveillance Trailer

Sentry Solar Mobile CCTV Camera Trailer Telescopic Mast Security Surveillance Trailer
Sentry Solar Mobile CCTV Camera Trailer Telescopic Mast Security Surveillance Trailer

Large Image :  Sentry Solar Mobile CCTV Camera Trailer Telescopic Mast Security Surveillance Trailer

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE ROHS FCC
Model Number: OK-PR07
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Wood box
Delivery Time: 10~15 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 500 / Month
Detailed Product Description
Material: Trailer Body : Mental Telescopic Mast: Aluminum Alloy Camera Pole: 3 To 6m Telescopic Mast
Camera: PTZ Camera + Bullet Cameras Feature: People Counting . Car Speed Detection, Intercom
Resolution: 1920*1080 Support: Local & Remote Control / Viewing / Audio
High Light:

Sentry mobile video surveillance trailer


Telescopic mast mobile CCTV camera trailer


Sentry mobile cctv camera trailer

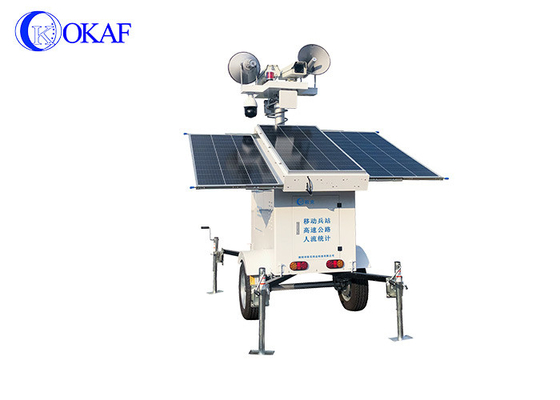

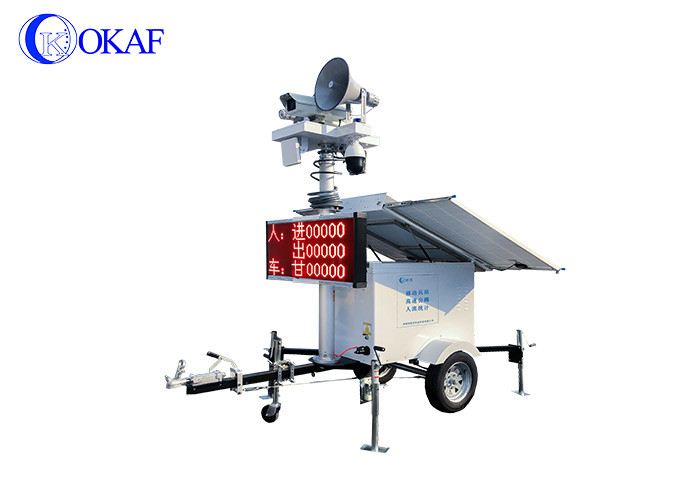

Mobile Sentry Solar CCTV Camera Tower Security Surveillance Trailer


Mobile Sentry CCTV Camera surveillance system components :

Okaf Mobile Sentry Solar Security Trailer is including Trailer body, HD PTZ camera, Bullet cameras, Solar Power, Battery power, auto lifting system, 4G transmission system. The meterial of trailer body is mental or stainless steel according to customer's requirement. It is come with the big wheels for driving on road. It is perfect for a tow. The outrigers make the trailer stand well. The battery life is up to 5 days.


The advantages of the mobile sentry solar cctv trailer:

• All in one design, no need to disassemble, easy to install and use, easy to operate.

• Rapid deployment, one person can complete the system erection in 2 minutes,meet emergency need.

• 4G, WIFI and LTN multiple signal transmission modes, data transmission is safe and smooth.

• Real time video and voice recording.

• Automatic lifting mast, full coverage at high and low levels, eliminating monitoring blind spots.

Powerful endurance, the system could run for 5-7 days when full charge.

• A variety of anti-theft measures, built-in GPS positioning system.

• Support PTZ control, Keep abreast of the scene environment anytime.

• Solar power supply ensure the longer life time.

• With loudspeaker, support remote two way intercom

• Support people counting.

• With LED display.




Technical data

Camera Camera type Network IP PTZ camera + Bullet cameras
Pixel 2.0MP
Resolution 1920*1080 @ 30fp
Optical zoom 20x /30x optical zoom optional
Camera rotation angle 360° horizontal continuously rotation
-15°~ +90°Vertical rotation
Network port RJ45 10Base-T/100Base-TX PoE(IEEE802.3af
Support People counting
Video Transmission & storage Video input 4 channel network 1080P, aviation interface
Video output 1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω
Preview function Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function
Video resolution Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P
Audio input 4channel, Aviation interface
Audio output 1channel
Alarm Output 2-way switch output, linked audible and visual alarm, oil and power off, etc.
communication interface 2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc.
2 way 485 interface, can extend PTZ
2-way CAN bus interface
Wireless transmission Support built-in 3G wireless transmission function, WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE
  Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
Position Support built-in GPS / BD module, can report to the platform
Hard disk Support large capacity 2.5-inch hard disk (maximum 2T)
Power supply Battery 12V·200Ah
Solar 2*50W /2*100W/ 4*100W Optional
AC Power AC220V
Trailer body & Mast Material Metal
Extended Height 3m ( 3 to 9m available)
Wind power 19m/sec
Lifting Manual or pneumatic
Local viewing With monitor for local viewing
LED Display With LED Display


System topology



Application of Mobile Sentry Surveillance Trailer


OKAF Solar CCTV Trailer aims to solve challenges facing security personnel, such as:

♦ Urgent surveillance for emergency rescue.

Unpredictable threats.

Change of incident locations.

♦ Mobile Surveillance for construction site.

♦ Mobile Surveillance for all kinds of events.

Harsh environments that threaten personal safety

Surveillance for unavailability of electricity, communication and lighting.

Construction site security

♦ Oil and Gas site security
♦ Road construction monitoring
♦ Traffic monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
♦ Vacant property management
♦ Border security
♦ Business and parking lot security
♦ Public events safety
