|Material:||Aluminum Alloy||Warranty:||1 Year|
|Solar Power Supply:||8 * 200 W ( 1600 W )||Camera Height:||6m (3-20m Can Be Customized)|
|LED Lamps:||6* 200 W||Waterproof Level:||IP65|

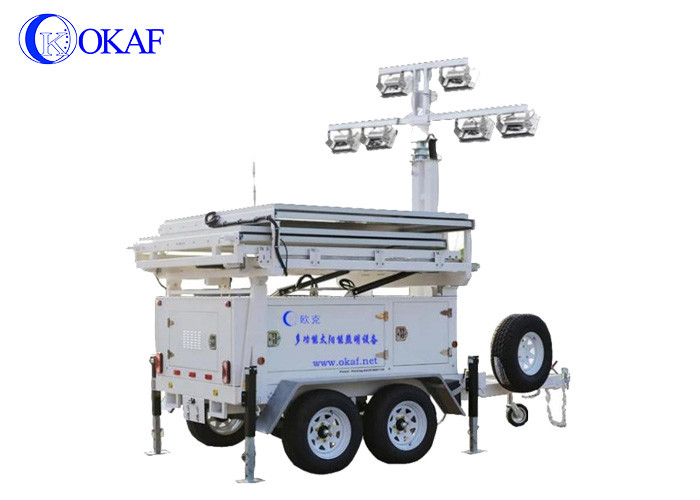

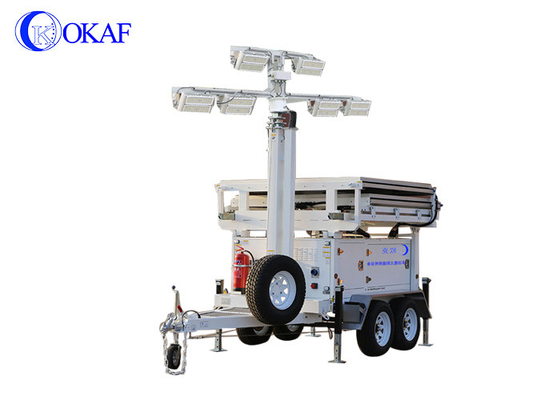

Emergency Rescue Mobile Security Camera Trailer,
IP65 Mobile Security Camera Trailer,
Sentry mobile solar mobile trailer
● High-power LED lighting
Six 200 - watt LED lamps ( which can be customized ). After the lamp pole was lifted by 8 meters, the radius of the lamp coating cover can reach more than 500 meters. Lighting distance, large area.
● Solar power supply
8 * 200 W ( 1600 W ) solar single crystal silicon solar energy is adopted, which can be folded, and can be designed in an acceptable way for easy operation.
● Generator power supply
Strong driving force, economic and environmental protection.
It is equipped with high-quality international well-known brand generator sets, strong power. The damping design is adopted between the unit and the base to reduce the vibration and make the operation more safe, stable, efficient and energy-saving. Fully enclosed design, low noise, noise ≤ 70 decibels, low emissions.
● All-round and multi-angle lighting
The lamp rotates 360 °, and the projection angle can be changed arbitrarily in the range of 0 ° ~ 90 °.
● Humanized design and easy manipulation
Control system integration, control switch, control display, indicating instrument all integrated on the same panel, convenient operator operation and real-time monitoring.
Automatic operation design, independent automatic control of all components, simple and convenient operation.
● Strong scalability
Expandable 4G monitoring system to achieve remote viewing scene images, GPS positioning, remote control, command and call functions ;
● Safe, reliable and convenient transportation
The four hydraulic support feet have large expansion area and strong support. Combined with the advanced integrated counterweight design of the whole machine, they have good wind resistance performance and can ensure reliable work in the 8-level gale.
● Excellent waterproof performance
The protection level reaches IP65, the mobile lifting is convenient and fast, with two-way configuration of output and input, so that the lighthouse can be used as a generator for external equipment, but also can be connected to the municipal operation.
● Multiple mobile ways
Truck systems, forklifts and cranes can be used for movement and transportation.
|Trailer body||Body color||White(could be customized)|
|Extended Height||6m(could be customized)|
|Light power||6*200W (customized according to requirements)|
|Battery type||Lithium battery or Lead-acid battery|
|Solar panel8||*200W (customized according to requirements)|
|Telescopic mast height||6 meter( could be customized according to requirements)|
|Wind power||Class 8 winds work normally Class 12 winds are not destroyed|
|Low temperature storage||-55°|
|Low temperature work||-40°|
|High temperature storage||70°|
|High temperature work||55°|
|Humidity||Less than 90%(temperature 25°)|
|Rain||6mm/min continuous 1h|
|Rated load||Lifting ≤120N|
|Lifting speed||Average speed 4m/min|
|Safety||Self-locking at any height|
It is suitable for large outdoor lighting such as emergency rescue, flood control and construction operations. Power, railway, fire, petrochemical, mining, coal and other industries for large area construction lighting. Airports, docks, stadiums, squares, roads, market engineering and other public places do large area temporary lighting.
