Product Details:
|
| Product Name: | 4G WIFI GPS CCTV System Outdoor Security Camera Tower Mobile Surveillance Trailer | Camera Pole: | Electric Lifting Telescopic Mast 4m |
|---|---|---|---|
| Trailer Boby Color: | Armygreen | Material Of Trailer Body: | Thicker Metal |
| Material Of Telescopic Mast: | Aluminum Alloy | CCTV Camera: | 2 Pcs HD PTZ Camera 2MP 20x Optical Zoom |
| 4G Transmission: | Support 4G Transmission, GPS Position, Remote Real Time Viewing | Power Supply: | Lithium Battery |
| Highlight: | PTZ Control Mobile Surveillance Trailer,WCDMA Mobile Surveillance Trailer,RS232 Mobile Video Surveillance Trailer |
||

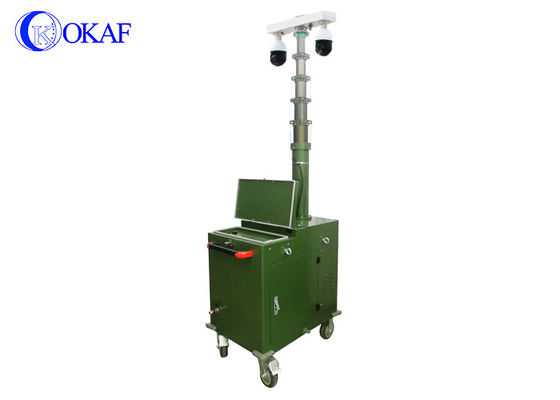

4G WIFI GPS CCTV System Outdoor Security Camera Tower Mobile Sentry Surveillance Trailer
Features of OKAF Mobile CCTV Camera Tower
• Real time video and audio recording.
• High efficiency code transmission ability.
• GPS positioning, real-time transmission of vehicle images.
• Support solar power,which is environment friendly.
• Support PTZ control, Keep abreast of the scene environment anytime.
• Strong system management capabilities.
• Mobile performance meets the work requirements of any place.
• Text scheduling and LED text prompts
• WIFI automatically downloads data functions, can transfer images back to the command
• Highly expandable, multi-functional installation platform. To ensure system safety,the body temperature sensor, temperature and humidity, PM2.5, noise, air, vibration sensor, audible alarm, car lock, etc can be added according to the demand.
• Efficient coding transmission capability.
• GPS positioning, real-time transmission of vehicle images.
• Input voltage +7V~+48V wide voltage, suitable for kinds of vehicle.
• Support PTZ control, Keep abreast of the scene situation.
• Strong system management ability.
• Mobility meets the work requirements anywhere.
• Text scheduling and LED text prompts.
• WIFI automatically downloads data functions, can send images back to the command center via WIFI or 4G, can view videos, play back videos, etc. through mobile phone or computer.
Technical data
| Camera | Camera type | High definition IP PTZ camera |
| Pixel | 2.0MP | |
| Resolution | 1920*1080 @ 30fp | |
| Optical zoom | 20x /30x optical zoom optional | |
| Camera rotation angle | 360° horizontal continuously rotation | |
| -15°~ +90°Vertical rotation | ||
| Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af | |
| Video Transmission & storage | Video input | 4 channel network 1080P, aviation interface |
| Video output | 1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω | |
| Preview function | Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function | |
| Video resolution | Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P | |
| Audio input | 4channel, Aviation interface | |
| Audio output | 1channel | |
| Alarm Output | 2-way switch output, linked audible and visual alarm, oil and power off, etc. | |
| communication interface | 2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc. | |
| 2 way 485 interface, can extend PTZ | ||
| 2-way CAN bus interface | ||
| Wireless transmission | Support built-in 3G wireless transmission function, WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE | |
| Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE | ||
| Position | Support built-in GPS / BD module, can report to the platform | |
| Hard disk | Support large capacity 2.5-inch hard disk (maximum 2T) | |
| Power supply | Battery | 12V·200Ah |
| Solar | 2*50W /2*100W/ 4*100W Optional | |
| AC Power | AC220V | |
| Trailer body & Mast | Material | Metal |
| Extended Height | 3.5m ( 3 to 6m available) | |
| Wind power | 19m/sec | |
| Lifting | Manual or pneumatic | |
| Local viewing | With monitor for local viewing |
