Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Warranty: | 1 Year |
|---|---|---|---|
| Pixel: | 200w Pixel (300w Or 500w Optional) | Camera Height: | 6m (3-20m Can Be Customized) |
| Security: | Arbitrary Height Self - Lock No - Time Growth Of Height Phenomenon | The Lifting Speed: | The Average Speed Is 4m/min |
| High Light: | mobile video surveillance trailer,mobile security camera tower,Ground Mounted Mobile Security Camera Trailer |
||

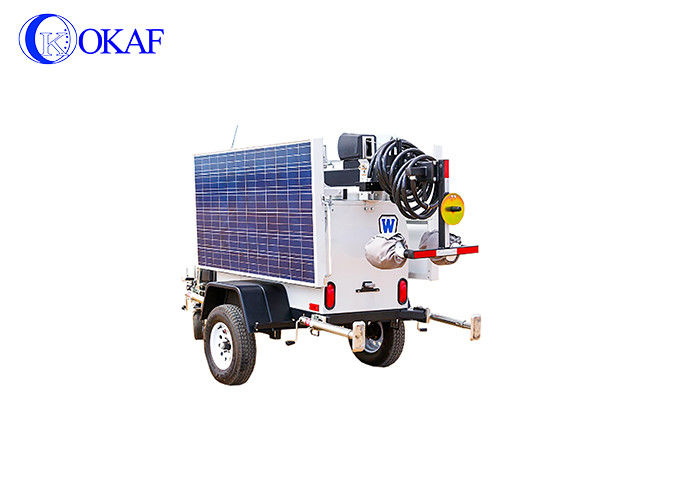

Rapid Deployment Security Solution 6M Aluminum Alloy Truck Mounted Ground Mounted
Features of mobile monitoring system
1.The front 360-degree dead-angle monitoring device is mobile and more flexible to use.
2. No fixed point, wiring, reduce the cost of layout.
3.No need to remove, with the installation with the use, simple operation.
4.Rapid deployment, single person 5 minutes can complete the system erection, to meet emergency needs.
5.Automatic mast lifting, high and low distance coverage, eliminate monitoring blind area.
6.Thickened metal body, galvanized anti-rust bracket, more durable equipment.
7.Powerful endurance, single charge, the system can run for 5-7 days.
8.Standby charging mode, realize continuous and uninterrupted work.
9.4G, WIFI and LTN signal transmission mode, data transmission is safe and smooth.
10.Support intelligent detection functions such as regional intrusion detection, transboundary detection, and movement detection.
11.Supports manual tracking, panoramic tracking, event tracking, and multi-scene cruise tracking.
12.Support license plate capture and retrieval, mixed detection, multi-scene cruise detection, cloud storage services.
13.High scalability, multi-functional installation platform, can increase the temperature sensor, temperature and humidity, PM2.5, noise, air pollution, dust detection and other functional modules.
14. A variety of anti-theft measures, built-in GPS positioning, vibration sensor, sound alarm, lock, etc., to ensure the safety of the system.
15. Back-end mobile control, anytime and anywhere view data, issue instructions.
Product structure:
1.Front-end data mobile acquisition equipment
2. High definition intelligent tracking camera system
3.The high-speed trailer is equipped with an automatic lifting mast (which can be controlled by wireless remote control and RS485 to double the rotation of the lifting camera.
4. Retractable arm
5.Various power supply measures (battery, solar power supply, AC charging)
6. Alarm device
7.GPS positioning device
8.Wireless transmission equipment
9. Equipped with the latest wireless bridge technology, the transmission distance of the line-of-sight is up to 10km, and the transmission distance of non-line-of-sight is up to 50km
10. Compatible with traditional wired transmission mode (network cable, optical fiber, etc.)
11.Back-end storage, control system,
12. Local and cloud storage, local storage capacity up to 32T (2 years for single camera)
13. Support PC terminal, handheld mobile terminal control at the same time
Product parameters:
| Camera parameters | Camera type | Infrared network hd intelligent ball machine (customized) |
| pixel | 200w pixel (300w or 500w optional) | |
| Maximum image size | 1920×1080@30fps hd screen | |
| Irradiation distance | 150m | |
| Optical variable times | 20 times | |
| Rotation Angle | Continuous rotation of 360° in horizontal direction | |
| -15°-90° | ||
| The network interface | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) | |
| Audio mode | External active microphone or linear input, linear output | |
| Network protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP | |
| Network protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP | |
| Protection grade | Lightning protection, surge protection, surge protection, IP66 protection grade | |
Camera parameters
| Video input | 4-way network 1080P, aviation head interface, |
| Video output | 1 composite video output + 1 road VGA output, Vp - 1.0 p, 75 Ω | |
| Preview function | Single channel, 4 screen Mosaic preview, support manual/event trigger full screen display function | |
| Video resolution | Support 1080P, 720P, D1, HD1, CIF optional, maximum support 4 1080P. | |
| Audio input | 4 way, aero head port | |
| Audio output | 1 way | |
| Compressed format | G.711 compressed format, speed 8KB/s | |
| Alarm output | 2 way switch output, linkage sound and light alarm, oil off and power off, etc | |
| Communication interface | 2-channel RS232, expandable card reader, oil sensor, LED advertising screen, etc | |
| 2 way 485 interface, expandable cradle head | ||
| 2 - way CAN bus interface | ||
| Wireless transmission | Support built-in 3G wireless transmission function, WCDMA, CDMA2000, td-scdma compatible GPRS, EDGE; | |
| Built-in 4G wireless transmission function, tdd-lte, fdd-lte | ||
| positioning | Built-in GPS/BD module is supported, which can be reported to the ministry standard platform | |
| The hard disk | Support large capacity 2.5 inch hard disk (maximum 2T) | |
| The input voltage | DC:+8V ~ +38V | |
The car body litre fall pole number
| Car body color | White (customizable) |
| Camera height | 6m (3-20m can be customized) | |
| The battery number | Four groups | |
| Battery capacity | 48V·36Ah | |
| Battery type | Lead-acid battery | |
| Solar panel | 3*(100W 36v) | |
| AC 220 v / 50 hz power supply | support | |
| Battery life | 96h | |
| project | Test conditions | |
| Lifting height | 6 meters (customized according to customer requirements) | |
| The wind resistance | Force 8 wind works normally force 12 wind does not damage | |
| Low temperature storage | -55° | |
| Work in low temperature | -40° | |
| High temperature storage | 70 degrees | |
| High temperature work | 55 degrees | |
| Wet degree | Less than 90% (temperature: 25°) | |
| Drench the rain | Intensity 6mm/min duration is 1h | |
| The rated load | Lifting hand force ≤120N | |
| The lifting speed | The average speed is 4m/min | |
| security | Arbitrary height self - lock no - time growth of height phenomenon |
