Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Warranty: | 1 Year |
|---|---|---|---|
| Pixel: | 200w Pixel (optional 300w Or 500w) | Battery Life: | 96h |
| Height: | 6m (3-20m Can Be Customized) | Car Body Color: | White (customizable) |
| High Light: | mobile video surveillance trailer,mobile security camera tower,360 Continuous Rotation Mobile Surveillance Trailer |
||

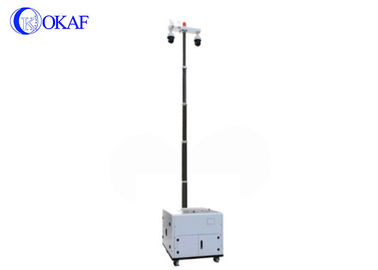

6M Mobile Surveillance Trailer 360 ° Continuous Rotation Urgent surveillance
Characteristics of mobile monitoring system:
1.Front-end 360-degree no-dead Angle monitoring device mobile, more flexible use
2.No need of fixed point, wiring, reduce the cost of installation
3.No need to disassemble, with easy operation
4.Rapid deployment, single 5 minutes to complete the system erection, to meet the needs of emergency
5.Automatic mast lifting and lowering can cover the distance and height completely and eliminate the blind area of monitoring
6.Thickened metal body, galvanized anti-rust support, more durable equipment
7.Powerful battery life, one charge, the system can run for 5-7 days
8.Standby charging mode, realize continuous and uninterrupted work
9.4G, WIFI and LTN multiple signal transmission modes, data transmission is safe and smooth
10.Support area intrusion detection, cross-border detection, motion detection and other intelligent detection functions
11.High expansibility, multi-functional installation platform, according to the demand to increase the temperature sensor, temperature and humidity, PM2.5, noise, air pollution, dust detection and other functional modules
12.A variety of anti-theft measures, built-in GPS positioning, vibration sensors, sound alarms, car locks, etc., to ensure the safety of the system
13.Back-end mobile control, anytime and anywhere to view data, issued instructions.
Product structure
1.Front-end data mobile acquisition equipment
2.Hd intelligent camera tracking system
3.The high speed trailer is equipped with automatic mast lifting (it can control the variable rotation of the lifting camera of the lifting pole by wireless remote control and RS485).
4.Telescopic boom
5.Multiple power supply measures (battery, solar power supply, AC charging)
6.Alarm device
7.GPS positioning device
8.Wireless transmission equipment
9.Compatible with traditional wired transmission modes (network cable, optical fiber, etc.)
10.Back-end storage and control system
11.Local and cloud storage, local storage capacity up to 32T (2 years for single camera)
12.Support PC terminal, handheld mobile terminal control at the same time
Product parameters
| Camera parameters | Camera type | Infrared network hd intelligent ball machine (customizable) |
| pixel | 200w pixel (optional 300w or 500w) | |
| Maximum image size | 1920 1080@30fps hd screen | |
| Irradiation distance | 150m | |
| Optical variable times | 20 times | |
| Rotation Angle | Horizontal direction of 360 ° continuous rotation | |
| Vertical direction - 15 ° to 90 ° | ||
| The network interface | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) | |
| Audio mode | External active microphone or linear input, linear output | |
| Network protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP | |
| Protection grade | Protection against lightning, surge and surge, IP66 protection level | |
| Video recorder parameters | Video input | 4 channel network 1080P, aviation head interface |
| Video output | 1 composite video output + 1 road VGA output, Vp - 1.0 p, 75 Ω | |
| Preview function | Single channel, 4 screen splicing preview, support manual/event trigger full screen display function | |
| Video resolution | Support 1080P, 720P, D1, HD1, CIF optional, maximum support 4 1080P. | |
| Audio input | 4 channels, aviation head interface | |
| Audio output | 1 way | |
| Compressed format | G.711 compression format, 8KB/s | |
| Alarm output | 2 circuit switch output, linkage sound and light alarm, cut off oil and power, etc | |
| Communication interface | 2 channel RS232, expandable card reader, oil sensor, LED advertising screen, etc | |
| 2 way 485 interface, expandable cradle head | ||
| 2 channel CAN bus interface | ||
| Wireless transmission | Support built-in 3G wireless transmission function, WCDMA, CDMA2000, td-scdma compatible GPRS, EDGE; | |
| It can have built-in 4G wireless transmission function, tdd-lte and fdd-lte | ||
| positioning | Support built-in GPS/BD module, can be reported to the ministerial platform | |
| The hard disk | Support large capacity 2.5-inch hard disk (maximum 2T) | |
| The input voltage | DC:+8V ~ +38V | |
| The car body litre fall pole number | Car body color | White (customizable) |
| Camera height | 6m (3-20m can be customized) | |
| The battery number | 1 set of | |
| Battery capacity | 48V·36Ah | |
| Battery type | Lead-acid battery | |
| AC 220 v / 50 hz power supply | support | |
| Battery life | 96h | |
| project | Test conditions | |
| Boom height | Test conditions | |
| The wind resistance | 8 wind working normally 12 wind is not damaged | |
| Low temperature storage | -55° | |
| Work in low temperature | -40° | |
| High temperature storage | 70° | |
| High temperature work | 55° | |
| Wet degree | Less than 90% (25 ° temperature) | |
| Drench the rain | The duration of 6mm/min was 1h | |
| The rated load | Lifting hand force 120N | |
| The lifting speed | The average speed is 4m/min | |
| security | Any height self - locking off phenomenon |
