Product Details:
Payment & Shipping Terms:
|
| Model: | OK-CT140-20IP | Pan Preset Speed: | 60°/S(manual Control 0°～60°/S) |
|---|---|---|---|
| Tilt Preset Speed: | 40°/S(manual Control 0°～40°/S) | Pan Range: | 360°continuously |
| Tilt Range: | ＋90°～－90° | Max Image Size: | 1920×1080 |
| Weight: | 7KG | Infrared Lights: | 3W*7 |
| Video Output: | BNC&RJ45 Dual Output | Night Vision Distance: | 100m |
| High Light: | hd pan tilt zoom ip camera,ptz night vision camera |
||

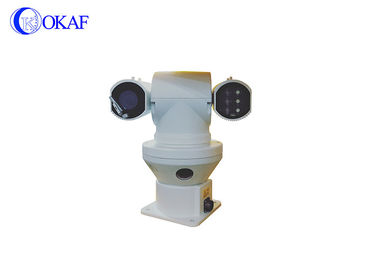

LVDS 20X 1080P 2 Mega Pixels Full HD PTZ Camera For Vehicle
Product description:
1. Support self-locking when power off in vertical and horizontal
2. Adopt dot matrix infrared light, night vision is about 100m
3. Standard defrosting, defogging, anti-freeze coil design; ensures normal usage under temperature mutations
4. Supports coordinate display and angle acceptance instructions
5. Built-in regulator module to protect the equipment stable and durable 6,Adopt dual control way, control PTZ and lens by RS485 and RJ45 port
7. Easy to dismantle and convenient for maintanence
8. Support docking with all IP/SDI/TVI/CVI/AHD and analog chip and platform
PTZ function:
1. High strength alloy aluminum crust, shock resistance, corrosion protection, suitable in all weather conditions
2. PTZ support real-time HIKVISION, SONY, Samsung, Hitachi, and other brands HD camera chipest.
3. Super seismic characteristics, especially good for vehicle monitoring or prison monitoring.
4. Built-in decoder, integrate multiple protocols.
5. 360°continuously rotation.
6. Manual rotation speed from 0 to 60 degrees/sec continuous adjustment; Vertical: -90 ~ 90 degrees;
7. Horizontal scanning between two points • Editable tour tracks, track self-learning function
8. Vehicle power voltage-intput range: DC10.5V~DC18V
Parameters:
|
PTZ spec |
||
|
Model |
OK-CT140-20IP |
|
|
Pan preset speed |
60°/S(manual control 0°～60°/S) |
|
|
Tilt preset speed |
40°/S(manual control 0°～40°/S) |
|
|
Pan range |
360°continuously |
|
|
Tilt range |
＋90°～－90° |
|
|
Preset position, Patrol track |
128 preset positions |
|
|
Control way |
RS485&RJ45 port dual control.Baud rate from 2400Bps to 19200Bps optional |
|
|
IP spec |
||
|
Docking chipest |
HIKVISION, SONY, Samsung, Hitachi, and other brands HD camera chipest |
|
|
Network port |
RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) |
|
|
Max image size |
1920×1080 |
|
|
Frame rate |
25/30 fps |
|
|
Compression |
H.264 |
|
|
Audio |
External active microphone or linear input, linear output |
|
|
Protocol |
IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP |
|
|
Dual stream |
Support |
|
|
Video Output |
BNC&RJ45 dual output |
|
|
Operating temperature |
－35°C~＋65°C |
|
|
IP level |
IP66 |
|
|
Power supply |
DC10.5V~DC18V(12A) |
|
|
Weight |
7KG |
|
|
IR spec |
||
|
Chroma |
850nm |
|
|
Night vision distance |
100m |
|
|
Infrared lights |
3W*7 |
|
|
Chipest spec |
IP |
|
|
Model |
23X starlight chipest |
20X |
|
Imaging sensor |
1/1.8" “Exmor”CMOS |
1/2.8" “Exmor”CMOS |
|
Effective pixels |
2MP |
2MP |
|
Lens |
23X optical zoom f=5.9-135.7mm |
20X optical zoom f=4.7-94mm |
|
Minimum illumination |
0.002 lUx |
0.05lux |
|
NVR compatible |
Standard ONVIF protocol, support secondary development |
|
|
Chipest spec |
SDI/AHD |
|
|
Model |
SDI |
AHD |
|
Imaging sensor |
1/2.5" CMOS |
1/4" CMOS |
|
Effective pixels |
30X 3MP(decided by chipest) |
20X 2MP(decided by chipest) |
|
Frame rate |
60FPS & 30FPS |
30FPS |
