IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems

IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems
IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems

Large Image :  IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems

Product Details:
Place of Origin: China
Brand Name: Okaf
Certification: CE/FCC/RoHS
Model Number: OK-CT130GR-20IP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard carton
Delivery Time: 3~5 working days
Payment Terms: T/T, Paypal, Western Union, L/C, MoneyGram etc
Supply Ability: 500 pcs per month
Detailed Product Description
Product Name: IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems Lens: 5.4-108mm,20X Optical Zoom
Resolution: 1080P IR Distance: 120m
Power: DC12V Pan Range: 360°
Tilt Range: +90°~-90° Pan Speed: 120°/S(manual Contro0°~80°/S)
Tilt Speed: 60°/S(manual Control 0°~40°/S) Control Way: RJ45 And RS485
High Light:

taxi cctv camera

,

car cctv camera

IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems

Specification

♥ Support kinds of resolution IP network camera max 2.0 megapixel, 20x Optical zoom.

Support IP network and analog dual video output.

Support dual control. PTZ and camera zoom Could be controlled by RS485 and RJ45 network.

Built in defrost and defogging device. Can be work well even the temperpature change suddenly.

Support coordinate display and angle acceptance instructions.

Aluminum material, Shockroof, anti-corrosion. protection grade IP66 waterproof.

♥ Horizontal rotation 360°, Vertical rotation -90°~+90°.

♥ Strong anti shaking function, Strongly anti-seismic,suitable for kinds of vehicle.

♥ Use powerful LED flashing lights for alaram. nigh vision distance about 150meter.

Vehicle power supply DC10.5V~dc18v.

♥ Camera with WDR option for better image.

Local video viewing, remote video viewing and control.

♥ Support video playback by IE browser or OKAF Dynamic Forensics system software.



Complete system of Okaf vehicle mounted PTZ camera system



Car Roof mounted PTZ Camera



OKAF PTZ Camera has been widely applies to dynamic forensics system and urban management law enforcement system, mobile commanding system etc. Our ptz camera is anti shaking, which is ideal for vehicle roof mounted. The led flashing lights not only assure the long distance 150meter night vision, but also have warning function. You could view the local real time video by screen. You could also remote view and control the video on computer by OKAF software. 2.0MP, 20 Optical zoom camera movement makes the video more HD and clear.



IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems 0
IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems 1

Vehicle Screen with Joystick



♦ Integration of 8" monitor and 4-dimensional keyboard makes it small volume, light weight and superior appearance.

♦ Used for controlling PTZ camera.

♦ 8" LCD resolution:1280*760.

♦ RS485 control output signals, convenient for controlling device near and in distance.

♦ Input signal is 1 channel VGA HD signal and 1 channel BNC analog signal.

♦ Baud rate:1200 bps~9600 bps; Protocol:Pelco_P,Pelco_D.

♦ Supply voltage:AC/DC 9V~12V; Power:25W

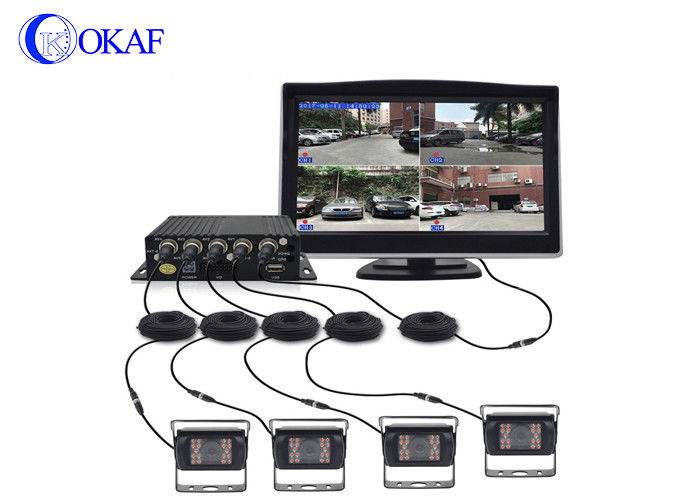

Vehicle 4 channel NVR

• Video Input: aviation connector,digital component signal access.NVR and PTZ camera connect by special aviation cable, support 1 channel 1080P IP PTZ camera input and 4 channel AHD input or analog input.

Video Output:1 channel CVBS output, 1 channel VGA output,(1 channel aviation plug).

Hard disk drive: support 1 2.5" HDD/SSD with SATA interface. The max. storage is 2T. Support 1 SD card at the same time, the max. storage is 128G.

Network port: RJ45 port / 3G/4G port
GPS Port: Built in GPS for vechile position.

Power Supply: DC 8~36V.

IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems 2
IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems 3

Vehicle Bracket

● Stable and quick-mount bracket designed for vehicle mobile monitoring equipment installation.
● High strength aluminum alloy material, impact resistance, corrosion resistant, light weight, high strength and strong oxidation resistance.
● Horizontal installation, no need to damage the car roof.
● Independent suspension shock absorption design, shockproof.
● Bracket payload: 200kg
● Length :90cm

OKAF PTZ Camera Applications

The roof mounted PTZ Camera has been designed for all kinds of car, communication commanding vehicle, fire truck and other vehicles that require for surveillance. It is mounted on the car roof for dynamic forensics, urgent rescue, site monitoring, accident handling etc.

IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems 4

IP66 1080P Rugged Mobile Vehicle PTZ Camera Systems 5
