4G Car IR Auto Tracking PTZ Camera / Security Camera With Powerful Magnet Mount

4G Car IR Auto Tracking PTZ Camera / Security Camera With Powerful Magnet Mount
4G Car IR Auto Tracking PTZ Camera / Security Camera With Powerful Magnet Mount

Large Image :  4G Car IR Auto Tracking PTZ Camera / Security Camera With Powerful Magnet Mount

Product Details:
Place of Origin: China
Brand Name: Okaf
Certification: CE/FCC/RoHS
Model Number: OK-CQ50DM-20IP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T, Paypal, Western Union, L/C, MoneyGram etc
Supply Ability: 2500pcs per month
Detailed Product Description
Image Sensor: 1/2.8type EXmor CMOS Usage: Ambulance Forensic, Car Roof Mounted, Vehicle Mounted
Function: 4G Transmission PTZ Camera: 360 Degree Rotation
Night Vision: 50m Resolution: 720P/1080P
Signal: IP Warranty: 1year
High Light:

pan tilt zoom camera


long range ptz camera


Vehicle PTZ Camera Infrared Car Use PTZ Camera With Powerful


Magnet Mount



Product description:

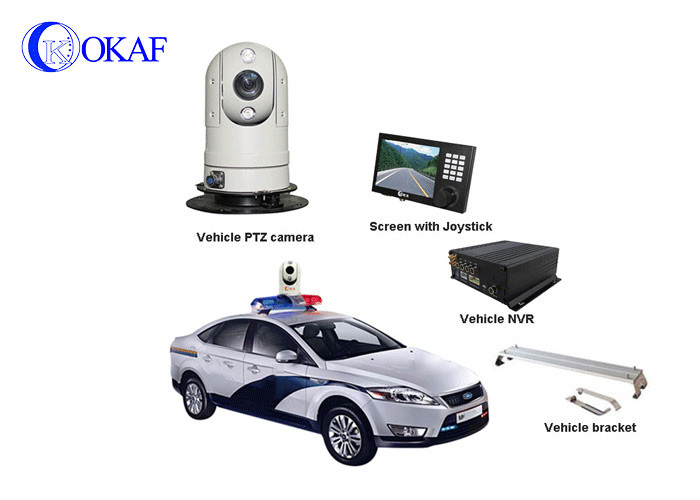

The whole system includes ( IP PTZ Camera + NVR + 8" keyboard display +Dome camera+ Strong magnet sucker)


1. PTZ camera:

HD IP infrared vehicle PTZ camera, Pan range: 360°continuously rotation, Tilt range: 180°. Built-in thermostat and defogging devices, large power LED light source. IR distance: 50M at night. 2MP 1080P high definition, 20X optical zoom camera movement. Double ICR filter switch, automatic focus.


2. Vehicle intelligent terminal:

All interface adapts aviation integration interface, simple and safe. H.264 video compression format, the compression ratio is high, the image is clear. Support 4CH 1080P HD video input; support 3G, 4G, built-in GPS, intercom etc; support hard disk, max. 2T; Support WIFI extension; support automatic upload video instead of backup by people.


3. Control and display system:

The two-in-one design of keyboard and moniter is easy for installation and easy for controlling PTZ.It could control wiper and IR lights on/off by shortcuts. It’s saving space and install conveniently with few cables.


4. Mounting bracket:

Applicable to Pickups, Minibus Santana 2000, Passat, Changfeng Cheetah, Wuling van, Mitsubishi off-road vehicles, BYD electric carsand so on, according to customer requirements to be customized.


5. Application areas:

Applicable to the vehicle of road administration, traffic Public security and communications command( road, highway, fishery etc.)and other special purpose vehicle monitoring.can be used for forensic, emergency Rescue, field survey, construction operations, accident handling, emergency repair and other lighting conditions under poor environment.




HD Vehicle PTZ camera
Preset pan speed 100°/S
Preset Tilt speed 60°/S
PanTilt range 360°rotating,+90°~-90°
IR distance More than 50 meters
imaging sensor 1/2.8 inch CCD
Effective pixels 2.1 megapixels
Digital zoom 20X zooming
Control methods RS485,multi-protocol,Baud rate:2400Bps~19200Bps
Power supply DC10.5V~DC18V((AC24V optional)
Protection grade IP66
Items Equipment parameter performance index
System operating system LINUX
interface language Chinese,English,Portuguese,Russia,four language optional
Video Video input 1Ch 1080P GSM
VGA output 1CH ,Support 1920*1080 ,1280*720 ,1024*768 Resolution
CVBS output 1Ch aviation cable output PAL/NTSC,1.0Vp-p,75Ω,composite video signal
video display A single picture/Four-visual field
Video standards PAL :25 fps;NTSC:30fps
Audio frequency Audio input No
Hard Disk hard disk storage 1 SATA interface,2.5"Laptop hard disk, The max. storage is 2TB;
USB interface HOST interface 1 pc of front panel(Can be accessed by U disk backup video data or software upgrades)
Network interface wired access Can be extended 1 RJ45 interface, through the wired network browsing video, download and so on
  Wifi wireless access Built-in wifi module(IEEE802.11N/G/B), could realize wifi network browsing video and so on
  3G network Built-in WCDMA or CDMA2000 module, could realize remote viewing and so on
GPS interface GPS Built-in GPS,beidou,GNOLASS module,could realize vehicle positioning
Other expansion interface RS232 interface Extensible, easy to dock with other equipment in the car
RS485 interface Extensible, easy to dock with other equipment in the car and control PTZ camera
Two-way voice intercom Extensible,,could realize the front of the vehicle two-way voice intercom
power DC8-36V 5% ≤12W
Two-in one of keyboard display
LCD display 8in 16:9 LED display
Resolution 1280X960
Video input Two channels video input,1Vpp 75 ,BNC interface, 1CH VGA, NTSC/PAL System adaptive
Baud rate 1200Bps,2400Bps,4800Bps,9600Bps
Communication Interface RS-485
Controlled devices and presets 12
Controlled devices and presets 12
Controllable device type Vehicle PTZ,mobile lifter
PTZ shortcuts Z wipers, lights, preset positions and set the preset lifter up and down
Lifter the shortcut keys Up and down
Power DC10.5V~DC15V((AC24V optional)
