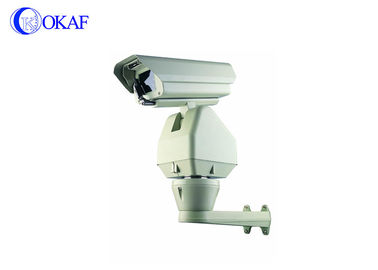

1080P 2MP Intelligent PTZ Camera Pole Mounted Infrared DC12V Power For Smart City

1080P 2MP Intelligent PTZ Camera Pole Mounted Infrared DC12V Power For Smart City
1080P 2MP Intelligent PTZ Camera Pole Mounted Infrared DC12V Power For Smart City

Large Image :  1080P 2MP Intelligent PTZ Camera Pole Mounted Infrared DC12V Power For Smart City

Product Details:
Place of Origin: China
Brand Name: Okaf
Certification: CE/FCC/RoHS
Model Number: OK-PG10PTZ
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard carton
Payment Terms: T/T, Paypal, Western Union, L/C, MoneyGram etc
Supply Ability: 2500pcs per month
Detailed Product Description
Weight: 7KG(net Weight) Double Stream: H.265/H.264
Resolution: 1080P Feature: 360 Degree Rotation
Power: DC12V Zoom: 20X Optical Zoom
Signal: IP/AHD/Analog/SDI Warranty: 1year
High Light:

hd pan tilt zoom camera


ptz full hd camera


Smart City Intelligent PTZ Camera 1080P 2MP Pole Mounted Infrared IP PTZ




Product feature:


This type is especially good for smart city.

1. The PTZ camera supports multiple machine cores, which can be selected for the collection of high-definition image images of network, SDI, TVI, CVI, AHD and analog core
2. With full digital control and flexible programming, the transmission system is designed in a simple and simple way, which can be quickly positioned and tracked continuously to realize the full range and blind spot monitoring
3. Maximum support 1080P @30fps
4. Support dual - yard stream and HD snapshot
5. Support multiple high - level platform access

6. The all-weather integrated high-speed cloud platform USES an American imported array laser, eliminates the laser divergence, the speckle synchronization camera multiplier, and realizes the maximized and uniform lighting
7. 3 w laser power, laser flare Angle of 40 °, 1 ° to easy night vision surveillance
8. The laser night vision is greater than 400 meters.
9. Implement camera, cloud platform, decoder, shield, wiper, automatic heater, window defrosting fog, sunshade hood combination
10. High - end motor, good stability, low noise

11. Strong wind resistance, stable operation and accurate positioning
12. Level 360 ° unlimited rotation, look up (+ 33 ° ~ 70 °)
13. Horizontal preset speed 100 ° / S, vertical horizontal preset speed 80 ° / S
14. Can set up 128 presets, 6 tour trails
15. Automatic cruise, horizontal scan, camera mode and title display can be set
16. To adapt to the working environment temperature 35 ℃ ~ + 55 ℃




Pan preset speed 120°/S(manual control 0°~80°/S)
Tilt preset speed 60°/S(manual control 0°~40°/S)
Pan range 360°
Tilt range +90°~-90°
Electric machinery stepping motor (belt gearing)
Preset positions 256 Preset positions
Control Way RS485(IP and SDI PTZ camera support RS485 and RJ45 dual- control protocol)
Baud rate 2400Bps~19200Bps
Control protocol Pelco-D/Pelco-P
Audio input/output Support
Alarm Input/ Output Support
Operating temperature -35°C~+65°C
IP Grade IP66
Power Supply DC10.5V~DC18V(5A)
Weight 7KG(net weight)
IP Chipest
  Model 20IP 30IP
Imaging sensor 1/2.8inch CMOS 1/2.8inch CMOS
Effective pixels 2 mega pixels 3 mega pixels
Lens 20X optical zoom f=4.7 -94.0mm (18.20.30X optional)
Frame rate 25FPS & 30FPS
Double stream H.265/H.264
SDK Docking standard ONVIF protocol, support SDK secondary development
SDI/AHD Chipest
Imaging sensor 1/2.5inch CMOS 1/4inch CMOS
Effective pixels 30X 3 mega pixels (decided by chipest) 36X 2 mega pixels (decided by chipest)
Frame rate 60FPS & 30FPS 30FPS
