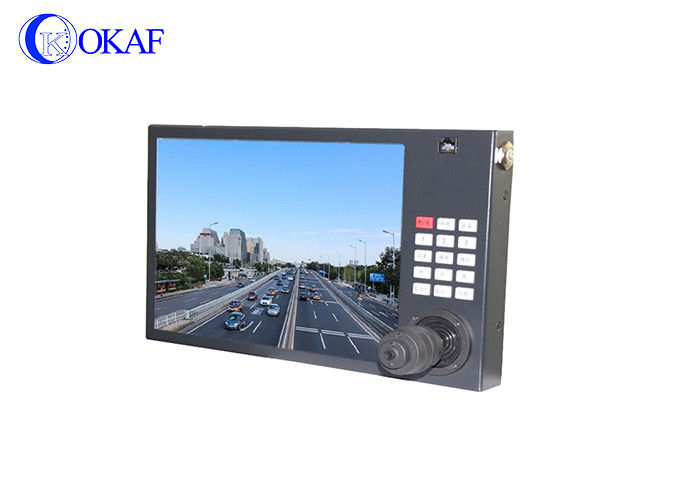

Joystick PTZ Camera Controller 10" HD LCD Display For Vehicle Mounted Camera

China Shenzhen Okaf Technology Co., Ltd. certification
China Shenzhen Okaf Technology Co., Ltd. certification
Customer Reviews
The mast is extended only about 6m right now to see how it performs. As I mentioned so far it has done great. The total weight supported by the mast is around 15kg so there is plenty of margin there. Just as a point of interest the mast and antenna system has already been exposed to a wind of around 48km/h and did just fine.

—— Joe W. Feusner

We received the goods, which are already in the test, which is more affordable than the mast we bought for the first time, but the test seems to be good without any problems.

—— Robert Labro

We still want to work with you to continue to buy mast products in your company. The first time we purchased the product was very good and there was no problem. The same is true for the second purchase of the mast, but the weight of the gimbal rotor seems to be too light. We hope to cooperate with you for the third time. But the problem we are cons

—— Pankaj

The products are very good, there are a lot of places that do not understand, the salesman has always been very cooperative with our work to help us achieve the results we need.

—— Tuan Nguyen

I am very satisfied with the production and delivery

—— pero baotic

I'm Online Chat Now

Joystick PTZ Camera Controller 10" HD LCD Display For Vehicle Mounted Camera

Joystick PTZ Camera Controller 10" HD LCD Display For Vehicle Mounted Camera
Joystick PTZ Camera Controller 10" HD LCD Display For Vehicle Mounted Camera

Large Image :  Joystick PTZ Camera Controller 10" HD LCD Display For Vehicle Mounted Camera

Product Details:
Place of Origin: China
Brand Name: Okaf
Certification: CE/FCC/RoHS
Model Number: OK-JP10NVR
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard carton
Payment Terms: T/T, Paypal, Western Union,, L/C, MoneyGram etc
Supply Ability: 2500pcs per month
Detailed Product Description
Installation Method: Vehicle Mount Operating Mode: Mouse
Button: 25 Buttons Design Power Supply: DC12V
Function: Pan/Tilt/Zoom Control Warranty: 1year
OEM/ODM: Welcome Advantage: LCD Screen+keyboard
High Light:

ptz camera control joystick


ptz camera keyboard controller


10" HD LCD Display PTZ Keyboard Controller Joystick For Vehicle Mounted





Product description:


1. Integration of Vehicle NVR,10" monitor and 4-dimensional keyboard makes it small volume, light weight and superior appearance.

2. Support 1 Channel 130 recording and play-back,Used for controlling PTZ camera,

3. 10" LCD resolution:1024*768

4. English keys and chinese display


5. It can set up and call the preset postions, 4 preset positions.

6. Support RS485 communication Pelco-D, Pelco-P Protocol,

7. It has shortcuts of Wiper,Infrared lamp,Temperature control,Capture,Up and Down etc. 8,Built-in 250G SSD(Solid state disk)

8. Support standard onvfi protocol.




Part.No   OK-JP10NVR
Operation System Embedded LINUX
Image encoding The picture quality can be adjusted
double code streams Each channel can be set
Resolution   1080P(1920×1080)3frames/sec/960P/(1280×960)/720P(1280×720)30frames/sec.
Image quality 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)
Image Dynamic Inspection can be set 6 level of sensitivity(need IPC support)
Image Playback quality 1X720P/960P,1/4 1080P 1080P playback
      Each path supports 4 zone block(need IPC support)
Video mode   Support manual, automatic, dynamic monitoring, alarm trigger video mode( some
  need IPC support)
backup mode

Support hard disk, U disk, USB mobile hard disk, USB burn, network storage




Operating mode Mouse
Local login   Username and password
    Network video
    (mode) 1×(1920*1080)+sub[960*576]+4Ref.+1Play 1CH 2.0MP IP camera
    Display Size 10inch HD,LCD;
Control   Interface RJ45,10M/100M adaptable ethernet interface
    other interface 2*USB 2.0port
    protocol ONVIF,RS-485
    SATA E-SATA/Mobile HD/USB flash disk
    Max.memory Each interface supports a hard disk with a maximum capacity of 4TB
Power Supply 12V2A
Power Consumption ≤10 Without hard disk)
Working Temperature -10℃~+55℃
Installation Method Vehicle mount
