Product Name: | Power Transmission Online Monitoring Low-power Intelligent 3- Eyes PTZ Camera | Power: | DV12V |
---|---|---|---|
Resolution: | 1080P | Zoom: | 20x /30x Optical Zoom |
Horizontal Angle: | 360° Continuous Rotation | Vertical Angle: | -90°~ 90° |
Intelligent Analysis: | Support Construction Machinery Identification (crane, Tower Crane, Excavator, Etc.), Personnel Intrusion Detection, Foreign Object Suspension, And Pyrotechnic Identification | Online Rotation Power Consumption: | <15W(Video Streaming, Recording, 4G Transmission, PTZ Control) |
Highlight: | taxi cctv camera,hd cctv camera |

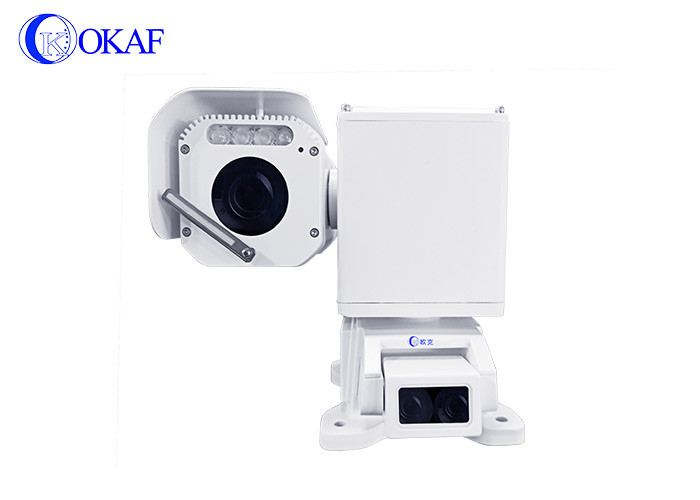

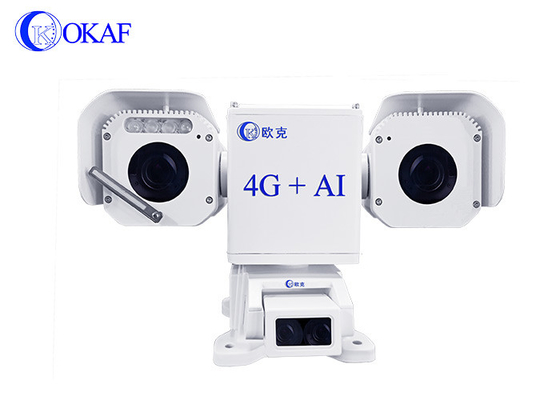

Power transmission online monitoring low-power intelligent 3- eyes PTZ camera
Features
● Industrial grade HD dual-sided four-eye camera and PTZ camera integrated design.
● With separate lenses for monitoring small and large dual side line channels and an optical zoom PTZ camera.
● Dual side line channels with both day and night vision lenses, which can collect high-definition full color image data for 24 hours
● Both sides of the camera angle support manual adjustment, support vertical adjustment, in order to adapt to the installation environment of up and down slopes
● The pixel of the line channel camera for monitoring daytime is not less than 16 million, and the image resolution is not less than 4608×3456
● Monitoring of line channel cameras at night using 1/1.8 starlight level cameras with no less than 2 million pixels and an image resolution of no less than 1920 x 1080.
● PTZ camera, optical zoom camera pixel is not less than 2 million, image resolution is not less than 1920*1080, optical zoom factor ≥ 20 times.
● AI intelligently supports the identification of construction machinery such as cranes, tower cranes, and bulldozers, supports foreign object detection, and supports wildfire and smoke identification.
● Supports huawei ATLAS200 AI acceleration module.
● Strong anti-electromagnetic interference ability, suitable for complex environments such as the power industry.
● Low power consumption design, support wide voltage input, suitable for solar power supply.
● High temperature 70℃, low temperature -40℃; protection performance meets IP67.
● Built in 4G all Netcom module.
● Support State Grid, China Southern Power Grid transmission protocols, the surveillance device can be equipped with a built-in security encryption chip for encrypted data transmission to guarantee the security of the data.
● Support SSD, TF card storage.
Application
Suitable for the power industry, urban roads and other places with low power consumption or solar power supply.
Technical data
Model | OK-CT80GR-3-IP | ||
PTZ camera | Image sensor | 1/3" CMOS | 1/1.8" CMOS |
Pixel | 2MP 1920(H)×1080(V) | ||
Zoom | 20x optical zoom | 32x optical zoom | |
illumination |
0.01 Lux color, 0.005Lux black & white |
0.002 Lux color, 0.0002Lux black & white |
|
Focus length | F5.4-108mm | F6-192mm | |
Horizontal field of view | 50.2-2.9° | 61.2-2.32° | |
automatic control | 5A:Auto white balance, auto focus, auto exposure, auto noise reduction, auto contrast enhancement | ||
Line channel camera | Day | 16 million pixels 4608(H)×3456(V) | |
Night | 1/1.8" CMOS 2MP 1920(H)×1080(V) | ||
PTZ function | Manual speed | Horizontal 0-20°/S;Vertical 0-20°/S | |
Preset speed | Horizontal 20°/S;Vertical 20°/S | ||
Horizontal angle | 360° continuous | ||
Vertical angle | -90°~ 90° | ||
Preset | 255 presets | ||
cruise scan | 8 groups of cruises | ||
3D position | Support | ||
Power outage recovery | Support | ||
telephoto speed limit | Support | ||
IR distance | 50m | ||
AI | Intelligent analysis | Support construction machinery identification (crane, tower crane, excavator, etc.), personnel intrusion detection, foreign object suspension, and pyrotechnic identification | |
Network | Access protocol | State Grid, China Southern Power Grid transmission protocols | |
video compression | H.264 | ||
Data storage | Automatic/manual recording, support TF card | ||
WIFI | Support | ||
GPS/Beidou | Support | ||
4G | Support all Netcom | ||
Safety | data encryption | Support hardware encryption (optional) | |
interface | RS485 control port | Support solar controller and IOT sensor (optional) | |
Network | 10/100M network adaptation,RJ45 adaptor (optional) | ||
General Specifications | Temperature | -40 - 70℃ | |
humidity | 0~90%(no condensation) | ||
Protection level | IP67 | ||
Weight | 5KG | ||
Dimension | Φ248×242mm | ||
Power supply | DC9-18V | ||
Online static power consumption | <0.2W | ||
Online collection of power consumption | <5W (Video streaming, recording, 4G transmission) | ||
Online rotation power consumption | <15W(Video streaming, recording, 4G transmission, PTZ control) |
