Payment & Shipping Terms:
|Feature:||Mobile Surveillance /Temporary Surveillance||Support:||Remote Control & Real Time Viewing In Command Center|
|Applications:||Construction Sites, Oil And Gas Site Security, Airports Security||Camera Pole:||3.5m Telescopic Mast ( 3 To 6m Customized Available)|
|CCTV Camera:||HD PTZ IP Camera, 1920*1080P, 2MP, 20x Optical Zoom||Power Supply:||Battery Power ( 2~ 3 Days Running Time)|
AC220V Mobile CCTV Camera Trailer,
AC220V Mobile Surveillance Trailers,
3.5m Telescopic Mast Mobile Surveillance Trailers
Construction Site Monitoring Security Camera Mobile Sentry CCTV Surveillance Trailer 3.5m

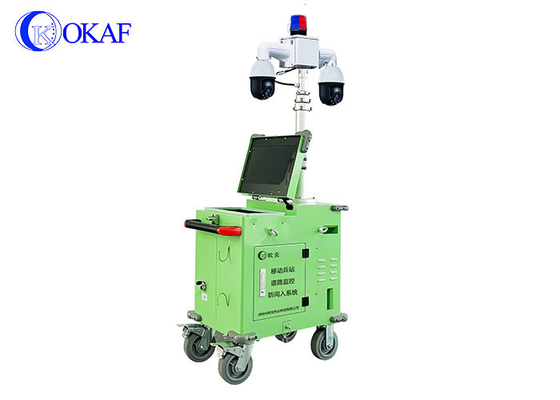

Specification of Mobile Sentry Security Trailer
OKAF Mobile cctv camera trailer is fitted with 2 of HD PTZ cameras, 4G transmission system, lifting system , battery power system. All live and recorded footage is accessed via 4G LTE connectivity, so users can remotely access the cameras any time from any device.
It takes just minutes to install the OKAF CCTV Trailer at your locations, and it can easily be moved as your applications change. It is an ideal surveillance solution for locations without any fixed infrastructure for power or video transmission.
Our Mobile surveillance trailer is an autonomously-powered surveillance trailer that can be rapidly deployed at practically any location, providing security for construction job sites, parking lots, public events or any off-grid location that requires video monitoring.
Applications of Mobile Sentry Security Trailer:
♦ Construction site security
♦ Oil and Gas site security
♦ Road construction monitoring
♦ Traffic monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
♦ Vacant property management
♦ Border security
♦ Business and parking lot security
♦ Public events safety
Advantages of OKAF Mobile Sentry CCTV Camera Tower
• All in one design, no need to disassemble, easy to install and use, easy to operate.
• Rapid deployment, one person can complete the system erection in 2 minutes,meet emergency need.
• 4G, WIFI and LTN multiple signal transmission modes, data transmission is safe and smooth.
• Real time video and voice recording.
• Automatic lifting mast, full coverage at high and low levels, eliminating monitoring blind spots.
• Powerful endurance, the system could run for 5-7 days when full charge.
• A variety of anti-theft measures, built-in GPS positioning system.
• Support PTZ control, Keep abreast of the scene environment anytime.
• Battery power supply, solve ths issue that the site is difficult to get power supply.
|Camera||Camera type||IP PTZ camera|
|Resolution||1920*1080 @ 30fp|
|Optical zoom||20x /30x optical zoom optional|
|Camera rotation angle||360° horizontal continuously rotation|
|-15°~ +90°Vertical rotation|
|Network port||RJ45 10Base-T/100Base-TX PoE(IEEE802.3af|
|Video Transmission & storage||Video input||4 channel network 1080P, aviation interface|
|Video output||1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω|
|Preview function||Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function|
|Video resolution||Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P|
|Audio input||4channel, Aviation interface|
|Alarm Output||2-way switch output, linked audible and visual alarm, oil and power off, etc.|
|communication interface||2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc.|
|2 way 485 interface, can extend PTZ|
|2-way CAN bus interface|
|Wireless transmission||Support built-in 3G wireless transmission function, WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE|
|Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE|
|Position||Support built-in GPS / BD module, can report to the platform|
|Hard disk||Support large capacity 2.5-inch hard disk (maximum 2T)|
|Trailer body & Mast||Material||Metal|
|Extended Height||3.5m ( 3 to 6m available)|
|Lifting||Manual or pneumatic|
|Local viewing||With monitor for local viewing|
