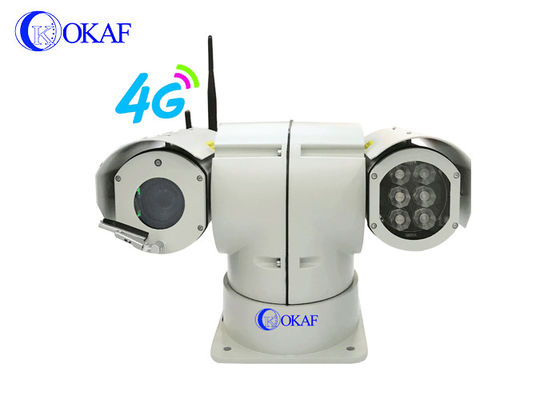

RS485 4G CCTV CMOS Vehicle Mounted PTZ Camera 100m IR

RS485 4G CCTV CMOS Vehicle Mounted PTZ Camera 100m IR
RS485 4G CCTV CMOS Vehicle Mounted PTZ Camera 100m IR

Large Image :  RS485 4G CCTV CMOS Vehicle Mounted PTZ Camera 100m IR

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE/FCC/ROHS
Model Number: OK-CT100GR-20IP-4G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negociate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days after order confirmed
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 2000 units/ month
Detailed Product Description
Product Name: 4G CCTV Security Vehicle Mounted PTZ Camera 100m Infrared IR Night Vision Function: 4G Transmission/ Remote Surveillance
Resolution: 1920*1080P High Definition Zoom: 20x /25x /30x Optical Zoom
Camera Type: IP PTZ Camera Night Vision: 100~150 Meter
Waterproof: IP66 Waterproof Warranty: 1 Year
Material: Anti Shock Aluminum Alloy
High Light:

RS485 Vehicle Mounted PTZ Camera

,

CMOS Vehicle Mounted PTZ Camera

,

100m IR Night Vision PTZ Camera

4G CCTV Security Vehicle Mounted PTZ Camera 100m Infrared IR Night Vision



Specification

• High strength alloy aluminum crust, shock resistance, corrosion protection in all weather conditions.

PTZ has super seismic characteristics, this system is especially good for Vehicle monitoring or prison monitoring.

PTZ has a built-in decoder, integrate multiple protocols.

360°Continuously rotation, no bilnd angle surveillance.

Vehicle power voltage input range: DC10.5V~DC18V. Perfect for all kinds of vehicle, car, truck and robots.

Built-in Defrosting and Defogging devices,which ensures the normal use in temperature difference environment.

Acceptable to a variety signals of PTZ ,IP/SDI/AHD/TVI/CVI/Analog.

• Network PTZ supported network and analog dual-outputs, dual control, via RS485 and RJ45 network port.

• With infrared LED range up to 150 meters night vision. It could catch image promptly at night.

• Supporting coordinates and angles to accept instructions.

• Camera with WDR option for better image, WDR( Wide Dynamic Range) 120dB.

• 1/2.8" CMOS 4.7~94.0 mm 20x optical zoom 2.0MP, 1920*1080P. More clear image.

Built in 4G module, 4G transmission, support real time viewing & control.



 Technical Data

Model OK-CT100GR-20IP-4G OK-CT100GR-30IP-4G
Data of PTZ camera Image sensor 1/2.8 type Exmor CMOS 1/2.8 type Exmor CMOS
Pixel 2.0 Megapixel 2.0 Megapixel
Resolution 1920*1080 1920*1080

Minimum

illumination

0.095lx(F1.6. ICR ON) 0.095lx(F1.6. ICR ON)
Lens zoom 20X Optical zoom 30X Optical zoom
Focus f=4.7mm~94.0mm f=4.5mm~135.0mm
Ajustment white balance,automatic gain control AGC,BLC white balance,automatic gain control AGC,BLC
SNR ≥50 db ≥50 db
Electronic shutter 1/1s- 1/10000s 1/1s- 1/10000s
Port function Network port RJ45 10Base-T/100 Base-TX PoE(IEEE802.3af) RJ45 10Base-T/100 Base-TX PoE(IEEE802.3af)
  Hikvision,Sony,Samsung,Hitachi,and other brands HD Camera chipest
4G Function Built in 4G module, 4G transmission, support real time viewing & control.
Video video compressor H.264 / H.265
Image pixel 1080P 25/30P
Night vision Lighting 850nm IR infrared
vision distance 120m 150m
Camera data Horizontal range 360° rotation
Horizontal speed 0~120°
Vertical range +90°~-25°
Vertical speed 0~10°/S
Preset 256 preset positions
Cruise 8 pcs cruise
IP rate IP66 protection
Other feature work temperature -35℃~+55℃
Power supply DC10.5V~DC16V
weight 7.0kg



Dimension of OK-CT100GR

Size



Applications

OKAF 4G Vehicle PTZ camera  has been widely applicable to the field of Police, highways, urban management , Law enforcement vehicles, fire fighting truck,Highways,secondary planet communication directorial vehicle, Train and other special vehicle monitoring, Top Mounting, it can be used to obtain evidence, emergency rescue, scene investigation,Construction work, accident treatment, rescue and emergency illumination such as in the bad lighting conditions environment.

RS485 4G CCTV CMOS Vehicle Mounted PTZ Camera 100m IR 1



Application-2
