Product Details:
Payment & Shipping Terms:
|
| Advantage: | Anti Shaking | Pixel: | 2.0 Megapixel |
|---|---|---|---|
| Optical Zoom: | 20x | Material: | Aluminum Alloy |
| IR Night Vision: | 60m | Power Of IR Light: | 5W*2 |
| Network Port: | RJ45 Network Port | Protection Grade: | IP66 |
| Highlight: | vehicle mounted cctv cameras,pan tilt zoom camera |
||

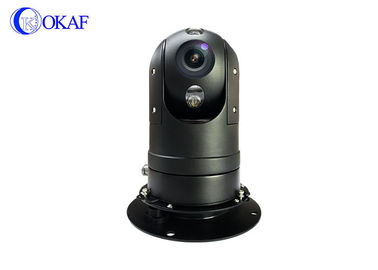

Vehicle PTZ Camera Anti Shaking for Car Dynamic Forensics System
Feature
♦ Support kinds of resolution IP camera max 2.0 megapixel.
♦ Support IP and analog dual signal output.
♦ Support dual control. PTZ and camera zoom Could be controlled by RS485 and RJ45 network.
♦ Built in defrost and defogging device. Can be work well even the temperpature change suddenly.
♦ Support coordinate display and angle acceptance instructions.
♦ Aluminum material, Shockroof, anti-corrosion.
| Model | OK-CQ50DM-20IP | |
| Data of camera | Image sensor | 1/2.8 type Exmor CMOS |
| Pixel | 2.0 Megapixel | |
| Resolution | 1920*1080 | |
|
Minimum illumination |
0.095lx(F1.6. ICR ON) | |
| Lens zoom | 20 Optical zoom | |
| Focus | f=4.7mm~94.0mm | |
| Ajustment | white balance,automatic gain control AGC,BLC | |
| SNR | ≥50 db | |
| Electronic shutter | 1/1s- 1/10000s | |
| Port function | Network port | RJ45 10Base-T/100 Base-TX PoE(IEEE802.3af) |
| Movement | Hikvision,Sony,Samsung,Hitachi,and other brands HD Camera chipest | |
| Video | Video compressor | H.264 / H.265 |
| Image pixel | 1080P 25/30P | |
| Night vision | Lighting | 850nm IR infrared |
| Night distance | vision distance | 60m |
| PTZ camera data | Horizontal range | 360° rotation |
| Horizontal speed | 0~120° | |
| Vertical range | +90°~-25° | |
| Vertical speed | 0~10°/S | |
| Preset | 256 preset positions | |
| Cruise | 8 pcs cruise | |
| IP rate | IP66 protection | |
| work temperature | -35℃~+55℃ | |
| Power supply | DC10.5V~DC16V | |
| weight | 3.5kg | |
Application of vehicle roof mounted ptz camera
Vehicle mounted camera solution can be deployed where a rapid security response is required.
It is widely applied on vehicle, marine surveillance, law enforcement vehicle,emergency vehicle, fire control vehicle, ambulance vehicle. It is great solution for mobile surveillance.
You can view real time video on local or on computer by OKAF software. With 4G transmission, you could realize remote command.
