Product Details:
Payment & Shipping Terms:
|
| Robot Dimension: | 875 X 675 X 1270mm | Robot Weight: | 105 Kg |
|---|---|---|---|
| Shock Absorption Method: | Four-wheelindependent Suspension | Maximum ObstacleClearance Height: | 60mm |
| Maximum Climbingheight: | 15° | Remote Control Speed: | 2m/s |
| Confiqurable External Communication: | Wifi/4G/5G | Detection Sensor: | Thermal Imaging, Temperature, Humidity Smoke Sensors |
| Battery Life: | 8 Hours/48V30Ah | Charging Mode: | Automatic Charging |

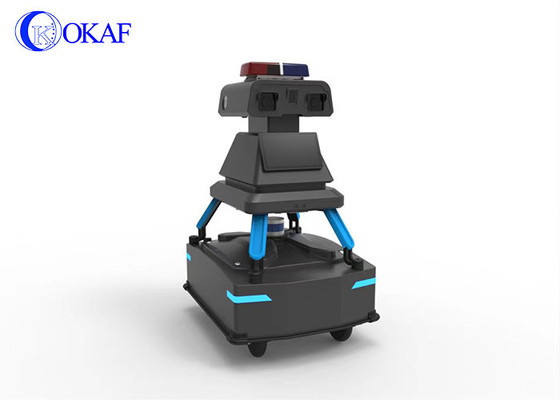

Remotely Control Autonomous Intelligent Robot Security Inspection Patrol Robot Image Recognition Inspection Robot
Robotic System Framework
OKAF security robot system mainly includes two parts: the robot end and the background management system . The robot end includes the robot bodyand charging pile; the background management system includes the RMSserver, computer control terminal and mobile phone APP. The two are interconnected through Wi-Fi /4G/5G networks.
Robot function description
|
System
composition
|
subsystem
|
Function Description
|
|
robot side
|
robot body
|
1. Realize the main functions of the robot body, such as autonomous walking, autonomous charging, panoramic monitoring, etc.
2. Support optional loading of other sensors or forensics equipment.
|
|
Charging pile
|
Used for robot charging.
|
|
|
background
management
system
|
RMS server
(cloud server
or build client
server)
|
1. The RMS server is the information processing platform of therobot system, which has functions such as robot management, task scheduling, data storage, data analysis, and user authority
management .
2. RMS server can be deployed in local area network or Internet cloud
|
|
control
terminal
|
1. The control terminal interacts with the robot through the server,
and is the command input terminal of the robot, as well as the
information display terminal of the robot .
2. Maintenance and management personnel can set patrol tasks for
robots, broadcast and explain tasks through the terminal, remotely
control robots, adjust robot parameter settings, and view real-time
and historical monitoring videos, environmental information, and
alarm records.
|
|
|
Mobile APP
|
You can view the robot data overview, set some robot parameters,
and use some functions (such as real-time remote control function
and remote call function)
|
