| Product Name: | Fireflighting Robot Mobile CCTV Surveillance With IP PTZ Camera Telescopic Mast | Special Features: | Waterproof / Weatherproof |
|---|---|---|---|
| Sensor: | CMOS,CCD | Type: | IP Camera |
| Technology: | Pan / Tilt / Zoom | Color: | Customized |
| High Light: | Firefighting CCTV Surveillance Trailers,1.3km CCTV Surveillance Trailers,CMOS Mobile Security Camera Tower |
||

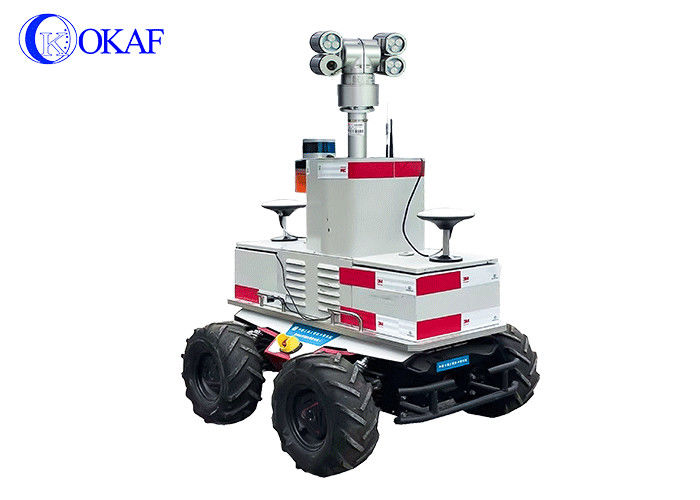

Fireflighting Robot Mobile CCTV Surveillance With IP PTZ camera Telescopic Mast
1. Equipped with vehicle mounted PTZ IP camera, real-time high definition monitoring of the front image
2. High performance thermal imaging camera, pinpoint the source of the fire, automatic fire detection,fire tracking
3. Equipped with automatic lifting platform, elevate the thermal imaging range
4. Equipped with lightweight handheld remote control
5. When the body temperature above 60℃,automatically turn on the spray system to cool down
6. Real-time display of distance from obstacles and avoid obstacle intelligently
7. The remote control has a large LCD screen, high definition, avoid sun glare, it can be controlled wirelessly from a distance
8. It can detect the O2,H2S,SO2,NH3,CO,CL2 concentration in the surrounding environment, when the concentration exceeds the limits to send an alarm signal
9. The car body lithium battery can be quickly filled within 4h High speed / inertia ratio up to 25000Nm/kgm2 Fast dynamic response, time constant less than 20ms Wide range of speed regulation, feedback up to 1000:1 Stable speed accuracy of 0.5% Large overload capacity 2Mn/30s, 35Mn/10s
Small size and light weight, only 1/3 of AC motor Silent, the lowest noise is only 45dB (A) IP65 protection class with Class F insulation.
Technical data of Robot
| Tractive ability | 3600N |
| The barrier height | 200 mm |
| Grade ability | 46.6% |
| Endurance time | 5 h |
| Working hours | 24 h |
| Turing radius | in-situ rotating |
| Control mode | wireless remote control |
| Communication distance | 1.3km |
| IP rating | IP65 |
| Insulation class | F |
| Boundary dimensions | 1850 x 1060 x 1060 mm |
| Wood case dimensions | 1960 x 1180 x 1300 mm |
| G.W./N.W. | 580/468.8 kg |
Technical data of Pan Tilt PTZ camera
| PTZ Camera Parameters | |
| Pan preset speed | 60°/S(manual control 0°～60°/S) |
| Tilt preset speed | 30°/S(manual control 0°～30°/S) |
| Pan range | 360° |
| Tilt range | ＋90°～－90° |
| Electric machinery | stepping motor (worm and gear) |
| Preset positions | 256 Preset positions |
| Control Way | RS485(IP and SDI PTZ camera support RS485 and RJ45 dual- control protocol) |
| Baud rate | 2400Bps~19200Bps |
| Control protocol | Pelco-D/Pelco-P |
| Chroma | 850nm |
| Search lighting Distance | 200m |
| light power | 10W*9pcs LED total 90W |
| Audio input/output | Support |
| Alarm Input/ Output | Support |
| Operating temperature | －35°C~＋65°C |
| IP Grade | IP66 |
| Power Supply | DC10.5V~DC16V(6A) |
| Weight | 10KG(net weight) |
| Optical zoom | 20x Optical zoom |
| Imaging sensor | 1/2.8inch “Exmor”CMOS |
| Effective pixels | 2.0 mega pixels |
| Lens | 20X optical zoom f=4.7 -94.0mm |
| Min.illumination | 0.095 lUx (F1.6,ICR open) |
| Frame rate | 25FPS & 30FPS |
| Double stream | H.265/H.264 |
| SDK Docking | standard ONVIF protocol, support SDK secondary development |
Technical data of Telescopic mast
| Extended height | 2.5 m |
| Retracted height | 0.8 m |
| Max diameter | 83 mm |
| Top payload weight | 20 kg |
| Number of section | 4 |
| Items | Test condition |
|
Anti-wind capability |
Level 8 wind: work normally; level 12 wind: can not be destroyed (working condition, nailed into the ground, 3-4 guy wires, pull angle: 30-40 degrees, the guy wire is tight). GJB74A-1998 3.13.13 |
| Low tempertaure storage | -55° |
| Low tempertaure working | -40° |
| high temperature storage | 70° |
| high-temperature working | 55° |
| Humidity | less than 90%(temperature 25°) |
| Exposed to the rain | Strength 6mm/min, the time of duration is 1 hour |
| Antiseptic | Refer to GJB150.11A-2009 Standard test |
| Dust-proof | Refer to GJB150.12.1986 Standard test |
| Solar radiation | Refer to GJB150.7.1986 Standard test |
| Mould | Refer to GJB150.2.1986 the second chapter standard inspection. Mildew-growing level: level 1 |
| Operating | Pneumatic Mast |
| Level of rotation speed | 6r/min |
| Wind Power | 66Km/h |
| Material | aluminium alloy |
| Security | Self-locking at any height; would not fall at any time |
