20m Winch Motorized Telescopic Antenna Mast Vehicle Mounted

20m Winch Motorized Telescopic Antenna Mast Vehicle Mounted
20m Winch Motorized Telescopic Antenna Mast Vehicle Mounted

Large Image :  20m Winch Motorized Telescopic Antenna Mast Vehicle Mounted

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE/FCC/ROHS
Model Number: OK-DD05SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negociate
Packaging Details: Standard export wood box
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 units/ month
Detailed Product Description
Product Name: 4 To 20m Electric Winch Motorized Telescopic Antenna Mast Vehicle Mounted Mobile Light Tower Material: High Strength Aluminum Alloy
Extended Height: 5m ( 3 To 20m Available) Retracted Height: 1560mm
Top Payload Weight: 25kg (55lb) Lifting Way: Electric Winch
Control Way: RS485 Wired Control Or Wireless Remote Control Warranty: 1 Year
High Light:

Winch Telescopic Antenna Mast

,

Motorized Telescopic Antenna Mast

,

Vehicle Mounted Mobile Light Tower

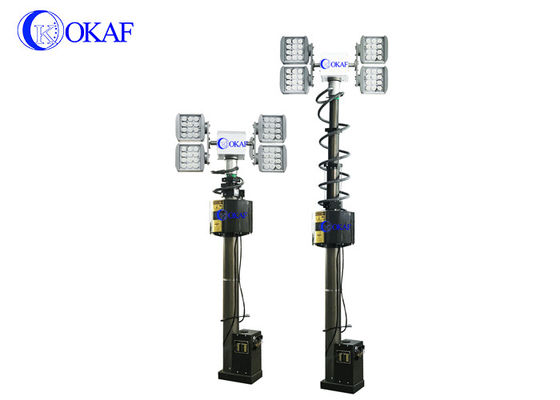

4 to 20m Electric Winch Motorized Telescopic Antenna Mast Vehicle Mounted Mobile Light Tower



Features of electric telescopic mast

Telescopic masts perfect for fast deployment of telecommunication ,PTZ camera surveillance ,emergency lighting devices to a certain height in the air (range from 3 to 20m), which offer an elevation solution with different payload capacity (range from 2kg -100kg)



OKAF motorized telescopic mast material is aluminum alloy, It is widely applied to radio facilities, monitoring and illumination systems in public works and military installations, radio amateurs, in metrology and other fields. What's more, we are able to offer special solutions for non-standard applications.



Our telescopic mast electric has same advantages as manual telescopic mast, it can be operated electrically or manually, and it can be self-locking at any position.



The mechanical nature allows partial extension of the mast when desired and provides powered retraction for extreme wind or ice conditions. Long periods of extension are commonplace.the ability to continue to maintain mast extension is a primary benefit.



Technical data
Model OK-DD05SJ OK-DD06SJ OK-DD08SJ OK-DD10SJ
Extended height 5meter 6 meter 8meter 10meter
Retracted height 1.6m 1.5m 1.8m 2.2
Maximum diameter 80mm 80mm 106mm 106mm
Minimum diameter 40mm 40mm 40mm 40mm
Top payload 25kg 20kg 20kg 15kg
Number of sections 4sections 4sections 6 sections 6 sections
Wind power Level 8/19m/SEC
Torsion precision ≤±2º
Power supply DC12V /DC24V for all kinds of vehicles/ trucks/trailer
Installation Vehicle mounted / ground mounted by tripod
Control way RS485 wired or wireless remote control
Low temperature storage -55℃

Low temperature work

-40℃

High temperature storage

70 ℃

High temperature work

55℃
Humidity Relative humidity 90%(temperature 25℃)
Rain

6mm/min continuous 1h

Rated load

Lifting ≤120N

Lifting speed

Average speed 4m/min

Safety

Self-locking at any height

Accessories Flange, Guy wires, ground anchors



Application of OKAF Electric winch telescopic mast

1.Wi-Fi antennas.

2. Temporary communications.

3. Emergency services (Light tower for fire fighting rescue)

4. Mobile surveillance ( PTZ camera for law forensics)

4. Radio installation Surveying

5. Semi-permanent Installations for outdoor Events(Military or patrol surveillance)

6. Construction site surveillance( Telescopic Mast for mobile CCTV trailers for construction sites monitoring)

MAST

Production
